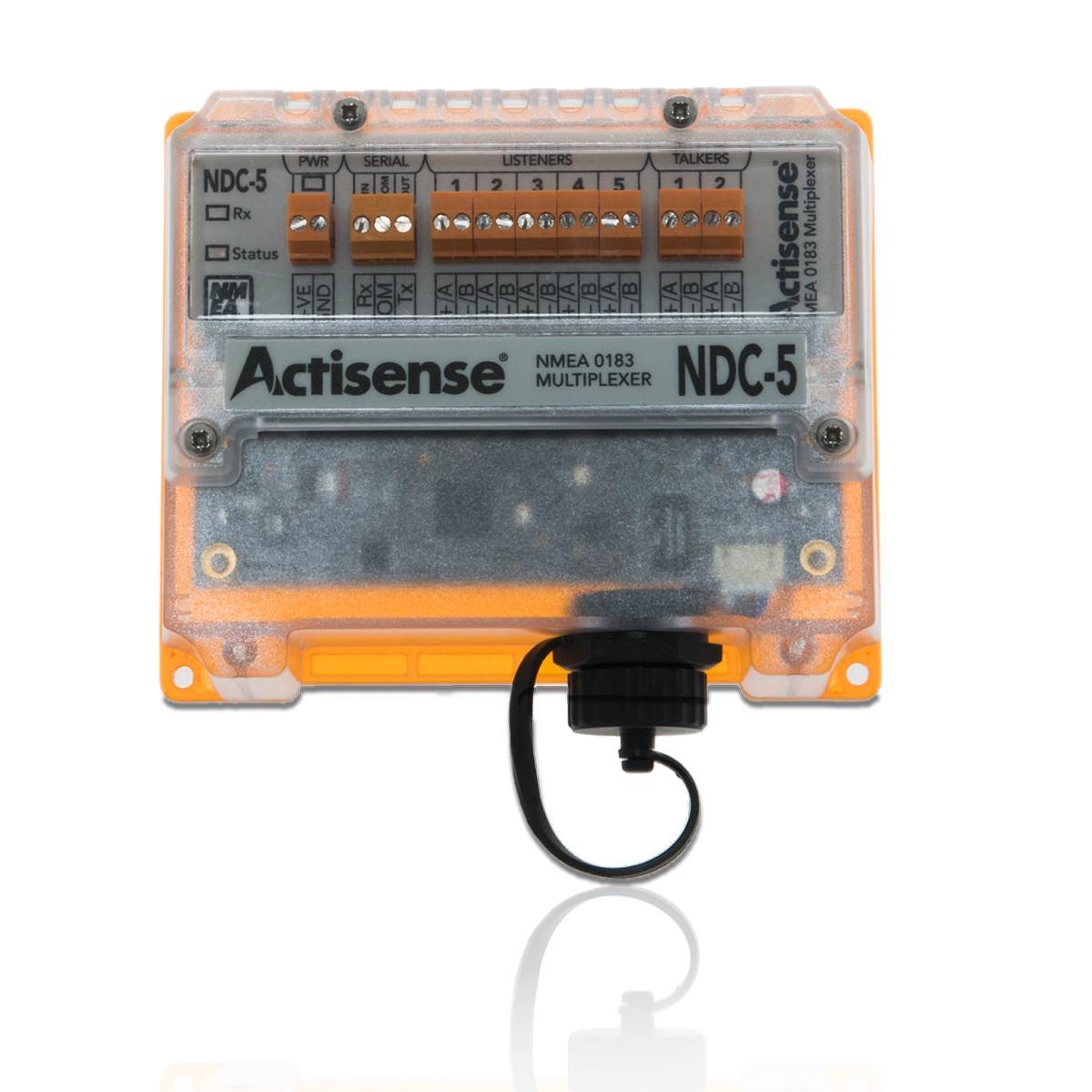

Actisense NDC-5 NMEA Multiplexer
Home / Equipment catalogue / Instruments & Networks / Actisense NDC-5 NMEA Multiplexer
Actisense · Code ACT NDC-5
NMEA 0183 · Data routing
Model archive · Technical support & upgrades
Instruments & Networks
Discover the product
The Actisense NDC-5 combines NMEA 0183 data from five inputs into two outputs, with routing and filtering options. Configuration is performed from a browser over Ethernet. The range has been discontinued and the manufacturer identifies PRO-NDC-1E as its successor.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
NMEA 0183 · Data routing
Interface:NMEA 0183
Technical specifications
Equipment type
Multiplexers NMEA 0183
Power supply
9–35 V DC
Inputs NMEA 0183
5 isolated inputs
Outputs NMEA 0183
2 isolated outputs ISO-Drive
Serial port
1 additional bidirectional port
Ethernet
10/100BaseT, RJ45
Maximum current at 12 V DC
110 mA
Dimensions
127 × 106 × 48 mm (Μ × Π × Υ)
Weight
230 g with terminals and cover RJ45
Operating temperature
−15 to +55 °C
Model archive
Model with a newer version
We retain these details to identify existing equipment, provide technical support and help select a suitable upgrade.
Newer model:PRO-NDC-1E. Confirm compatibility with us before upgrading.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
