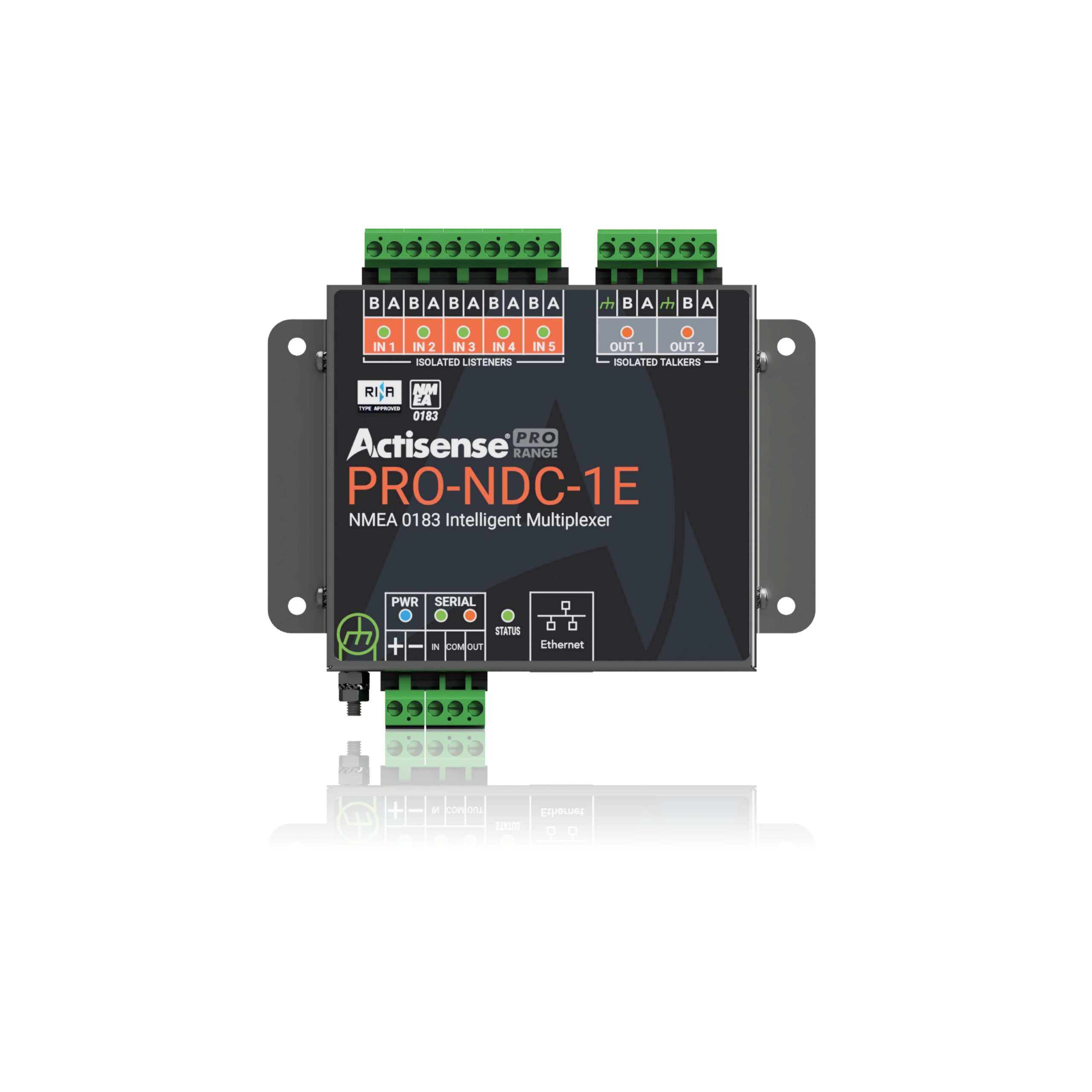

Actisense PRO-NDC-1E
Home / Equipment catalogue / Instruments & Networks / Actisense PRO-NDC-1E
Actisense · Code PRO-NDC-1E
NMEA 0183 · Ethernet · Data routing
Instruments & Networks
Discover the product
Actisense PRO-NDC-1E multiplexer with five isolated NMEA 0183 inputs, two ISO-Drive outputs and Ethernet. Supports data routing, sentence filtering and browser-based configuration.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
NMEA 0183 · Ethernet · Data routing
Interface:NMEA 0183 · Ethernet
Technical specifications
Equipment type
Multiplexers NMEA 0183
Power supply
9–35 V DC
Inputs NMEA 0183
5 isolated inputs
Outputs NMEA 0183
2 isolated outputs ISO-Drive
Serial port
1 additional bidirectional port
Ethernet
10/100BaseT, RJ45
Maximum current at 12 V DC
150 mA
Dimensions
139 × 129 × 26,5 mm (Π × Υ × B)
Weight
360 g
Operating temperature
−25 to +70 °C
Enclosure protection
IP40
Enclosure material
Stainless steel 316
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
