Airmar P19-DO-BL-D
Home / Equipment catalogue / Fishfinders & Sonar / Airmar P19-DO-BL-D
Airmar · Code 31-392-2-01
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product

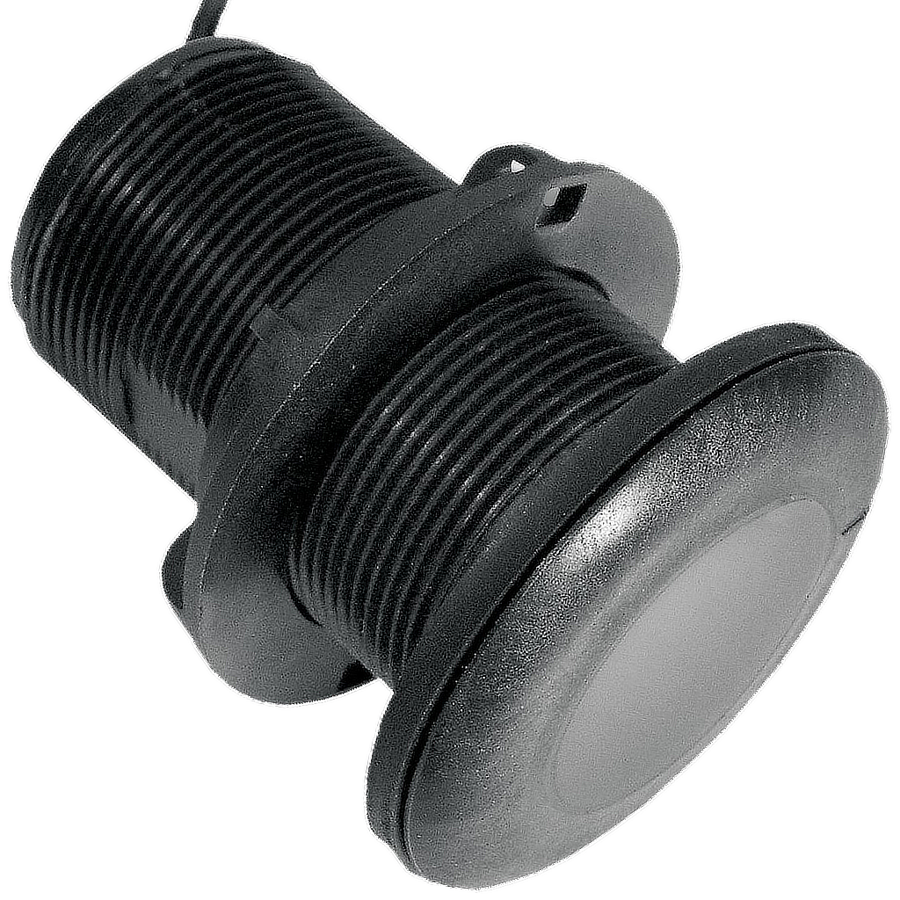

Airmar sensor P19-DO-BL-D for connection to a compatible fishfinder or sonar. Measures depth and water temperature. This version has a power rating of 375 W, connector Lowrance 7-Pin. Version selection details: display connection 8G, cable length 12 m (40').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature
Technical specifications
Equipment type
Depth transducers
Series
P19
Measurements
Depth, Temperature
Transducer power
375 W
Frequency band
50/200 kHz
Frequency technology
Conventional Single Frequency
Mounting
Tilted Element Through-hull
Material
Plastic
Connector
Lowrance 7-Pin
Display connection
8G
Cable length
12 m (40')
Hole diameter
51 mm (2")
Hull material
Fibreglass or metal
Maximum depth under suitable conditions
206 m (675')
Beam
11°
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
