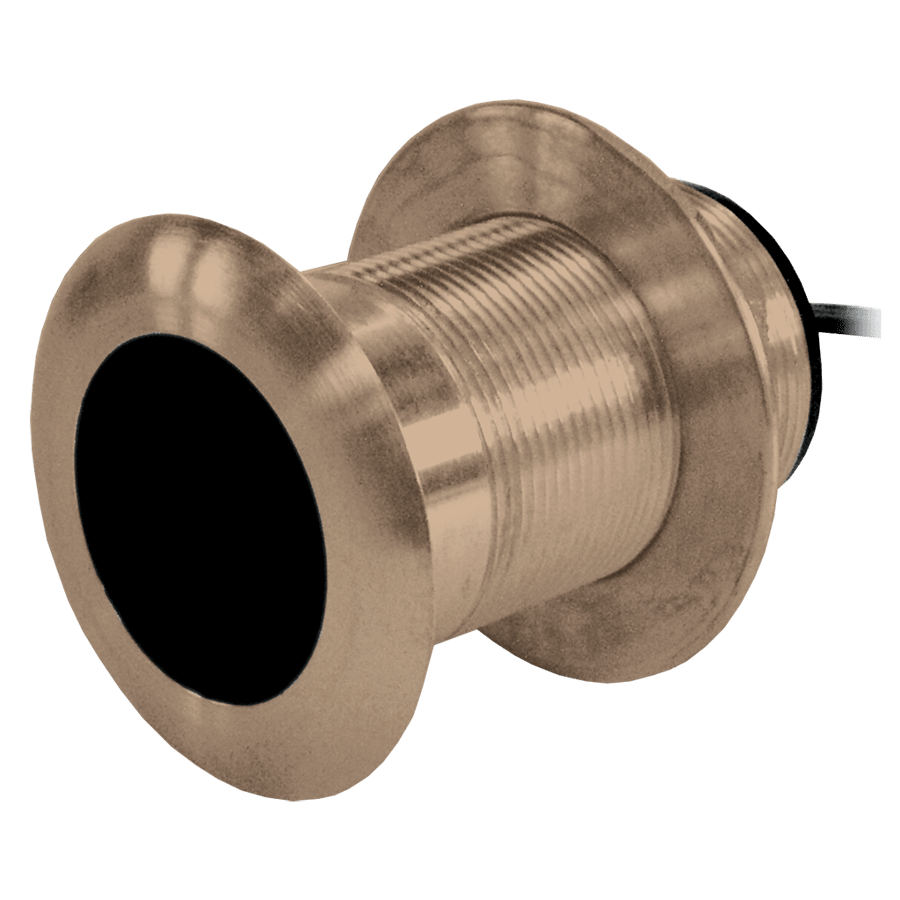

Airmar B150C-0-M-9N
Home / Equipment catalogue / Fishfinders & Sonar / Airmar B150C-0-M-9N
Airmar · Code 31-825-1-02
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor B150C-0-M-9N for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 300 W, medium band 95-155 kHz, element tilt 0°, connector Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin. Version selection details: deadrise range 0° to 7°, cable length 10 m (33').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
B150
Measurements
Depth, Temperature
Transducer power
300 W
Frequency band
Medium
Medium frequency
95-155 kHz
Frequency technology
CHIRP-Ready Single-Band
Element tilt
0°
Deadrise
0° to 7°
Mounting
Tilted Element Through-hull
Material
Bronze
Connector
Simrad 9-Pin, Lowrance 9-Pin, Navico 9-Pin
Display connection
9N
Cable length
10 m (33')
Hole diameter
51 mm (2")
Hull material
Fibreglass or wood
Maximum depth under suitable conditions
183 m (600')
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
