Airmar WS-C10-HTR
Home / Equipment catalogue / Instruments & Networks / Airmar WS-C10-HTR
Airmar · Code 33-1167-01
Cables & Connections
Instruments & Networks
Discover the product

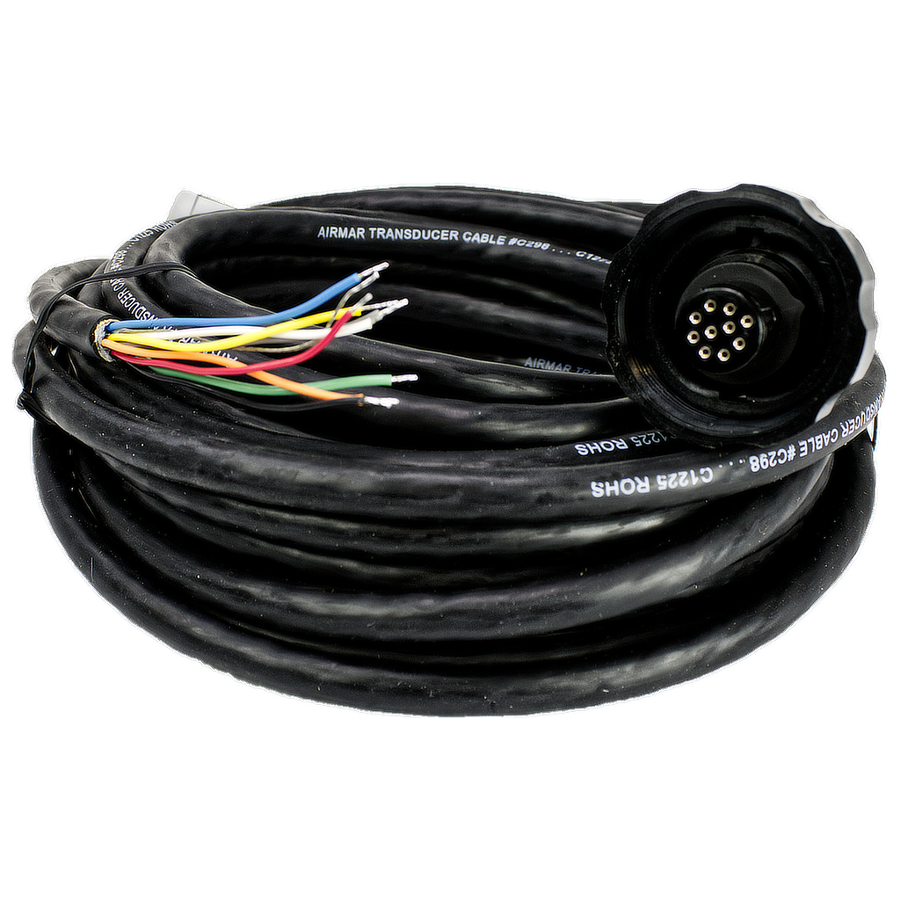

Airmar WS-C10-HTR cable (33-1167-01) for a heated WeatherStation with NMEA 0183 connection. The sensor end has a 10-pin female connector (10F-A). The other end has bare wires for data and power. Wire according to diagram D-21287.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Interface:NMEA 0183
Technical specifications
Equipment type
Cables & Connections
Connector
10-pin female (10F-A), WeatherStation end
Transducer connection
10-pin female (10F-A), WeatherStation end
Cable length
10 m (33')
Communication
NMEA 0183
Version / application in the original catalogue
Cable Heater* Nmea0183 10M NC
Display connection
Bare wires, no connector
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
