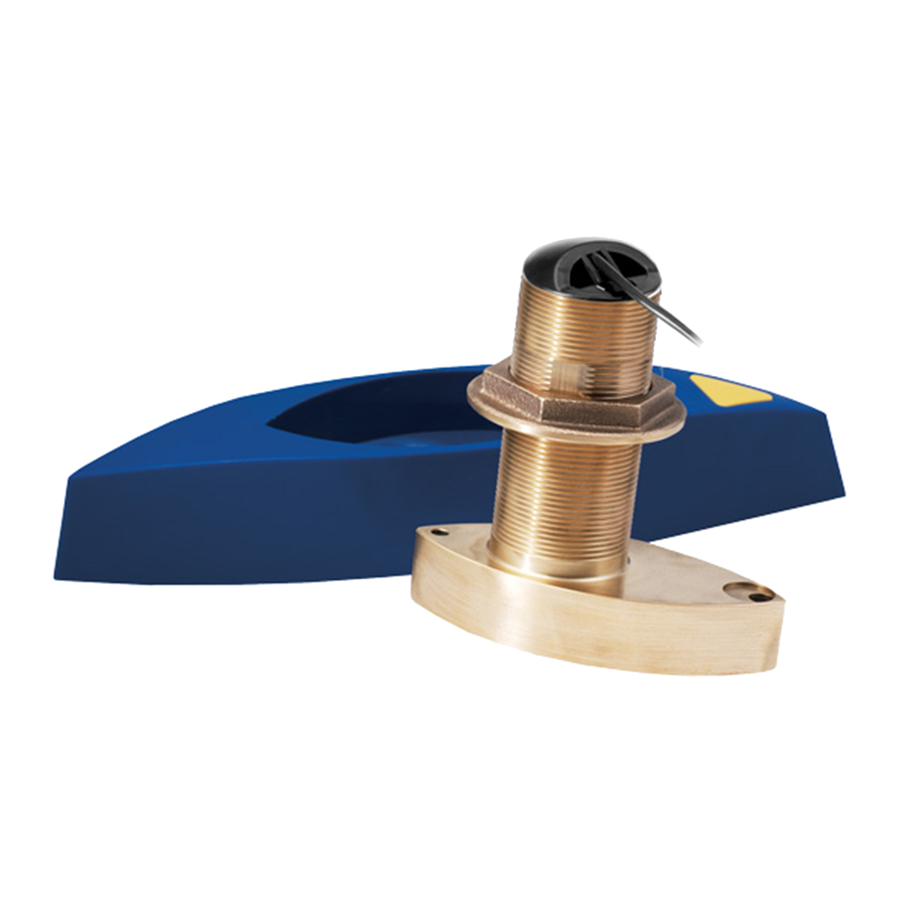

Airmar B765C-LH-MM
Home / Equipment catalogue / Fishfinders & Sonar / Airmar B765C-LH-MM
Airmar · Code 41-460-2-01
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor B765C-LH-MM for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 300W L/600W H, high band 130-210 kHz, low band 40-75 kHz, connector Airmar 12-Pin (MMC). Version selection details: deadrise range Up to 25° with fairing, cable length 9 m (30').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
B765
Measurements
Depth, Temperature
Transducer power
300W L/600W H
Frequency band
Low-High
High frequency
130-210 kHz
Low frequency
40-75 kHz
Frequency technology
CHIRP-Ready Dual-Band
Deadrise
Up to 25° with fairing
Mounting
Through-hull with Fairing
Material
Bronze
Connector
Airmar 12-Pin (MMC)
Display connection
Cable Required
Transducer connection
MMC
Cable length
9 m (30')
Hole diameter
51 mm (2")
Hull material
Fibreglass or wood
Maximum depth under suitable conditions
Low frequency- 366 m (1200'), High frequency- 213 m (700')
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
