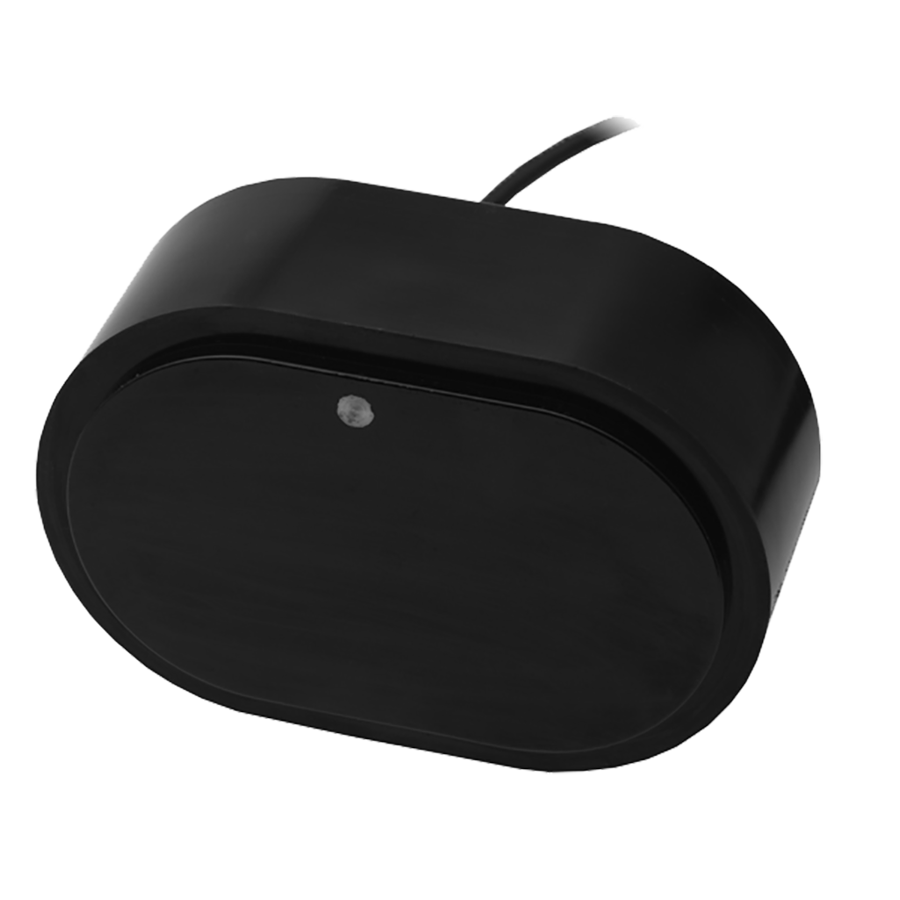

Airmar CM265C-LHG20-NC
Home / Equipment catalogue / Fishfinders & Sonar / Airmar CM265C-LHG20-NC
Airmar · Code 41-469-4-03
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Sensor for vessel measurements Airmar, version CM265C-LHG20-NC. Measures depth and water temperature and supports CHIRP. This version has a power rating of 1 kW, high band 130-210 kHz, low band 42-65 kHz. Version selection details: cable length 12 m (40').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Measurements
Depth, Temperature
Transducer power
1 kW
High frequency
130-210 kHz
Low frequency
42-65 kHz
Frequency technology
CHIRP-Ready Dual-Band
Mounting
Tank, Cavity, Pocket/Keel Mount
Cable length
12 m (40')
Hull material
Metal
Maximum depth under suitable conditions
Low frequency- 914 m (3000'), High frequency- 304 m (1000')
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
