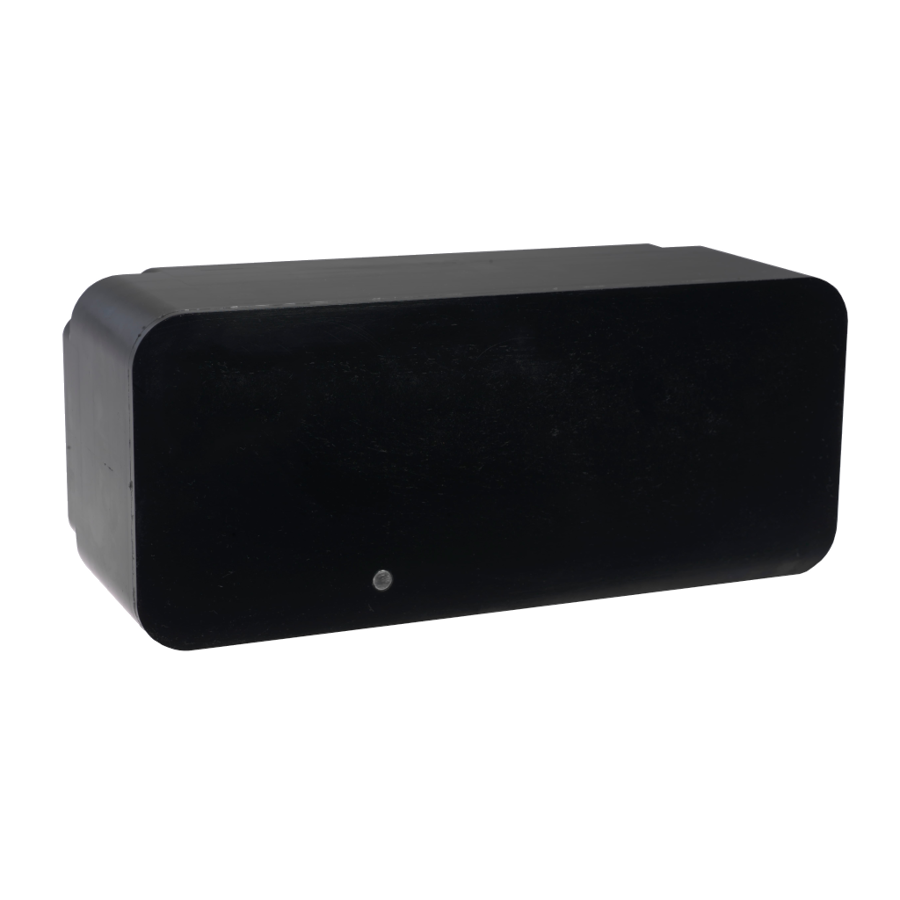

Airmar CM111C-LH-NC
Home / Equipment catalogue / Fishfinders & Sonar / Airmar CM111C-LH-NC
Airmar · Code 41-558-1-03
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor CM111C-LH-NC for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 2 kW, high band 130-210 kHz, low band 38-75 kHz, connector: bare wire. Version selection details: cable length 15 m (49').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Measurements
Depth, Temperature
Transducer power
2 kW
Frequency band
Low-High
High frequency
130-210 kHz
Low frequency
38-75 kHz
Frequency technology
CHIRP-Ready Dual-Band
Mounting
Tank, Cavity, Pocket/Keel Mount
Material
Urethane
Connector
Bare Wire
Display connection
NC
Cable length
15 m (49')
Hull material
Solid fiberglass only
Maximum depth under suitable conditions
Low frequency- 182 m (600'), High frequency- 457 m (1500')
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
