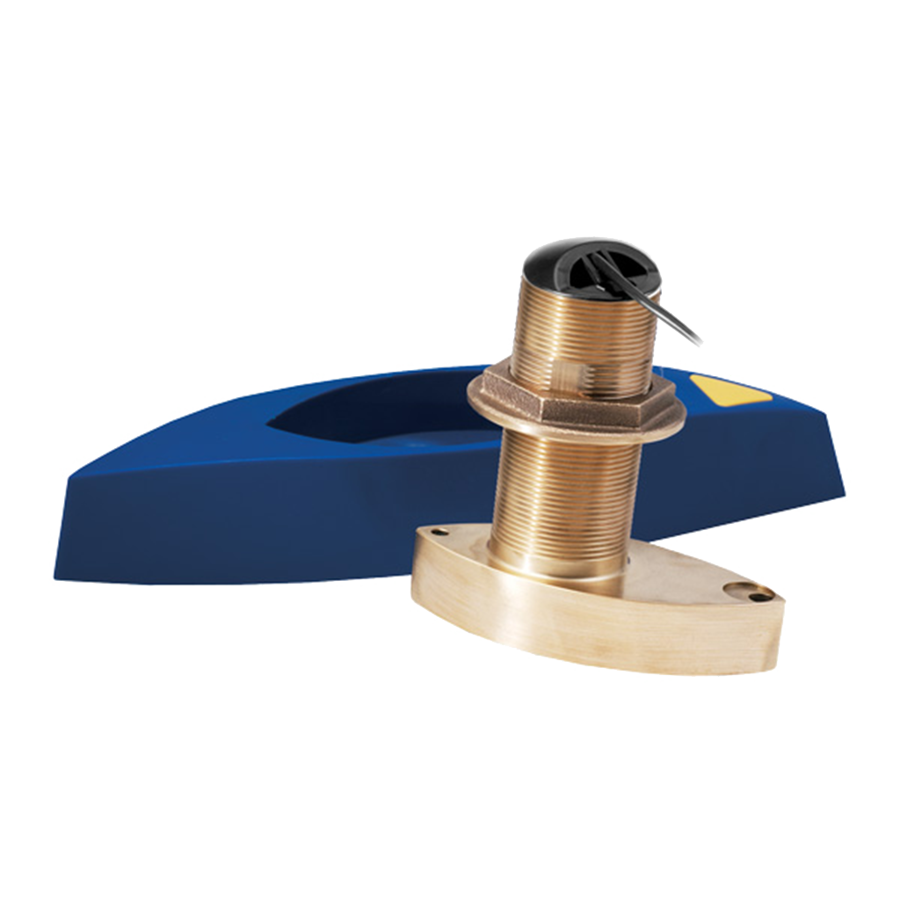

Airmar B785C-M-NC
Home / Equipment catalogue / Fishfinders & Sonar / Airmar B785C-M-NC
Airmar · Code 41-681-2-01
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor B785C-M-NC for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 600 W, medium band 80-130 kHz, connector: bare wire. Version selection details: deadrise range Up to 25° with fairing, display connection: no connector, cable length 10 m (33').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
B785
Measurements
Depth, Temperature
Transducer power
600 W
Frequency band
Medium
Medium frequency
80-130 kHz
Frequency technology
CHIRP-Ready Single-Band
Deadrise
Up to 25° with fairing
Mounting
Through-hull with Fairing
Material
Bronze
Connector
Bare Wire
Display connection
No Connector
Cable length
10 m (33')
Hole diameter
51 mm (2")
Hull material
Fibreglass or wood
Maximum depth under suitable conditions
274 m (900')
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
