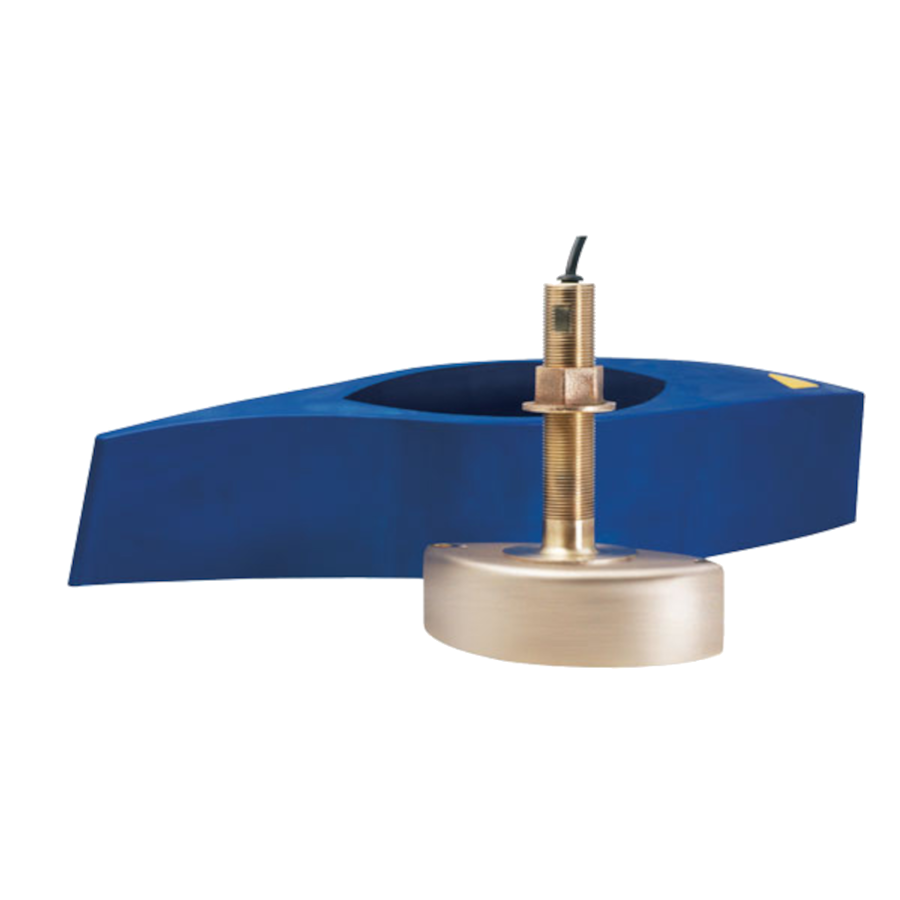

Airmar B285C-HW-NC
Home / Equipment catalogue / Fishfinders & Sonar / Airmar B285C-HW-NC
Airmar · Code 41-687-2-01
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor B285C-HW-NC for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 1 kW, high band 150-250 kHz, connector: bare wire. Version selection details: deadrise range Up to 28° with fairing, high-frequency wide beam 25°, display connection: no connector.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
B285
Measurements
Depth, Temperature
Transducer power
1 kW
Frequency band
High Wide
High frequency
150-250 kHz
Frequency technology
CHIRP-Ready Single-Band
Deadrise
Up to 28° with fairing
Mounting
Through-hull with Fairing
Material
Bronze
Connector
Bare Wire
Display connection
No Connector
Cable length
10 m (33')
Hole diameter
30 mm (1-3/16")
Hull material
Fibreglass or wood
Maximum depth under suitable conditions
150 m (500')
Wide beam high-frequency
25°
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
