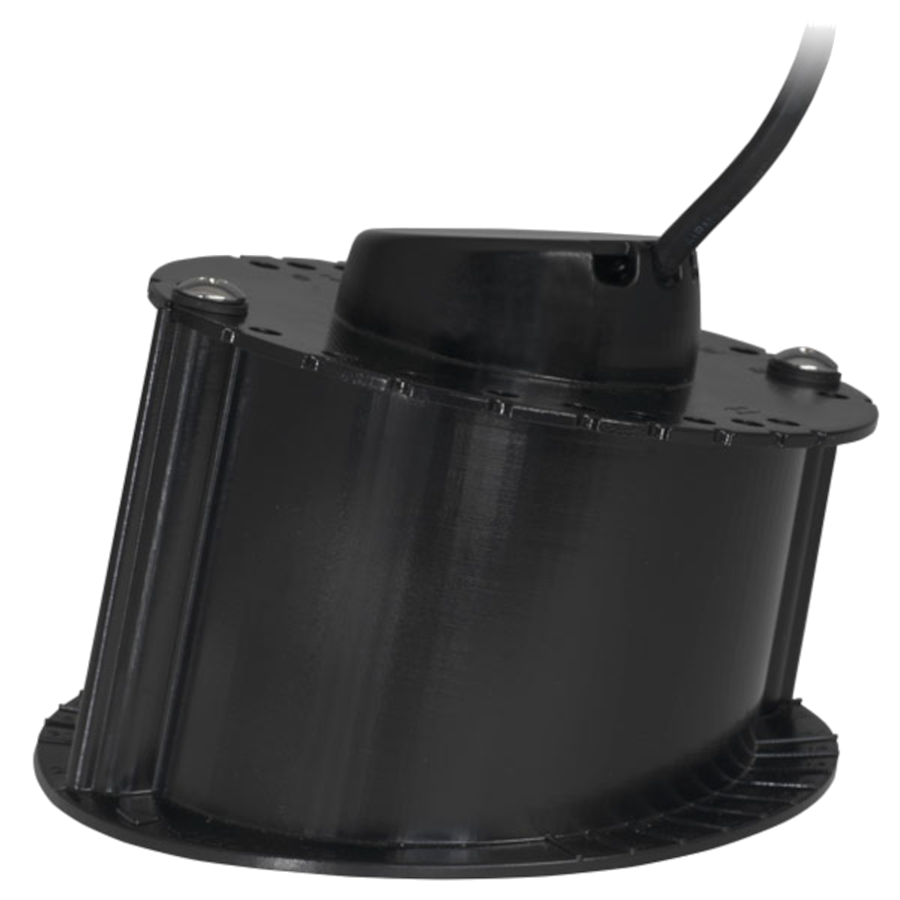

Airmar M285C-HW-MM
Home / Equipment catalogue / Fishfinders & Sonar / Airmar M285C-HW-MM
Airmar · Code 41-818-1-01
Transducers · Depth measurement, CHIRP
Fishfinders & Sonar
Discover the product
Airmar sensor M285C-HW-MM for connection to a compatible fishfinder or sonar. Supports depth measurement with CHIRP. This version has a power rating of 1 kW, high band 150-250 kHz, connector Airmar 12-Pin (MMC). Version selection details: deadrise range 0° to 22°, high-frequency wide beam 25°, cable length 9 m (30').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
M285
Measurements
Depth
Transducer power
1 kW
Frequency band
Low-High Wide
High frequency
150-250 kHz
Frequency technology
CHIRP-Ready Single-Band
Deadrise
0° to 22°
Mounting
Inside the hull
Material
Plastic
Connector
Airmar 12-Pin (MMC)
Display connection
Cable Required
Transducer connection
MMC
Cable length
9 m (30')
Hull material
Solid fiberglass only
Maximum depth under suitable conditions
150 m (500')
Wide beam high-frequency
25°
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
