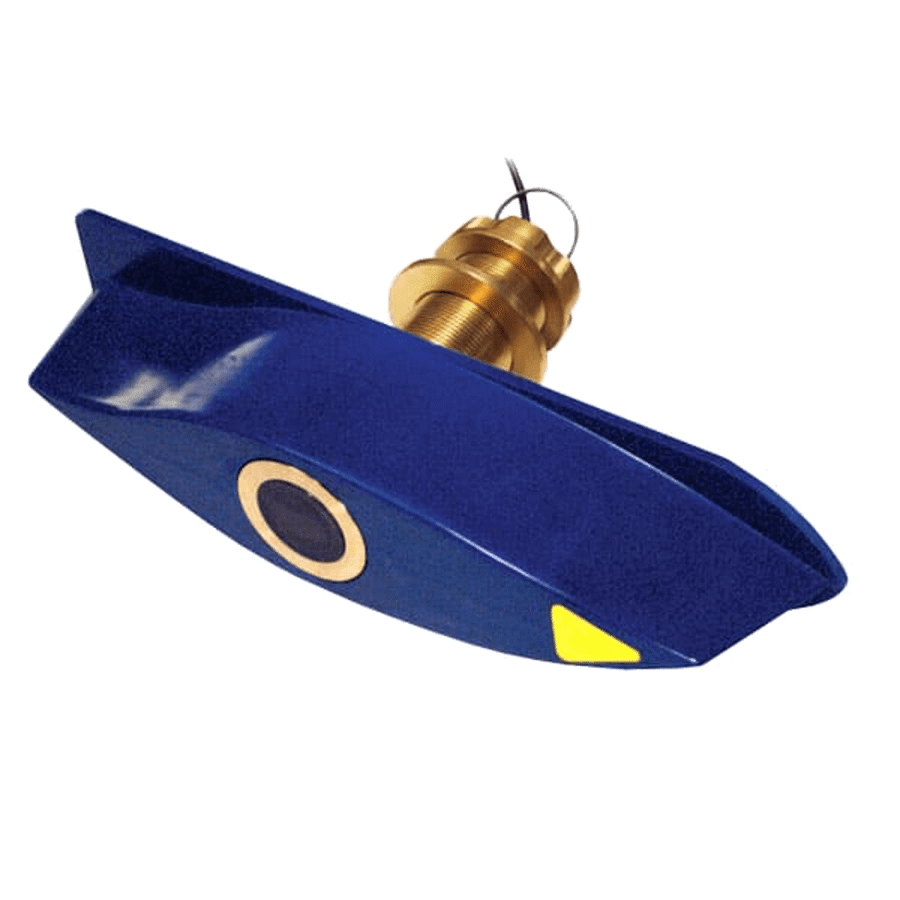

Airmar B122-235-0
Home / Equipment catalogue / Instruments & Networks / Airmar B122-235-0
Airmar · Code 44-085-1-01
Instruments & Sensors · Depth measurement, Water temperature
Instruments & Networks · Fishfinders & Sonar
Discover the product
Airmar marine instrument sensor, version B122-235-0. Supports depth measurement, water temperature data, NMEA 0183. This version has a power rating of 100 W, element tilt 0°. Version selection details: deadrise range Up to 28° with fairing, cable length 6 m (20').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · NMEA 0183
Interface:NMEA 0183
Technical specifications
Equipment type
Instruments & Sensors
Series
B122
Measurements
Depth, Temperature
Transducer power
100 W
Frequency band
235 kHz
Frequency technology
Conventional Single Frequency
Element tilt
0°
Deadrise
Up to 28° with fairing
Mounting
Through-hull with Fairing
Material
Bronze
Cable length
6 m (20')
Hole diameter
51 mm (2"), 57 mm (2-1/4") installation with adapter ring
Communication
NMEA 0183
Hull material
Fibreglass or wood
Maximum depth under suitable conditions
Up to 180 m (590')—Broadband
Beam
14°
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
