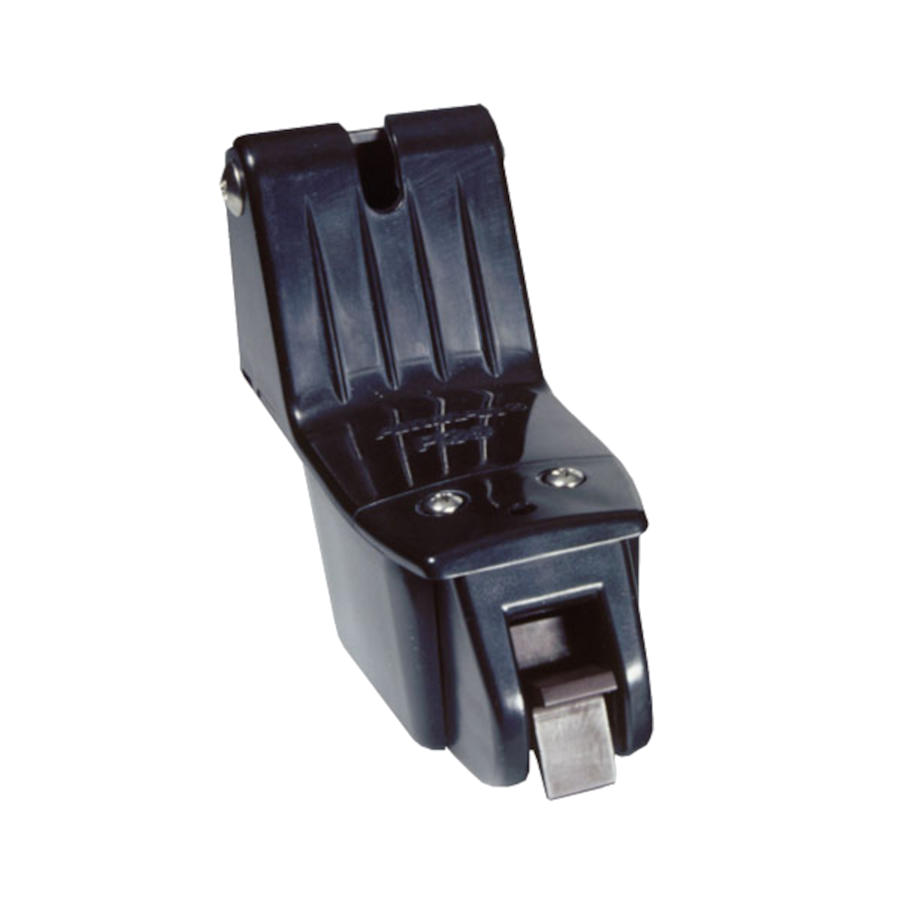

Airmar P39-235-N2
Home / Equipment catalogue / Instruments & Networks / Airmar P39-235-N2
Airmar · Code 44-205-2-02
Instruments & Sensors · Depth measurement, Speed through water
Instruments & Networks · Fishfinders & Sonar
Discover the product
Airmar marine instrument sensor, version P39-235-N2. Supports Depth measurement, Speed through water, Water temperature, NMEA 2000. This version has a power rating of 60 W / NMEA 0183 & 100 W / NMEA 2000. Version selection details: display connection N2 Micro, cable length 6 m (20').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Speed through water · Water temperature · NMEA 2000
Interface:NMEA 2000
Technical specifications
Equipment type
Instruments & Sensors
Series
P39
Measurements
Depth, Speed, Temperature
Transducer power
60 W / NMEA 0183 & 100 W / NMEA 2000
Frequency band
235 kHz
Mounting
Transom mount
Housing
Urethane
Material
Plastic
Display connection
N2 Micro
Cable length
6 m (20')
Contact
NMEA 2000®
Maximum depth under suitable conditions
Low frequency- 206 m (700'), High frequency- 180 m (600')
Beam
11°
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
