Airmar DST820 Smart Multisensor — NMEA 2000
Home / Equipment catalogue / Instruments & Networks / Airmar DST820 Smart Multisensor — NMEA 2000
Airmar · Code DST820-PV-N2
Instruments & Sensors · Depth measurement, Speed through water
Instruments & Networks · Fishfinders & Sonar
Discover the product

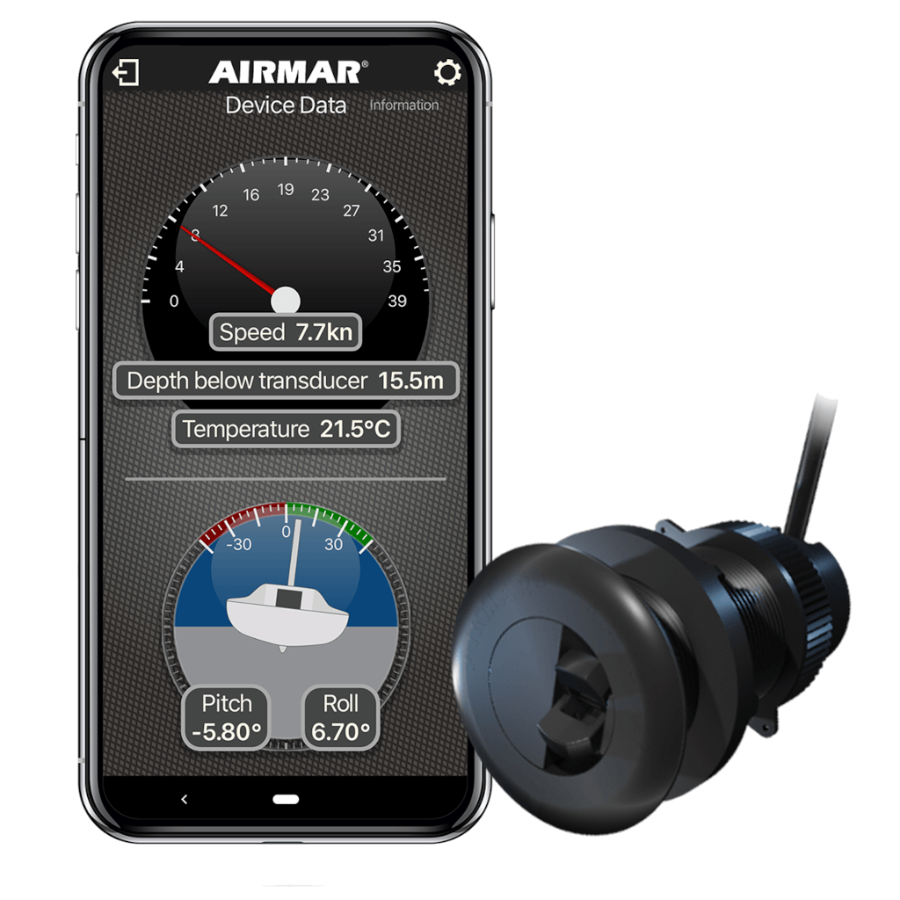

Multisensor measuring depth, speed through water, water temperature and heel / trim. The DST820 replaces the DST810 range and combines a Gen2 paddlewheel with calibration via Bluetooth and the CAST app. The plastic PV-N2 version connects to an NMEA 2000 network and supports secure PSTI initial pairing. Version selection details: display connection N2 Micro, cable length 6 m (20') NMEA 2000® Cable, 6 m (20').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Speed through water · Water temperature · Heel & trim · NMEA 2000
Interface:NMEA 2000
Technical specifications
Equipment type
Instruments & Sensors
Series
DST820
Measurements
Depth, Speed, Temperature, Depth, Speed, Temperature, Attitude
Transducer power
80 W
Frequency band
235 kHz
Mounting
Low Profile Through-hull
Material
Plastic
Display connection
N2 Micro
Cable length
6 m (20') NMEA 2000® Cable, 6 m (20')
Hole diameter
51 mm (2")
Contact
NMEA 2000®
Power supply
9 to 16 VDC
Hull material
Fibreglass or metal
Maximum depth under suitable conditions
0.5 m (1.6') to 100 m (330')
Beam
10°x44°
Speed range
Up to 45 knots
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
