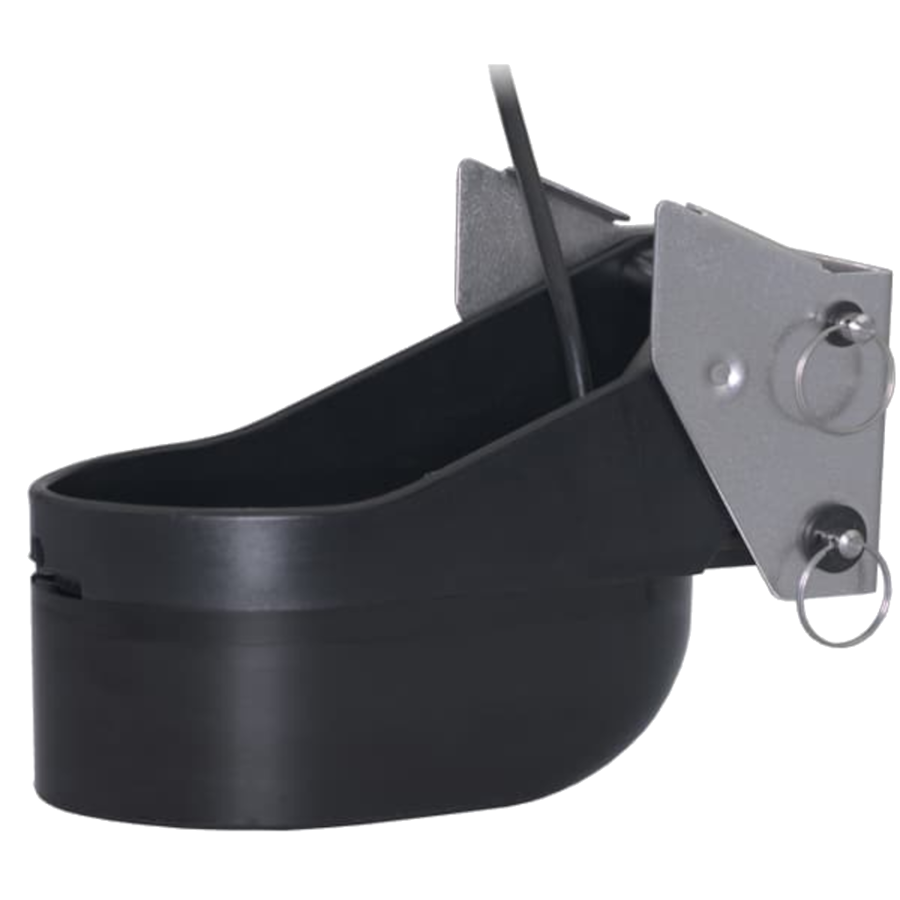

Airmar TM275MWHW7-1
Home / Equipment catalogue / Fishfinders & Sonar / Airmar TM275MWHW7-1
Airmar · Code TM275MWHW7-01
Transducers · Depth measurement, Water temperature
Fishfinders & Sonar
Discover the product
Airmar sensor TM275MWHW7-1 for connection to a compatible fishfinder or sonar. Measures depth and water temperature and supports CHIRP. This version has a power rating of 1 kW, high band 150-250 kHz, medium band 60-100 kHz, connector Furuno 12-Pin. Version selection details: high-frequency wide beam 25°, display connection 12F, cable length 9 m (30').
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Depth measurement · Water temperature · CHIRP
Technical specifications
Equipment type
Depth transducers
Series
TM275
Measurements
Depth, Temperature
Transducer power
1 kW
Frequency band
Medium Ultra Wide-High Wide
High frequency
150-250 kHz
Medium frequency
60-100 kHz
Frequency technology
CHIRP-Ready Dual-Band
Mounting
Transom mount
Housing
Urethane, Urethane/Stainless steel
Material
Urethane
Connector
Furuno 12-Pin
Display connection
12F
Cable length
9 m (30')
Wide beam high-frequency
25°
Medium-frequency wide beam
57° to 73° beam p/s 16° average f/a
Version confirmation
Before you choose, we will confirm the exact part number and current version with you.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
