FLIR M400XR incl. video tracking 9Hz PAL /NTSC
Home / Equipment catalogue / Cameras & Monitoring / FLIR M400XR incl. video tracking 9Hz PAL /NTSC
FLIR · Code 432-0012-04-00S
Thermal imaging
Cameras & Monitoring · Safety at sea

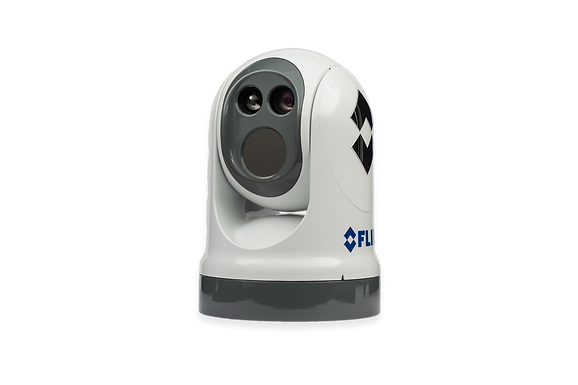

Representative image of the range M400 / M400XR. Appearance, connections and package contents vary by version.
Image: FLIR
Discover the product
Thermal camera FLIR M400XR for observation and surveillance of the ambient of the vessel.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
3 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
CABLE - AV AND SERIAL RA, 100ft, LSZH · 308-0256-30-00
M400 / M400XR / M500 · Direct
Analogue video / serial output
No additional adapter is required for this connection.
Functions: Analogue video / serial cable
Output cable only; the display’s input and functionality must be checked separately.
FLIR M400 / M500 — analogue video cables · Official manufacturer page · checked 2026-10-10
CABLE - Hd/SDI 1 M · 308-0267-00
M400 / M400XR / M500 · Direct
HD-SDI output
No additional adapter is required for this connection.
Functions: HD-SDI cable
The display or recorder needs a compatible HD-SDI input. This is not a camera-control connection.
FLIR — HD-SDI cables · Official manufacturer page · checked 2026-10-10
CABLE - HD/SDI, 100FT · 4141864
M400 / M400XR / M500 · Direct
HD-SDI output
No additional adapter is required for this connection.
Functions: HD-SDI cable
The display or recorder needs a compatible HD-SDI input. This is not a camera-control connection.
FLIR — HD-SDI cables · Official manufacturer page · checked 2026-10-10
Functions & interfaces
Thermal imaging
Technical specifications
Equipment type
Thermal cameras
Catalogue frame rate
9 Hz
Version confirmation
Before you choose, we will confirm the exact part number and current version with you.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
