FLIR M400 9Hz PAL / NTSC slow video
Home / Equipment catalogue / Cameras & Monitoring / FLIR M400 9Hz PAL / NTSC slow video
FLIR · Code 432-0012-08-00S
Thermal imaging
Cameras & Monitoring · Safety at sea

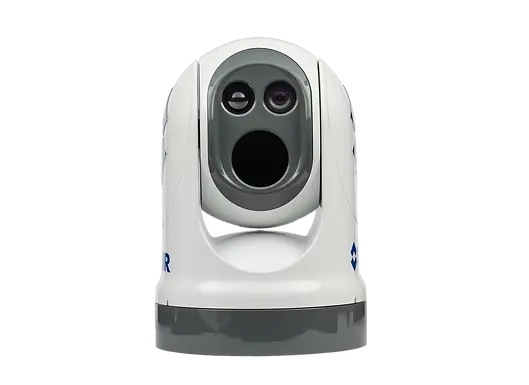

Front exterior view of FLIR M400. The refresh rate depends on the part number.
Image: FLIR
Discover the product
Thermal camera FLIR M400 for observation and surveillance of the ambient of the vessel.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
3 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
CABLE - AV AND SERIAL RA, 100ft, LSZH · 308-0256-30-00
M400 / M400XR / M500 · Direct
Analogue video / serial output
No additional adapter is required for this connection.
Functions: Analogue video / serial cable
Output cable only; the display’s input and functionality must be checked separately.
FLIR M400 / M500 — analogue video cables · Official manufacturer page · checked 2026-10-10
CABLE - Hd/SDI 1 M · 308-0267-00
M400 / M400XR / M500 · Direct
HD-SDI output
No additional adapter is required for this connection.
Functions: HD-SDI cable
The display or recorder needs a compatible HD-SDI input. This is not a camera-control connection.
FLIR — HD-SDI cables · Official manufacturer page · checked 2026-10-10
CABLE - HD/SDI, 100FT · 4141864
M400 / M400XR / M500 · Direct
HD-SDI output
No additional adapter is required for this connection.
Functions: HD-SDI cable
The display or recorder needs a compatible HD-SDI input. This is not a camera-control connection.
FLIR — HD-SDI cables · Official manufacturer page · checked 2026-10-10
Functions & interfaces
Thermal imaging
Technical specifications
Equipment type
Thermal cameras
Catalogue frame rate
9 Hz
More images

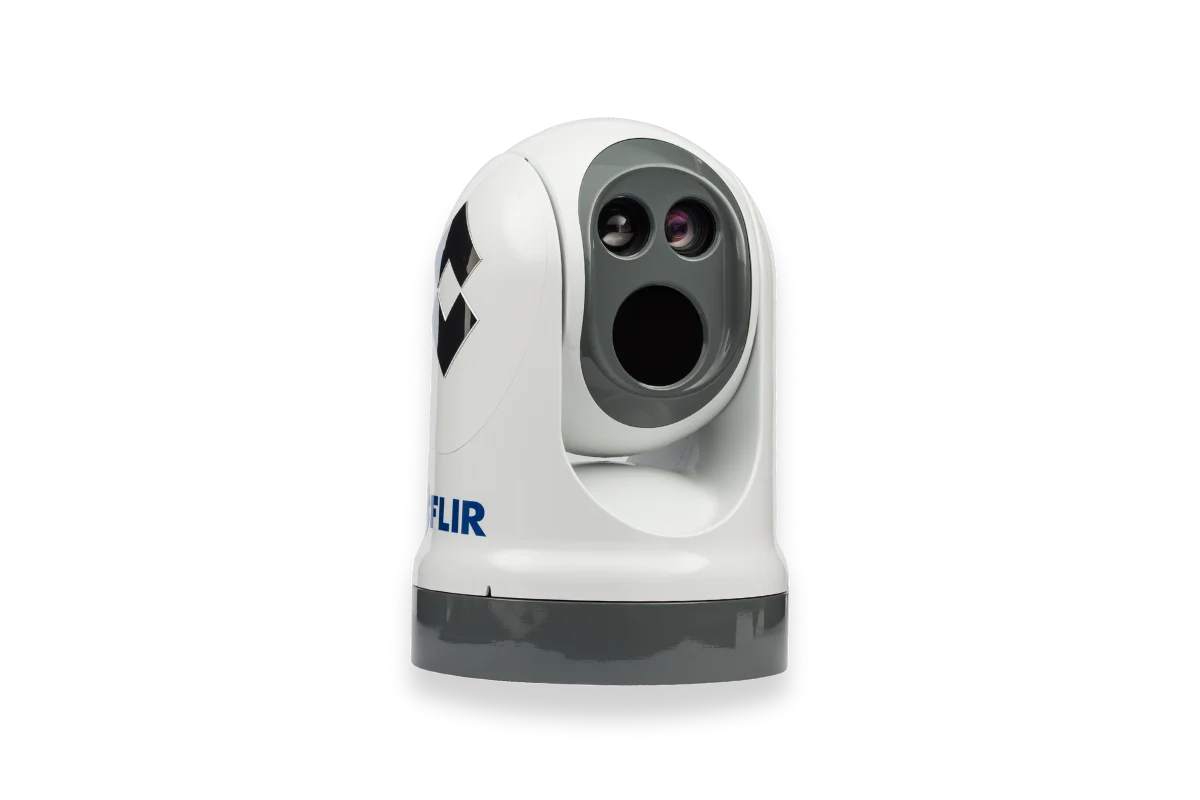

Right side view exterior view of FLIR M400. ↗
Image: FLIR

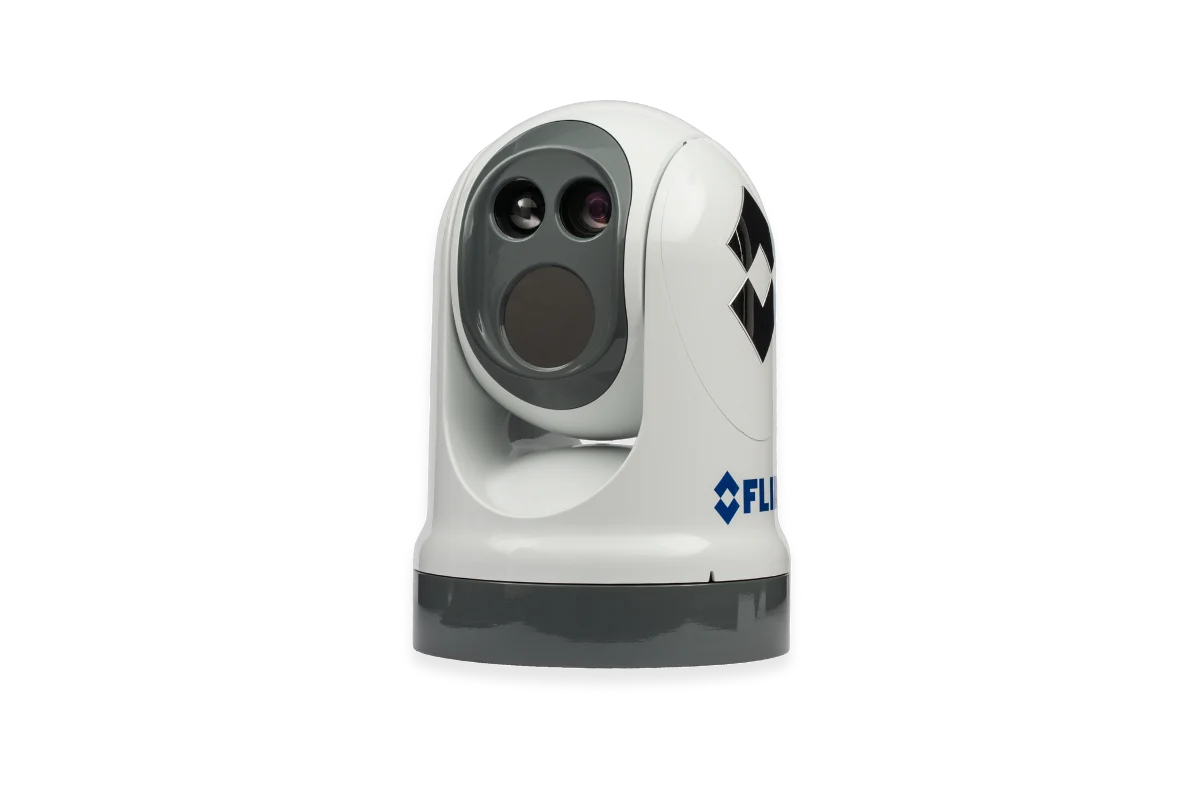

Alternative side exterior view of FLIR M400. ↗
Image: FLIR

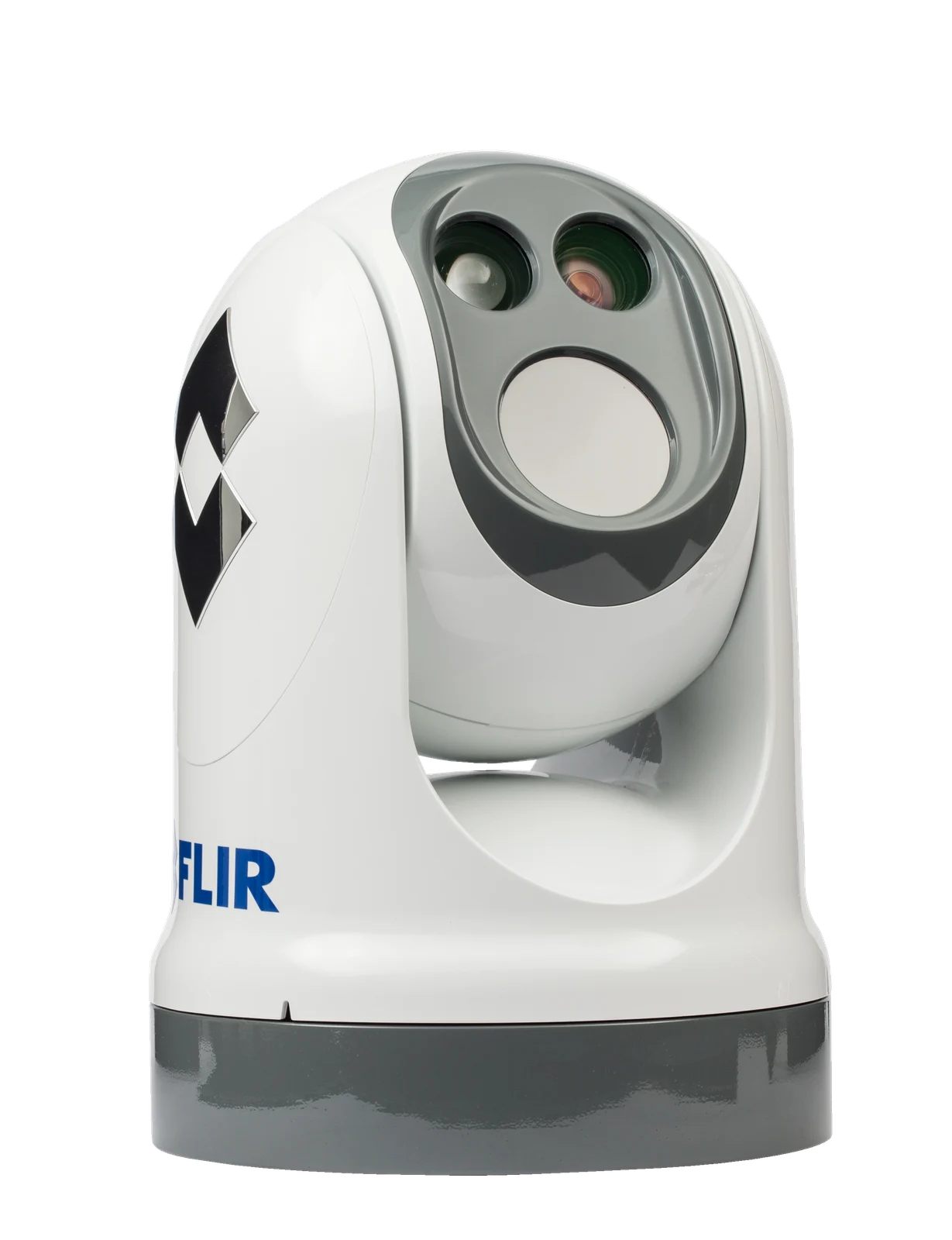

Side view of FLIR M400 with the head pointing upwards. ↗
Image: FLIR
Version confirmation
Before you choose, we will confirm the exact part number and current version with you.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
Request information by email ↗
+30 210 400 2538
Elmare · 1 Proussis Street, Keratsini
