FLIR M364 Stabilised Thermal IP Camera (640 x 512, 30Hz, 24°

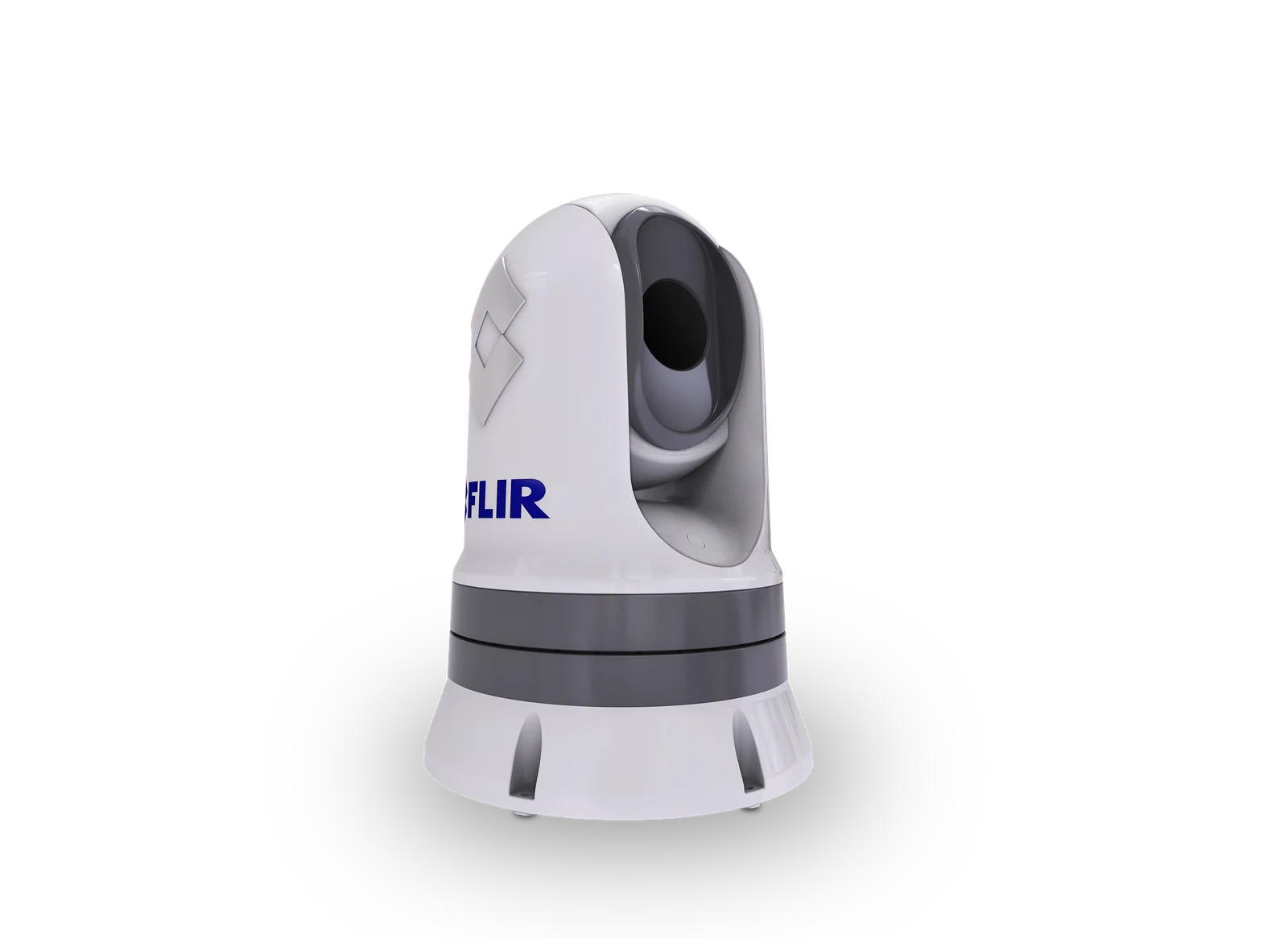

Front view of the shared exterior housing M332 / M364. The resolution and technical specifications depend on the version.

Image: FLIR

Discover the product

The FLIR M364 is a stabilised marine thermal camera with continuous rotation of 360° and tilt ±90°, for surveillance and target searching in restricted visibility. Two-axis stabilisation maintains a usable image while the vessel is moving. This entry is for the 30 Hz. Installation and control are selected according to the required video connections and the vessel's network.

Connections & accessories

No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.

Equipment connection guide ↗

Functions & interfaces

Thermal imaging · Gyro stabilisation

Technical specifications

Equipment type
Thermal cameras

Thermal sensor
640 × 512 VOx

Thermal frame rate
30 Hz — catalogue part-number version

Thermal field of view
24° × 18°

Gyro stabilisation
2 axes

Drive
Continuous rotation 360° · tilt ±90°

Digital thermal zoom
4×

Power supply
12–24 V DC

Consumption
41 W nominal · 56 W with heaters

Protection
IPX6

Weight camera
6,3 kg without riser mount

More images

Left side view of the shared exterior housing M332 / M364. Technical specifications depend on the version. ↗

Image: FLIR

Right-hand side view of the shared exterior housing M332 / M364. Technical specifications depend on the version. ↗

Image: FLIR

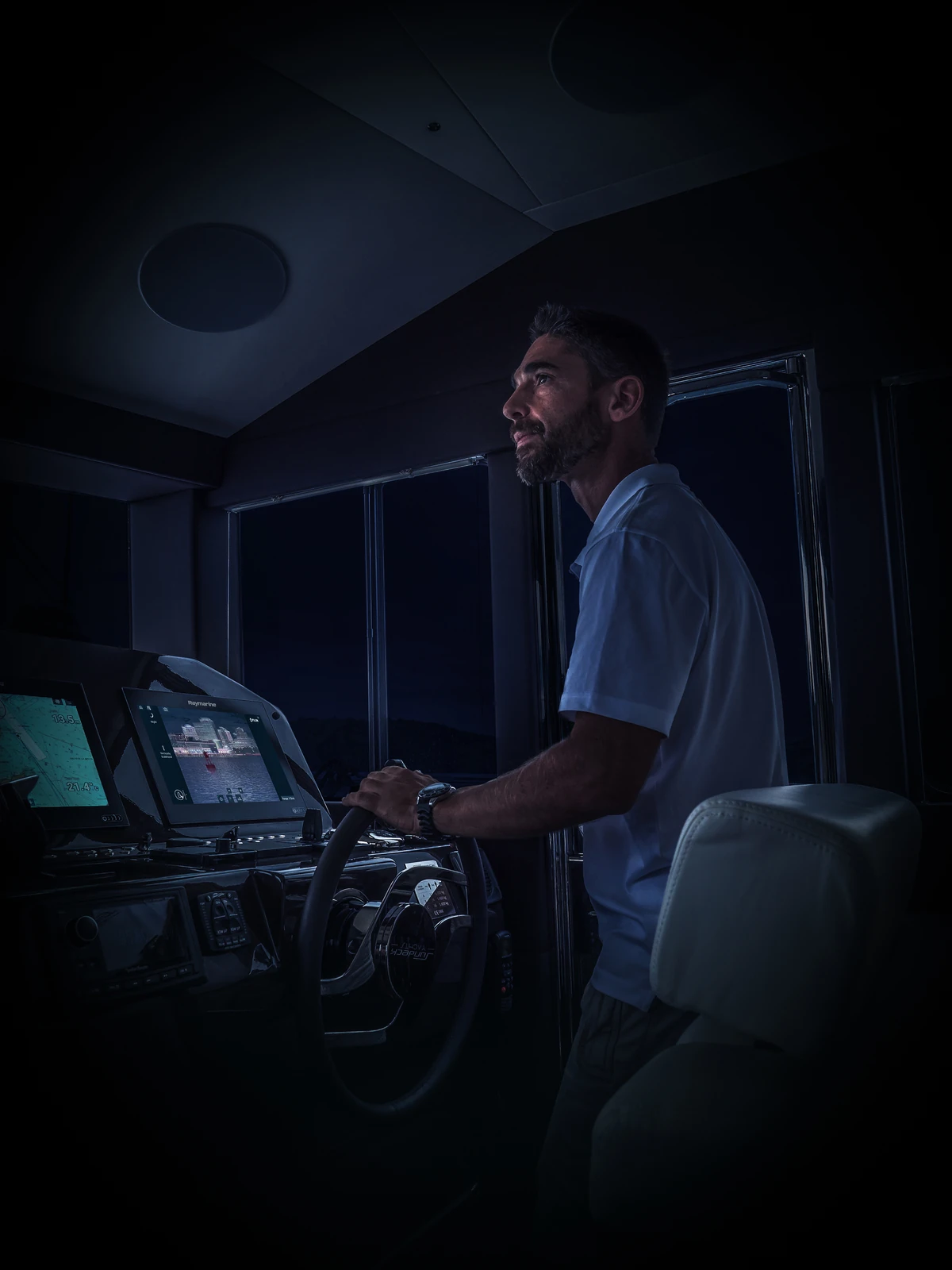

Representative night-time use of FLIR equipment at a vessel's helm, from the M300 photo series. The exact sensor or camera model in use is not identified. Representative installation of the range FLIR M300· the version, size and other equipment may differ. ↗

Image: Raymarine / FLIR

Documents & technical resources

FLIR M300 — installation & operation · English ↗

Product videos

Explore the camera range FLIR M300 ↗

Version confirmation

Before you choose, we will confirm the exact part number and current version with you.
