FLIR M560
Home / Equipment catalogue / Cameras & Monitoring / FLIR M560
FLIR · Code E70682
Cooled thermal camera MWIR · optical zoom 14,9× · visible-light image 4K
Cameras & Monitoring · Safety at sea

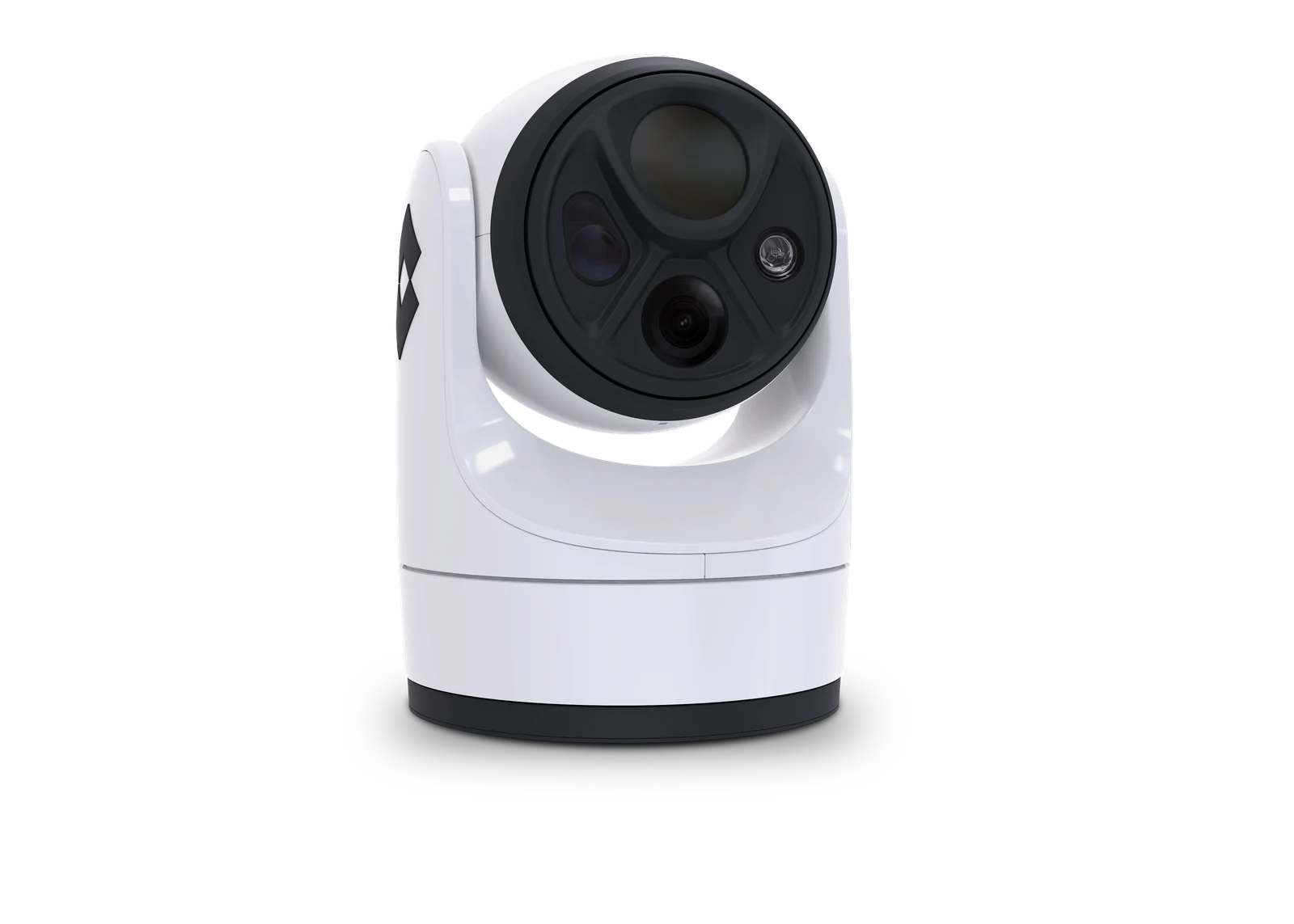

FLIR M560 — left-hand angled view
Discover the product
Multispectral camera FLIR M560 with a cooled MWIR sensor and optical thermal zoom of 14,9× for long-range observation. This version E70682 does not include a laser rangefinder. Three-axis stabilisation, a 4K visible-light camera and AI tracking of a selected target support marine observation. Color Thermal Vision adds colour information to the thermal image.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Thermal imaging · Imaging 4K · AI target tracking · Gyro stabilisation · Color Thermal Vision · Laser illuminator
Interface:NMEA 2000 · NMEA 0183 · RayNet
Technical specifications
Equipment type
Multispectral thermal cameras
Series
M560
Visible-light image
3840 × 2160, to 30 fps
Visible-light camera optical zoom
25×
Stabilisation
Gyro, 3-axis
Drive
Continuous rotation 360° · tilt ±90°
Power supply
12–24 V DC
Networking
RayNet · NMEA 2000 · NMEA 0183 · ONVIF Profile S
Protection against water
IPX6 / IPX7
Thermal sensor
Cooled MWIR InSb, 640 × 512
Thermal frame rate
30 Hz
Optical zoom thermal camera
14,9×
Laser rangefinder
Not included
More images

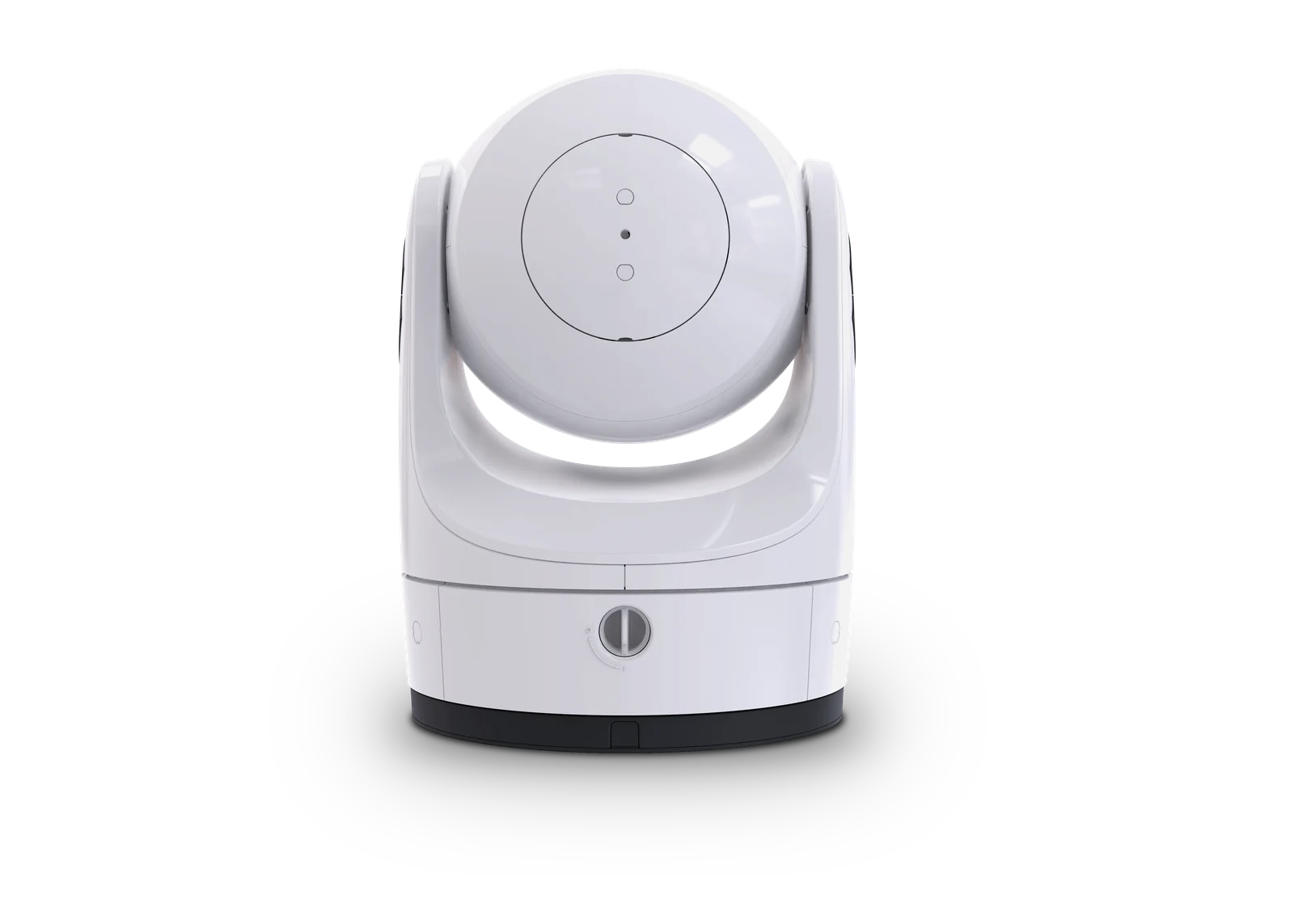

FLIR M560 — right-hand side view ↗

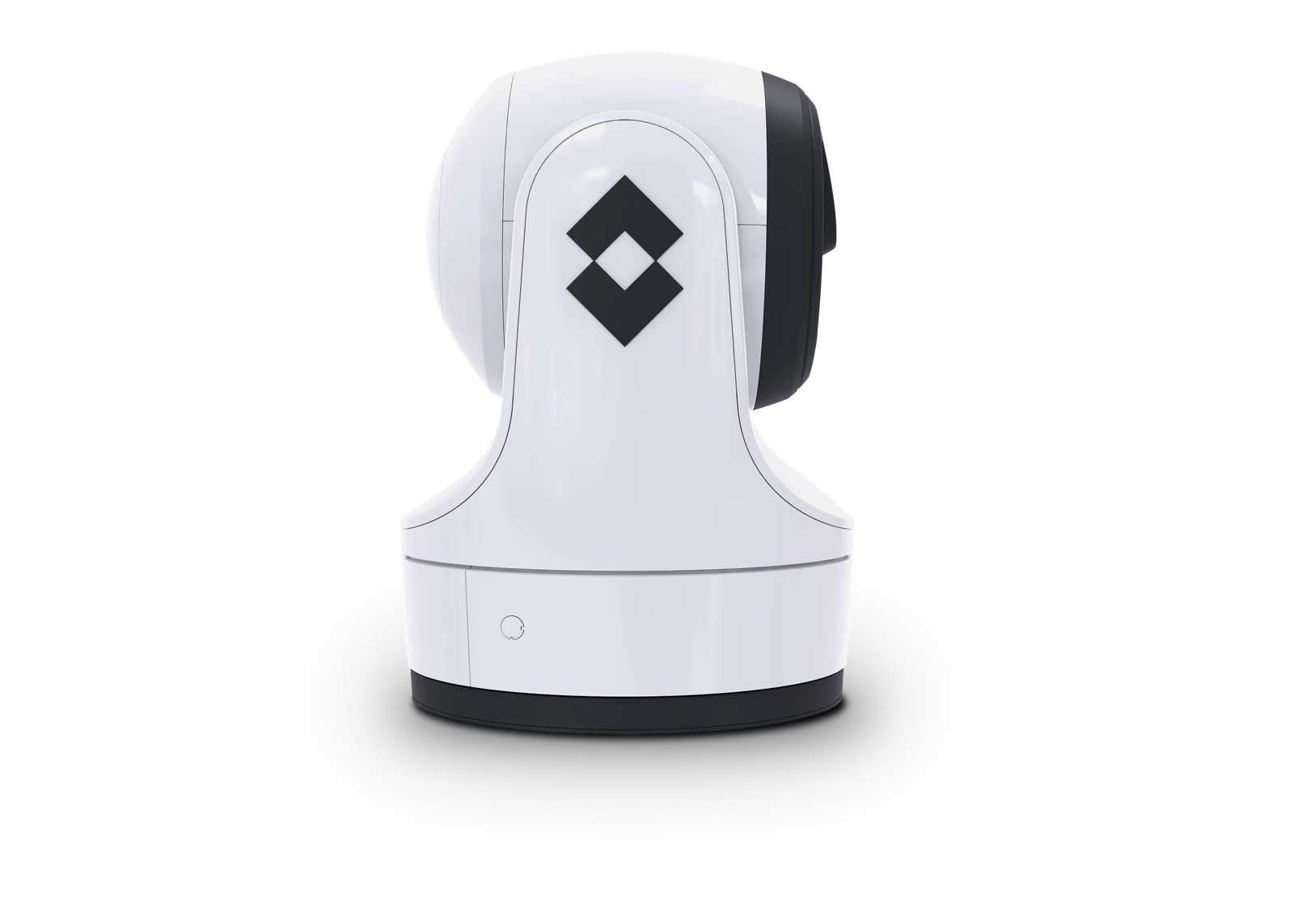

FLIR M560 — right-hand angled view ↗
Documents & technical resources
Manuals M560 on the official page FLIR · English ↗
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
