Hertz Marine VENEZIA V4C
Home / Equipment catalogue / Marine Audio / Hertz Marine VENEZIA V4C
Hertz Marine · Code 78250026
Audio amplification
Marine Audio

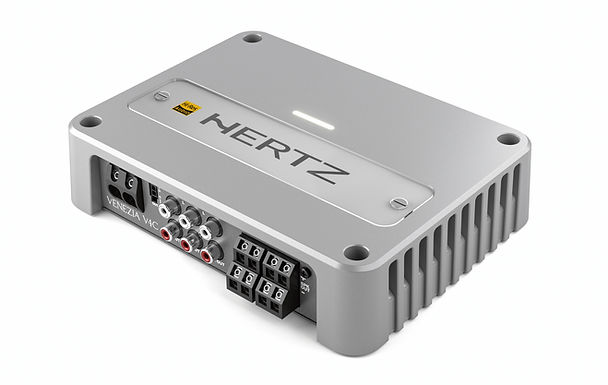

Manufacturer image — VENEZIA V4C.
Image: Hertz Marine
Discover the product
The Hertz Marine VENEZIA V4C is amplifier 4 channels, class D, with total power RMS 760 W. Power ratings per channel and load are listed separately in the specifications for the correct selection speakers and wiring.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Audio amplification
Technical specifications
Equipment type
Amplifiers
4Ch
110 W x 4 (4Ω)
3Ch
110 W x 2 (4Ω) + 380 W x 1 (4Ω)
2Ch
380 W x 2 (4Ω)
Channels
4
Amplifier class
D
Voltage power supply
9 ÷ 16 VDC
Total power RMS
760 W
Power RMS at 14,4 V DC / 1% THD
4Ch 110 W x 4 (4Ω) 4Ch 190 W x 4 (2Ω) 3Ch 110 W x 2 (4Ω) + 380 W x 1 (4Ω) 3Ch 190 W x 2 (2Ω) + 380 W x 1 (4Ω) 2Ch 380 W x 2 (4Ω) Total Power RMS 760 W
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
