Hertz Marine VENEZIA V5
Home / Equipment catalogue / Marine Audio / Hertz Marine VENEZIA V5
Hertz Marine · Code 78250030
Audio amplification
Marine Audio

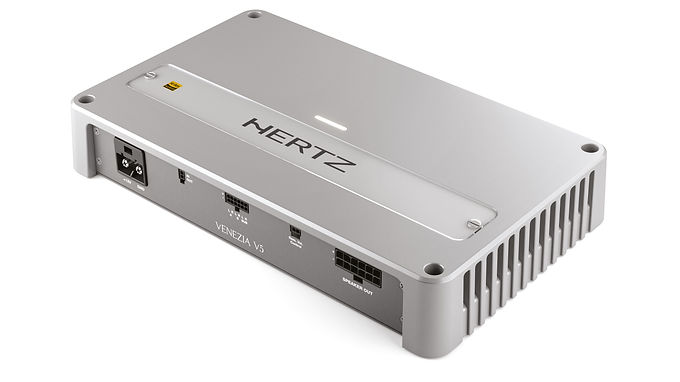

Manufacturer image — VENEZIA V5.
Image: Hertz Marine
Discover the product
The Hertz Marine VENEZIA V5 is amplifier 5 channels, class D, with total power RMS 1700 W. Power ratings per channel and load are listed separately in the specifications for the correct selection speakers and wiring.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Audio amplification
Technical specifications
Equipment type
Amplifiers
5Ch
130 W x 4 (4Ω) + 490 x 1 (4Ω)
3Ch
440 W x 2 (4Ω) + 490 W x 1 (4Ω)
Channels
5
Amplifier class
D
Voltage power supply
9 ÷ 16 VDC
Total power RMS
1700 W
Power RMS at 14,4 V DC / 1% THD
5Ch 130 W x 4 (4Ω) + 490 x 1 (4Ω) 5Ch 220 W x 4 (2Ω) + 820 W x 1 (2Ω) 3Ch 440 W x 2 (4Ω) + 490 W x 1 (4Ω) 3Ch 440 W x 2 (4Ω) + 820 W x 1 (2Ω) Total Power RMS 1700 W
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
