Hertz Marine CAPRI H100
Home / Equipment catalogue / Marine Audio / Hertz Marine CAPRI H100
Hertz Marine · Code 78333040
Audio playback · 4 zones · Bluetooth
Marine Audio

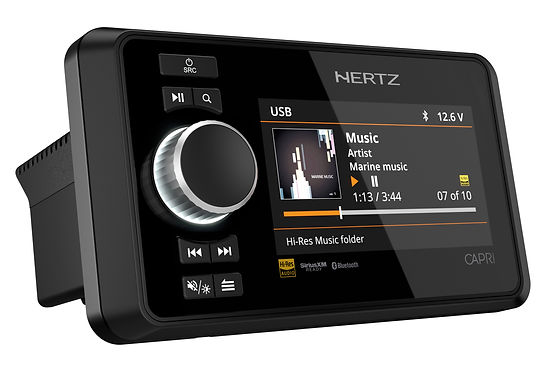

Manufacturer image — CAPRI H100.
Image: Hertz Marine
Discover the product
The Hertz Marine CAPRI H100 audio source unit features a 4,3″ colour IPS display, four-zone management and Bluetooth. Its digital processor allows independent sound adjustment for different areas of the vessel.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
4 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
HMC U1 · 78333101
CAPRI H100 · Direct
3.5 mm wired controller input
No additional adapter is required for this connection.
Functions: Basic audio control from HMC U1.
Functionality and zone assignment follow the capabilities of the specific source unit.
HMC U1 has a separate +12 V wire for button illumination.
Hertz Marine — optional accessory tables · Marine catalogue 2.5.2, pp. 58–59 · checked 2026-10-10
HMC U1 — controller connection · FML004B REV.21C, p. 3 · checked 2026-10-10
HMC U1 · 78333101
CAPRI H100 · Direct
3.5 mm wired controller input
Additionally required:1 × 78333302 — HMA C3.5
Functions: HMC U1 control over a longer cable run.
HMA C3.5 is intended for the 3.5 mm controller connection.
HMC U1 has a separate +12 V wire for button illumination.
Hertz Marine — optional accessory tables · Marine catalogue 2.5.2, pp. 58–59 · checked 2026-10-10
HMC U1 — controller connection · FML004B REV.21C, p. 3 · checked 2026-10-10
HMA USB AUX IN · 78333304
CAPRI H100 · Direct
USB / AUX
No additional adapter is required for this connection.
Functions: Brings USB / AUX sockets to an accessible location.
Socket extension; it does not add a new source or capability to the main unit.
Hertz Marine — optional accessory tables · Marine catalogue 2.5.2, pp. 58–59 · checked 2026-10-10
HM CAM C01 · 78333405
CAPRI H100 · Direct
Camera input
No additional adapter is required for this connection.
Functions: Video display from the specific HM CAM C01 camera.
Requires camera power and correct video-input wiring/settings. This relationship does not extend to wireless HM CAM W01.
Hertz Marine — optional accessory tables · Marine catalogue 2.5.2, pp. 58–59 · checked 2026-10-10
Functions & interfaces
Audio playback · 4 zones · Bluetooth · DSP
Interface:Bluetooth
Technical specifications
Equipment type
Source units
Display
4.3” COLOR TFT IPS
Peak power at 4 Ω
CLASS-D: 4 x 70 W
Protection front view
IP67
Audio zones
4
USB / BLUETOOTH
Yes (2A) / 5.1
Outputs line
4x L+R (one per zone) - HPF: ALL, 60, 80, 100 Hz
Output subwoofer (RCA)
4x (LPF: ALL, 60, 80, 100 Hz)
USB
Yes (2A)
Bluetooth
5.1 | Audio streaming with ID3 Tag Display | LDAC – AAC – APTX HD
Dimensions device
W 146 (5.748) x H 105 (4.134) x D 121 (4.763) mm (values in parentheses are in inches)
Opening installation
W 122 (4.8) x H 52 (2.05) mm (values in parentheses are in inches)
Depth installation
99 (3.89) mm (values in parentheses are in inches)
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
