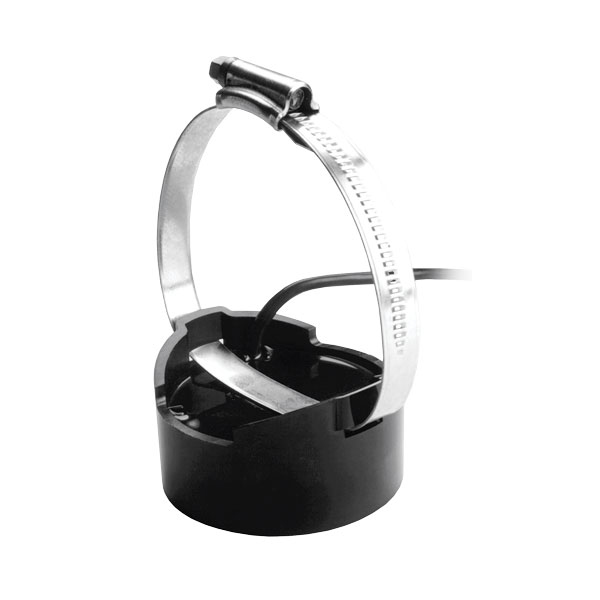

Raymarine P74 · 600 W depth and temperature transducer (8-pin) · A80567

🇬🇷 Ελληνικά   |   🇬🇧 English


Home   /   Equipment catalogue   /   Fishfinders & Sonar   / Raymarine P74 · 600 W depth and temperature transducer (8-pin)


Raymarine · Code A80567


50/200 kHz · DSM 8-pin · CP370


Fishfinders & Sonar


Raymarine P74 · 600 W depth and temperature transducer (8-pin) · A80567


Discover the product


The Raymarine P74 A80567 is a 600 W, 50/200 kHz depth and temperature transducer for in-hull or trolling-motor installation. Its 8-pin DSM connector connects directly to CP370 and legacy CP300, DSM300, DSM30 and DSM250 modules. In-hull installation requires a suitable solid fiberglass hull; cored hulls are excluded. Confirm the cable length of the supplied version: the official page lists different lengths in its model name and specification table.



Connections & accessories


No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.


Equipment connection guide ↗



Functions & interfaces


Transducer



Technical specifications


Equipment type
Depth transducers


Mounting
In-hull / Trolling Motor


Material
Urethane


RMS power
600W


Reference maximum depth
1,200 Ft. (L) / 700 Ft. (H)


Frequency
50 / 200 kHz


Beam width
45° / 11°


Measurements
Depth / temperature


Hull material
Fibreglass


Cable length
Confirm supplied version: the official model name states 9 m and the table states 7.5 m.


Hull angle
0 - 12°



Selection & compatibility


This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.


Official manufacturer page ↗


Browse the equipment


Fishfinders & Sonar ↗


Raymarine ↗


Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.



Is it right for your vessel?


Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.


Request information by email ↗
+30 210 400 2538

Elmare · 1 Proussis Street, Keratsini
