Raymarine STNG Auxillary Alarm with 1m Spur Cable
Home / Equipment catalogue / Instruments & Networks / Raymarine STNG Auxillary Alarm with 1m Spur Cable
Raymarine · Code A80614
Networks & Interfaces · Vessel data · NMEA 2000
Instruments & Networks
Auxiliary audible alarm SeaTalk NG A80614
Image: Raymarine
Discover the product
Interface unit Raymarine STNG Auxillary Alarm with 1m Spur Cable for the vessel's electronics network. Select according to the protocols and connections supported by the specific version.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Vessel data · NMEA 2000
Interface:NMEA 2000
Technical specifications
Equipment type
Networks & Interfaces
Protection against water
IPx6, IPx7
Operating temperature
-20 °C to +55 °C
Operating voltage range
9 V dc to 16 V dc (protection to 32 V dc)
Consumption
25 mA at nominal supply voltage
Nominal power supply
12 V dc (Supplied by SeaTalkng)
Load NMEA 2000 (LEN)
1
More images

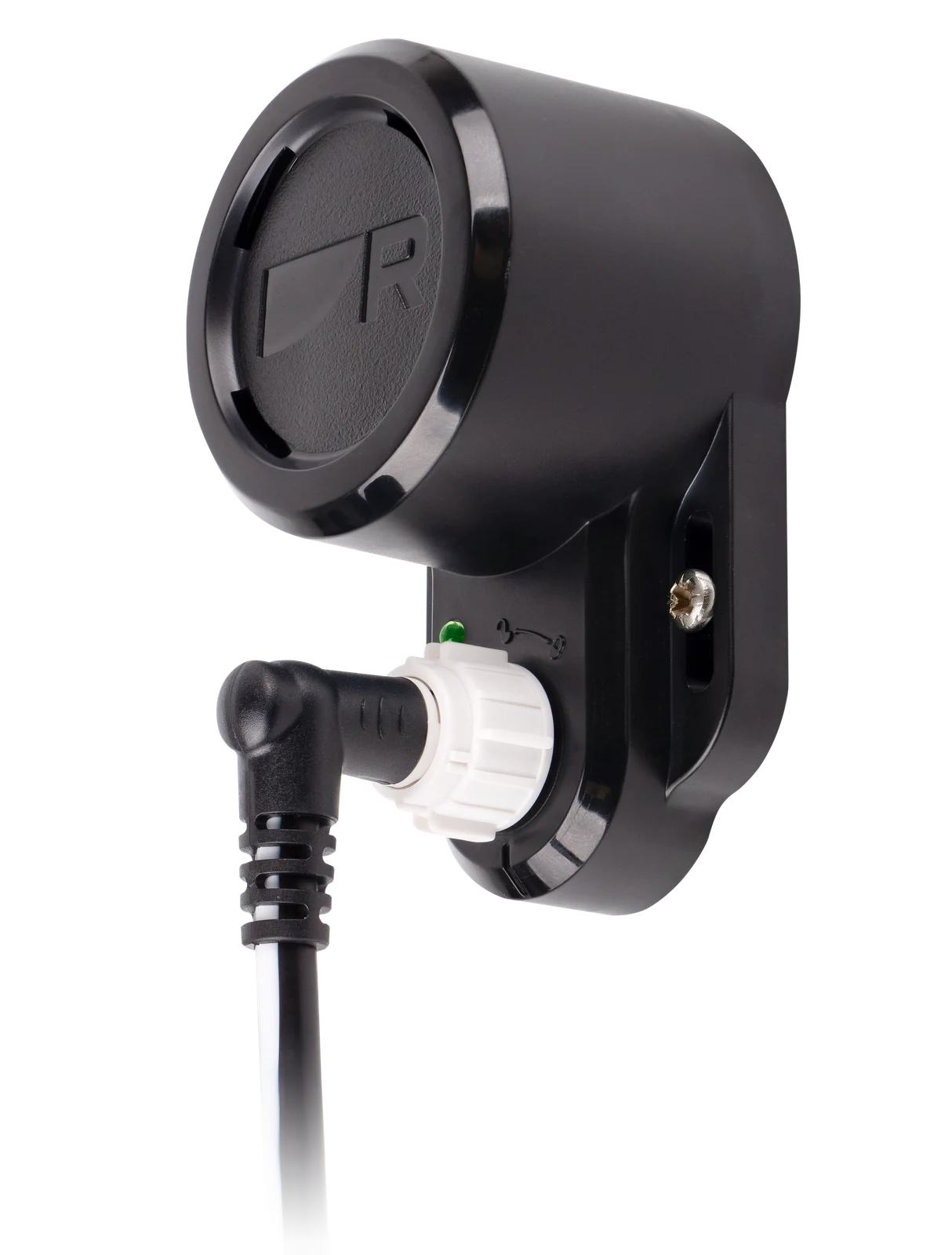

SeaTalk NG A80614 — front view ↗
Image: Raymarine

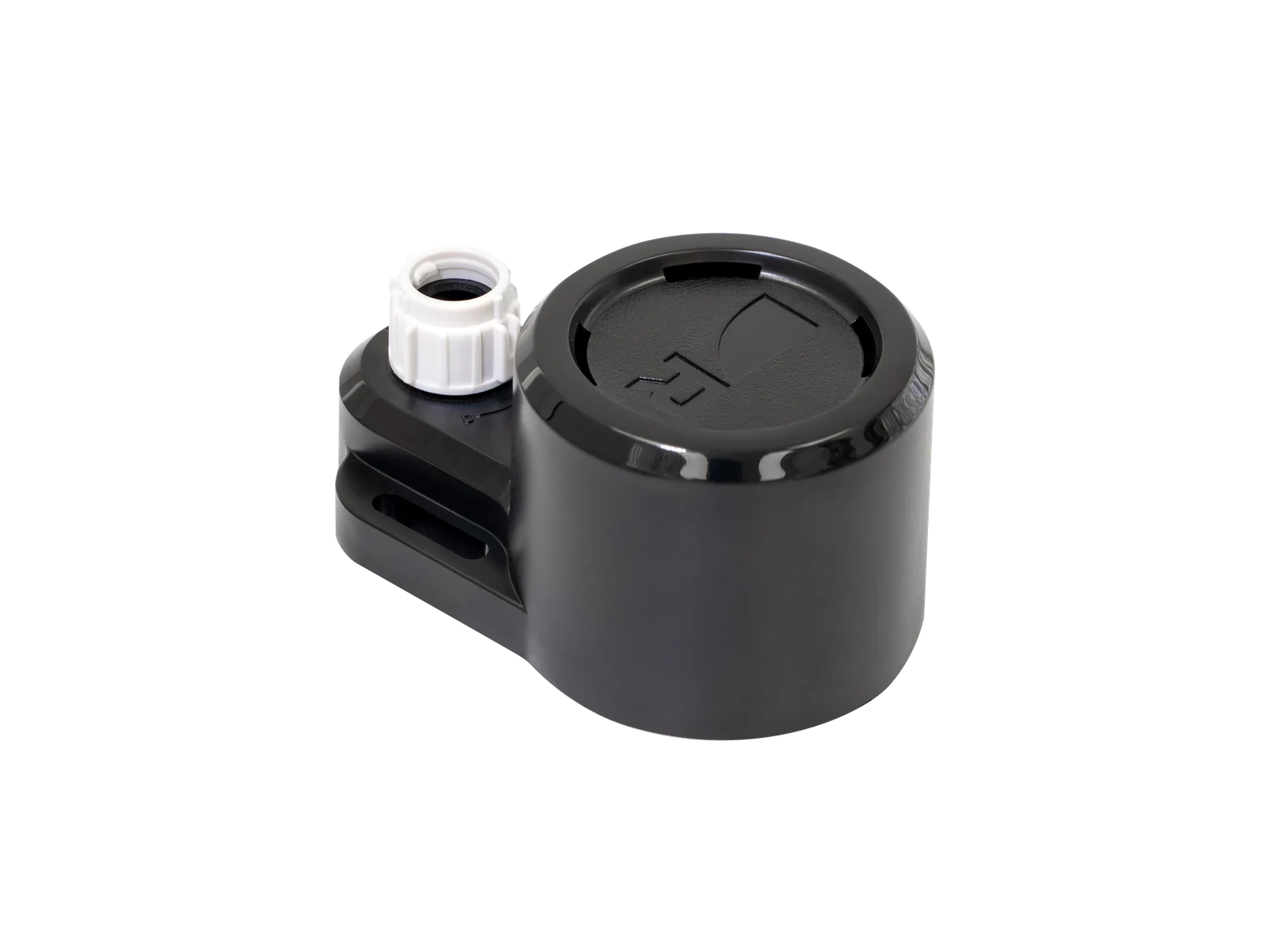

SeaTalk NG A80614 — side view and connection spur ↗
Image: Raymarine

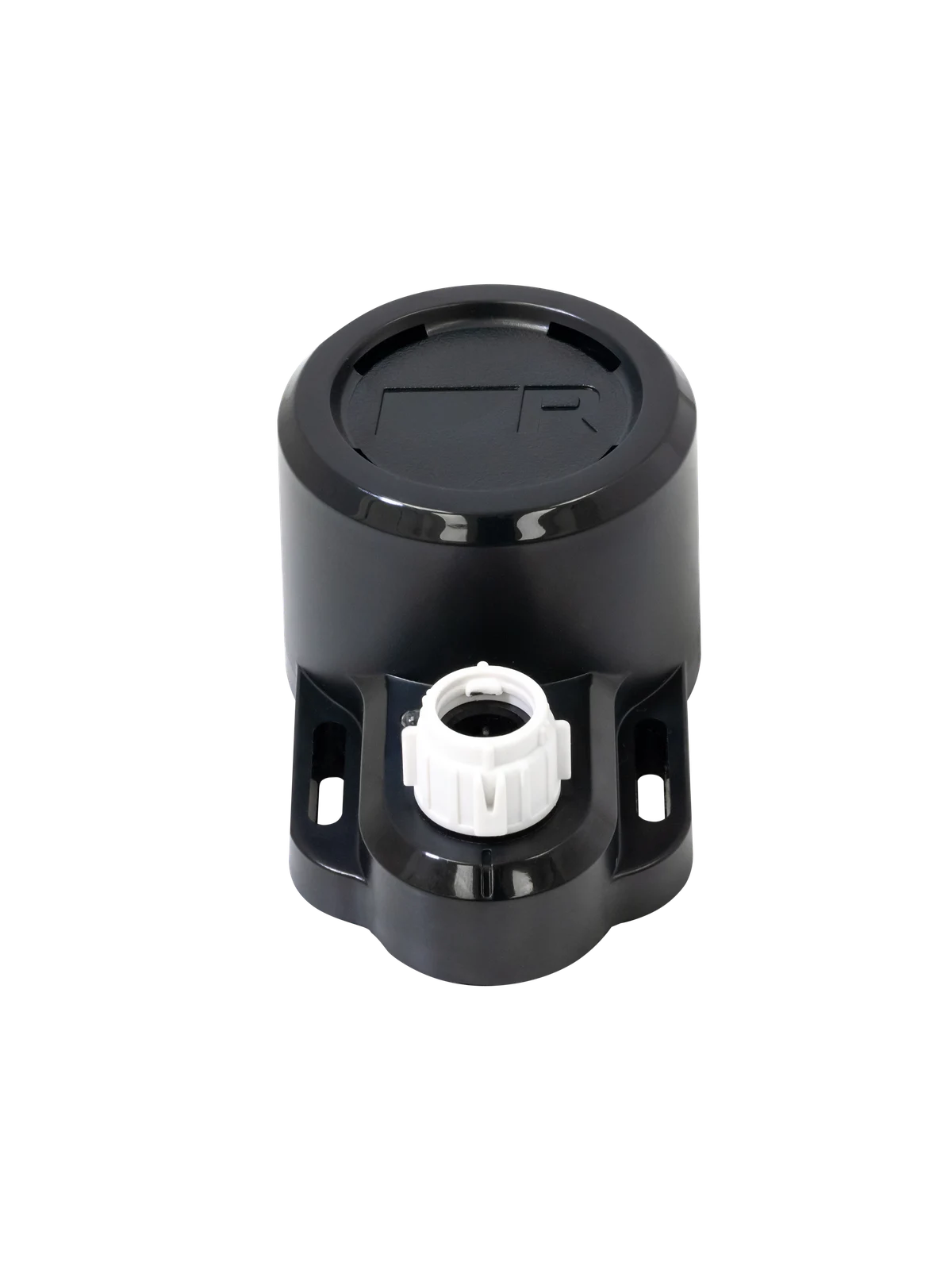

SeaTalk NG A80614 — representative installation with cable spur ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
