Raymarine RNS8 Gigabit Raynet Network Switch with 4 x POE ports
Home / Equipment catalogue / Instruments & Networks / Raymarine RNS8 Gigabit Raynet Network Switch with 4 x POE ports
Raymarine · Code A80732
Networks & Interfaces · Vessel data
Instruments & Networks

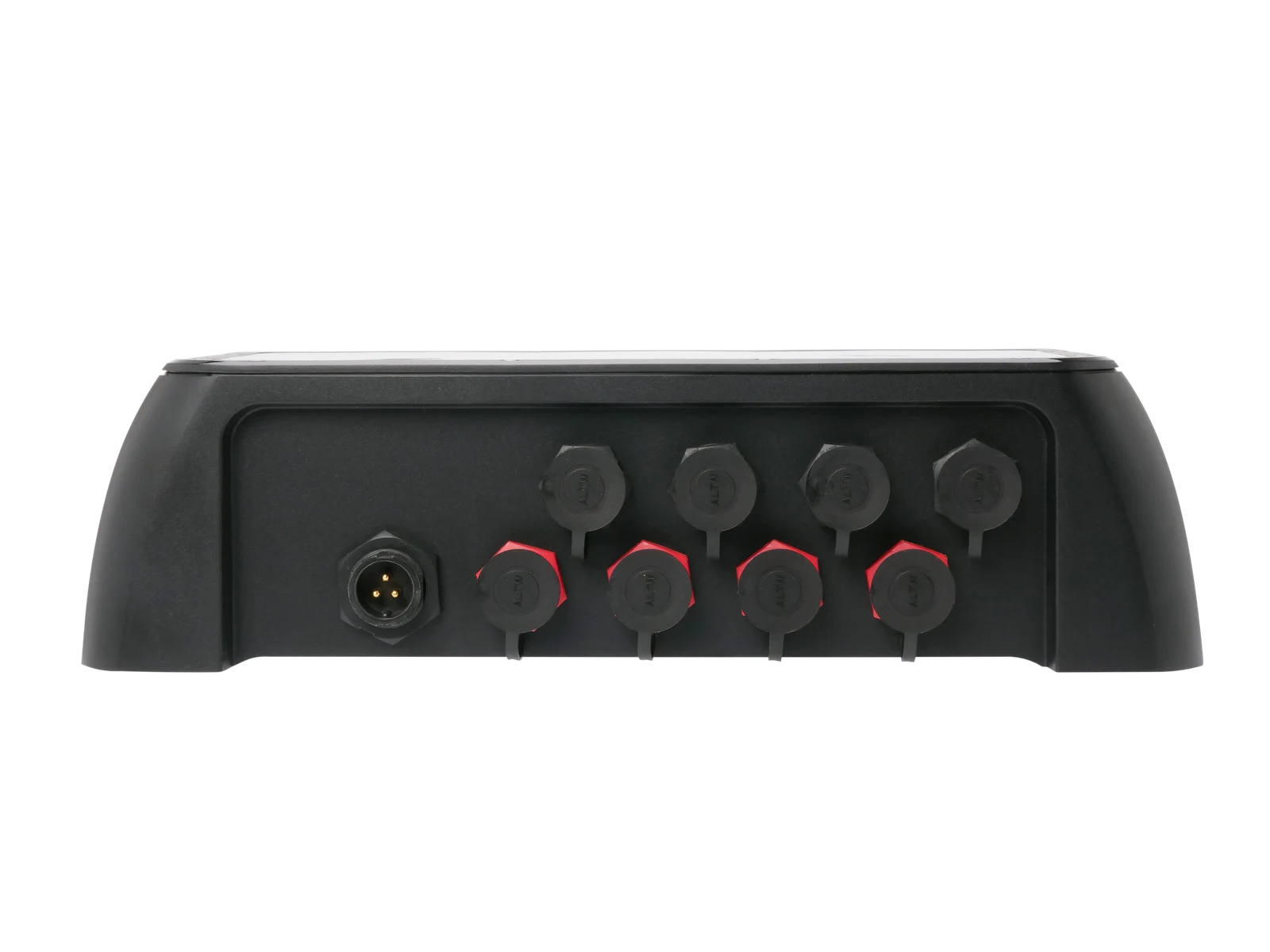

RNS-8 — side view of the network switch
Image: Raymarine
Discover the product
Interface unit Raymarine RNS8 Gigabit Raynet Network Switch with 4 x POE ports for the vessel's electronics network. Select according to the protocols and connections supported by the specific version.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
14 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
Raynet (F) to Raynet (F) cable - 400mm · A80161
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Raynet (F) to Raynet (F) cable - 2m · A62361
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Raynet (F) to Raynet (F) cable - 5m · A80005
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Raynet (F) to Raynet (F) cable - 10m · A62362
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Raynet (F) to Raynet (F) cable - 20m · A80006
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Raynet Right Angle (F) to Raynet Straight (F) cable - 10m · A80512
RNS-8 · Direct
RayNet · data
No additional adapter is required for this connection.
Functions: RayNet data connection
Select one cable of the required length per connection path.
RNS-8 — compatible devices and power supply · Official manufacturer page · checked 2026-10-10
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
View all 14 connections in the guide ↗
Functions & interfaces
Vessel data
Technical specifications
Equipment type
Networks & Interfaces
Length
287.63 mm
Height
125.5 mm
Enclosure depth
78 mm
Weight
960.5 g
Nominal power supply
12 V or 24 V dc
Operating voltage range
9 V to 31.2 V dc
Consumption
160 W (Maximum) @ 12 V dc 150 W (Maximum) @ 24 V dc
Current
13.3 A (Maximum) @ 12 V dc 6.25 A (Maximum) @ 24 V dc
Operating temperature
–25 °C to +55 °C
Protection against water
IPx6 & IPx7
More images

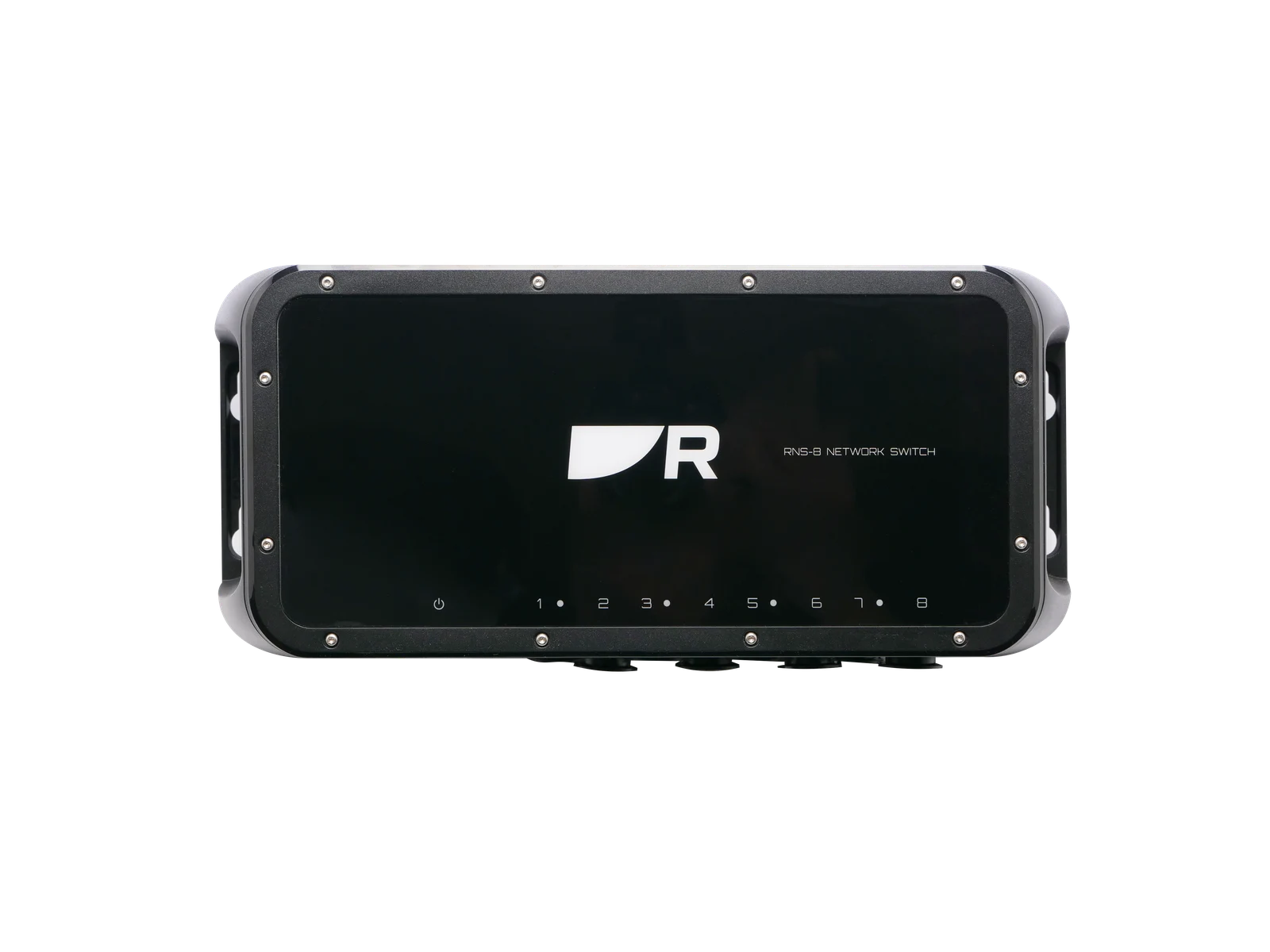

RNS-8 — the eight network ports ↗
Image: Raymarine
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
