Raymarine ST1 to STNG Adaptor Kit (1xR52131, 2xA06031, 2xA06032, 1xA22164, 1xA06049, 1xA06039)
Home / Equipment catalogue / Instruments & Networks / Raymarine ST1 to STNG Adaptor Kit (1xR52131, 2xA06031, 2xA06032, 1xA22164, 1xA06049, 1xA06039)
Raymarine · Code E22158
Accessories & Installation · Accessory / installation
Instruments & Networks

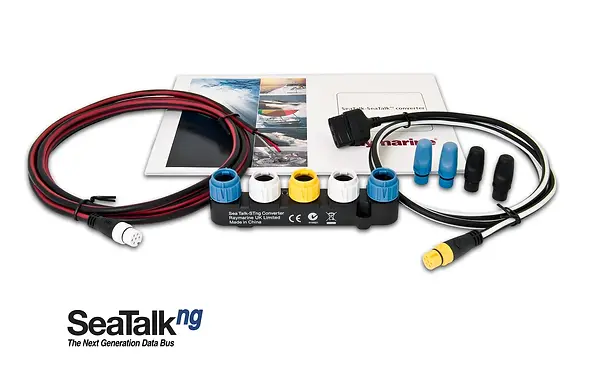

Converter kit SeaTalk 1 in SeaTalk NG E22158 with cables and terminators
Image: Raymarine
Discover the product
Adapter Raymarine, part number E22158. ST1 to STNG Adaptor Kit (1xR52131, 2xA06031, 2xA06032, 1xA22164, 1xA06049, 1xA06039). Select according to the exact equipment model and connection.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Accessory / installation
Technical specifications
Equipment type
Accessories & Installation
Protection against water
IPx6
Operating temperature
-10°C to +50°C
Connections
SeaTalkng backbone x 2, SeaTalkng spur x 2, SeaTalk spur x 1
Dimensions
Height: 30.2 mm, Width: 109.45 mm, Depth: 21.45 mm
Current
Peak operating current: 50 mA, Peak supply current: 950 mA
Operating voltage range
9 V dc to 16 V dc
Nominal power supply
12 V dc
Load NMEA 2000 (LEN)
1 (plus LEN 3 for each powered evice)
More images

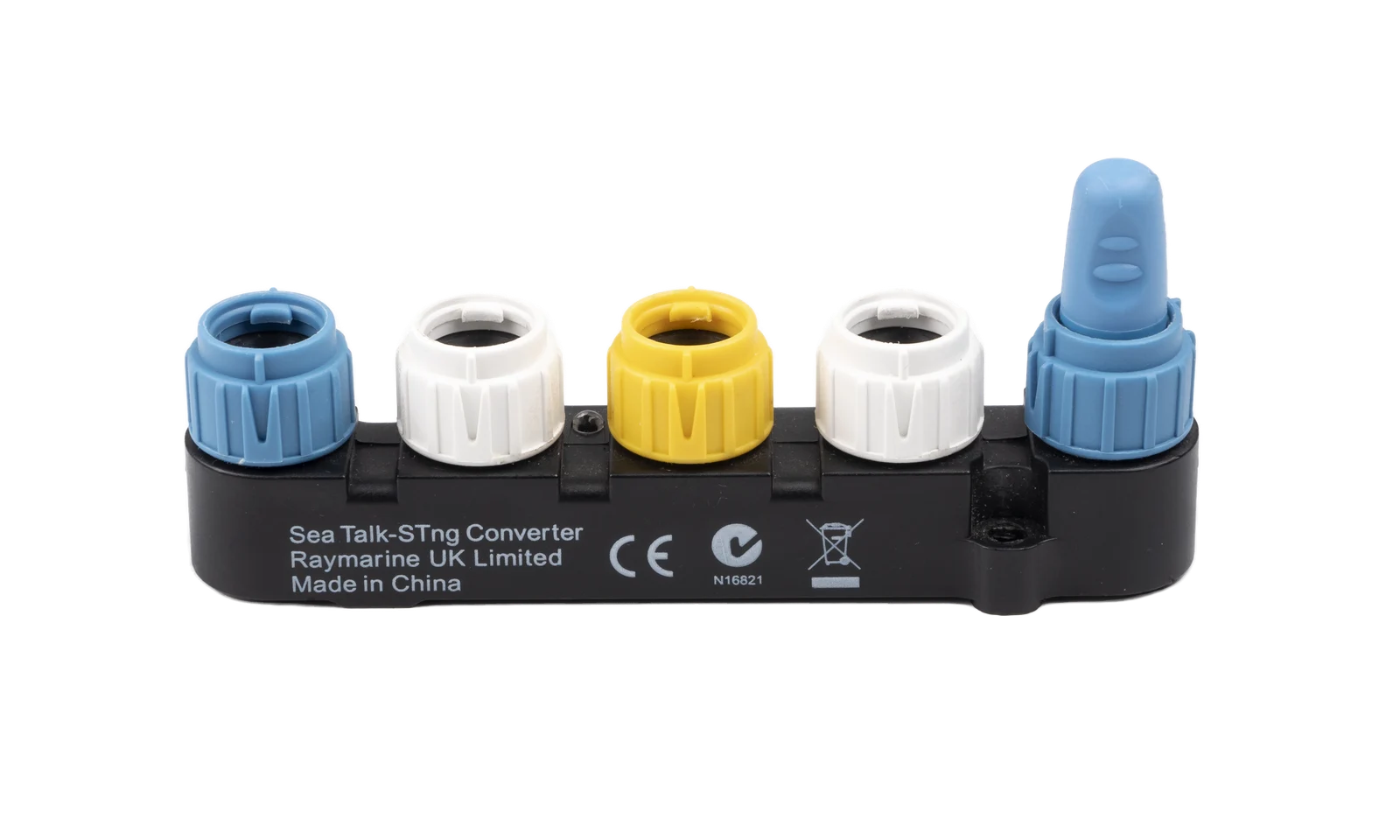

Converter detail SeaTalk 1 in SeaTalk NG with terminator ↗
Image: Raymarine

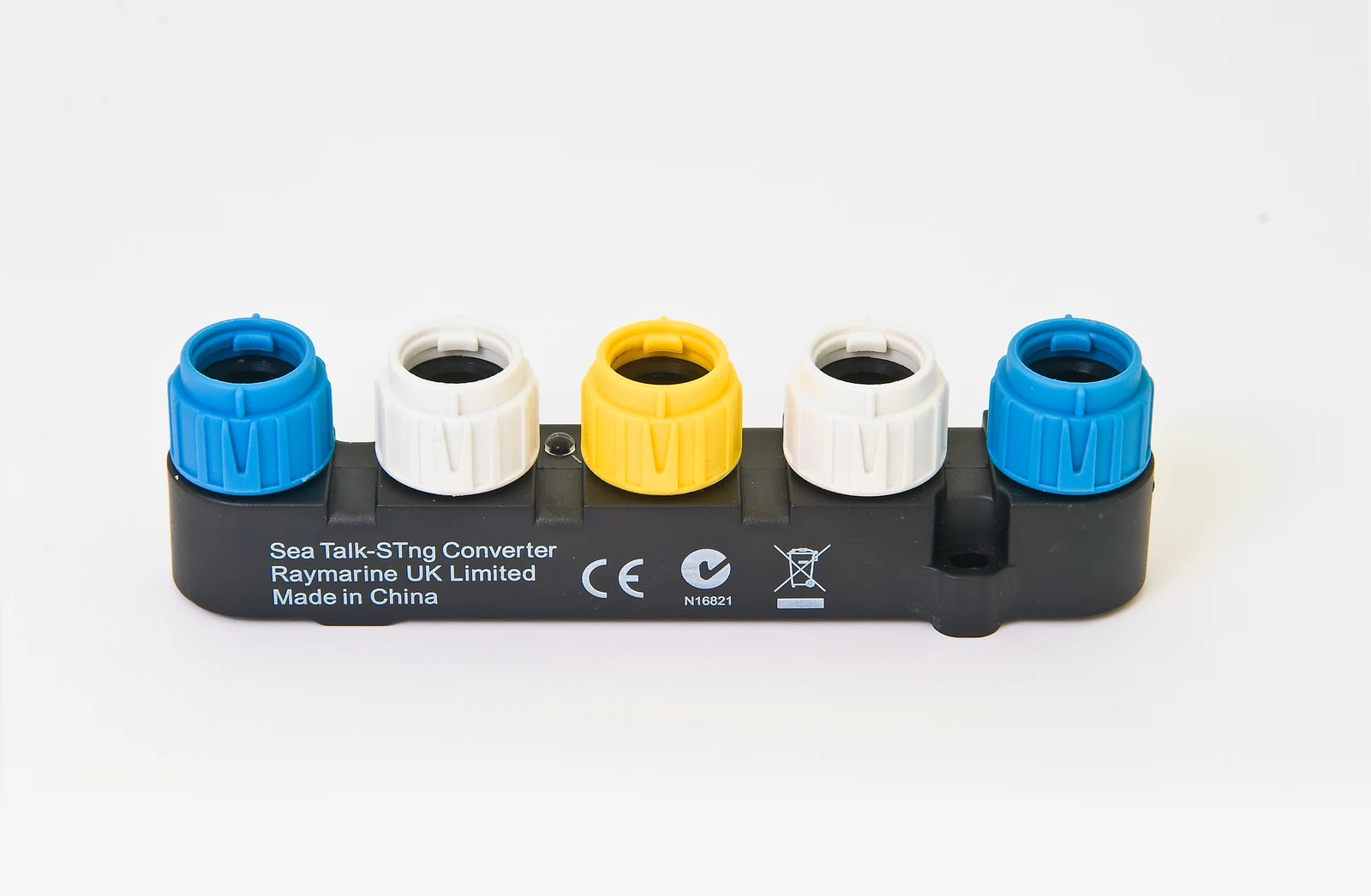

Converter SeaTalk 1 in SeaTalk NG R52131 — unit without cables ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
