Raymarine i40 BiData Pack with E26009, E26008
Home / Equipment catalogue / Fishfinders & Sonar / Raymarine i40 BiData Pack with E26009, E26008
Raymarine · Code E70145
With sensors P371 + P7

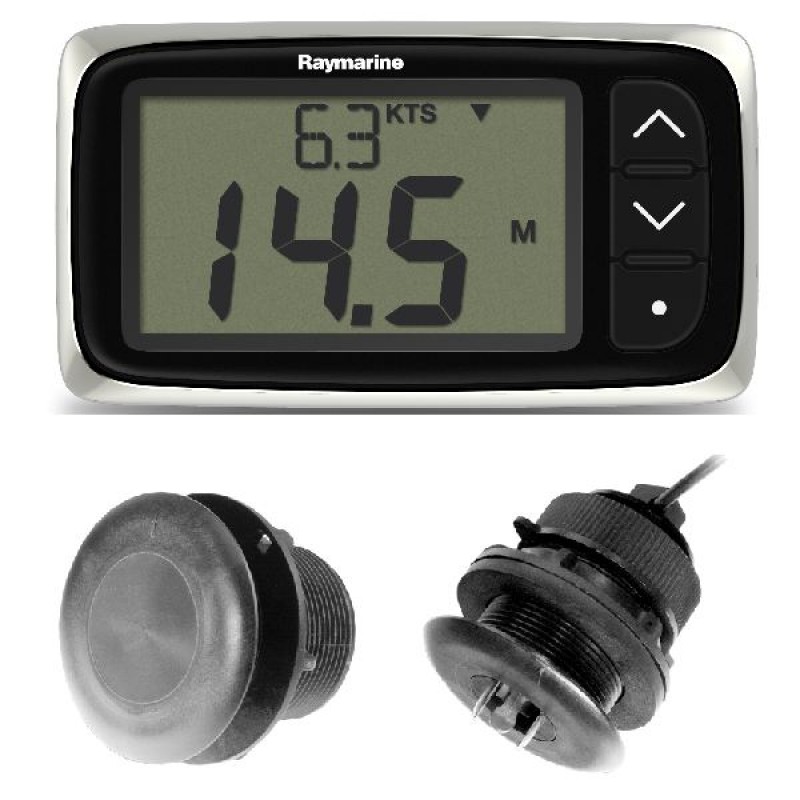

Includes Instrument i40 Bidata, Sensor speed / temperature P371, Sensor depth P7.
Transducers · Transducer
Fishfinders & Sonar · Instruments & Networks
What this version includes
Included:
Instrument i40 Bidata
Sensor speed / temperature P371
Sensor depth P7
Discover the product
transducer Raymarine i40, for through-hull installation. Part number E70145 identifies the specific connection and installation version.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Transducer
Technical specifications
Equipment type
Depth transducers
Series
i40
Connections
SeaTalk, Speed transducer, Depth Transducer
Dimensions
Length: 128 mm, Height: 72 mm, Depth: 35 mm
Protection against water
IPx6
Operating temperature
0°C to +70°C
Nominal power supply
12 V dc
Operating voltage range
10 V dc to 16 V dc
Package
With sensors P371 + P7
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
