Raymarine CP100 SONAR MODULE
Home / Equipment catalogue / Fishfinders & Sonar / Raymarine CP100 SONAR MODULE
Raymarine · Code E70204
Units sonar · Bottom imaging · Fish detection
Fishfinders & Sonar

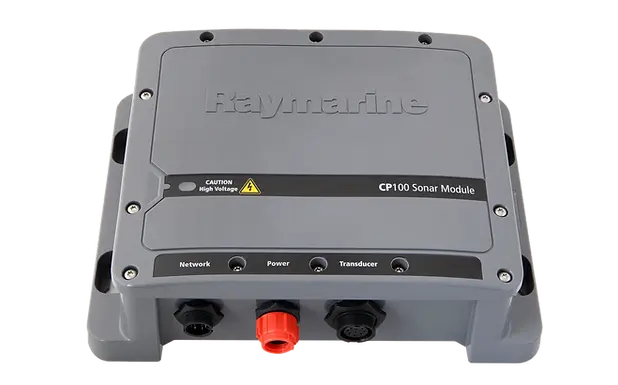

CP100 — front view and connections
Image: Raymarine
Discover the product
The CP100 is a networked CHIRP DownVision sonar module for detailed bottom imaging and observing targets beneath the vessel. It connects to a compatible display over RayNet and operates on 12 or 24 V. The transducer is selected separately according to the mounting method. Depth range depends on water conditions and installation.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
5 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
CPT-100DVS Plastic Transom Mount Chirp Transducer, Depth & Temp · A80351
CP100 · Direct
DownVision · 9-pin
No additional adapter is required for this connection.
Functions: CHIRP sonar · DownVision
Direct connection using the factory 9-pin cable. CP100 requires power and a compatible display on the RayNet network.
Check hull suitability, deadrise and mounting position separately.
CPT-110 Plastic Through Hull Chirp Transducer · A80277
CP100 · Direct
DownVision · 9-pin
No additional adapter is required for this connection.
Functions: CHIRP sonar · DownVision
Direct connection using the factory 9-pin cable. CP100 requires power and a compatible display on the RayNet network.
Check hull suitability, deadrise and mounting position separately.
CPT-120 Bronze Through Hull Chirp Transducer · A80350
CP100 · Direct
DownVision · 9-pin
No additional adapter is required for this connection.
Functions: CHIRP sonar · DownVision
Direct connection using the factory 9-pin cable. CP100 requires power and a compatible display on the RayNet network.
Check hull suitability, deadrise and mounting position separately.
CP100 SONAR MODULE · E70204
Axiom 2 RV · Direct
NETWORK · Gigabit RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: CHIRP sonar and DownVision through CP100
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires its own power supply and a suitable transducer. This record documents the module-to-display connection; the transducer is selected separately.
Minimum CPx firmware: bundle v21.0.04 (application v21.0-22, platform v21.0.20), according to the LightHouse 5 peripheral table.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
CP100 — port and package contents · Official Raymarine documentation · checked 2026-10-11
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
CP100 SONAR MODULE · E70204
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Additionally required:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: CHIRP sonar and DownVision through CP100
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires its own power supply and a suitable transducer. This record documents the module-to-display connection; the transducer is selected separately.
Minimum CPx firmware: bundle v21.0.04 (application v21.0-22, platform v21.0.20), according to the LightHouse 5 peripheral table.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
CP100 — port and package contents · Official Raymarine documentation · checked 2026-10-11
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Functions & interfaces
Bottom imaging · Fish detection
Technical specifications
Equipment type
Sonar modules
Depth range
0.6 m to 183 m depending on with the water conditions
Protection against water
IPx6, IPx7
Operating temperature
0°C to 55°C
Dimensions
Height: 162 mm, Width: 225 mm, Depth: 72 mm
Weight
0.6 kg
Consumption
5.6 W (maximum)
Nominal power supply
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
Current
1 A peak

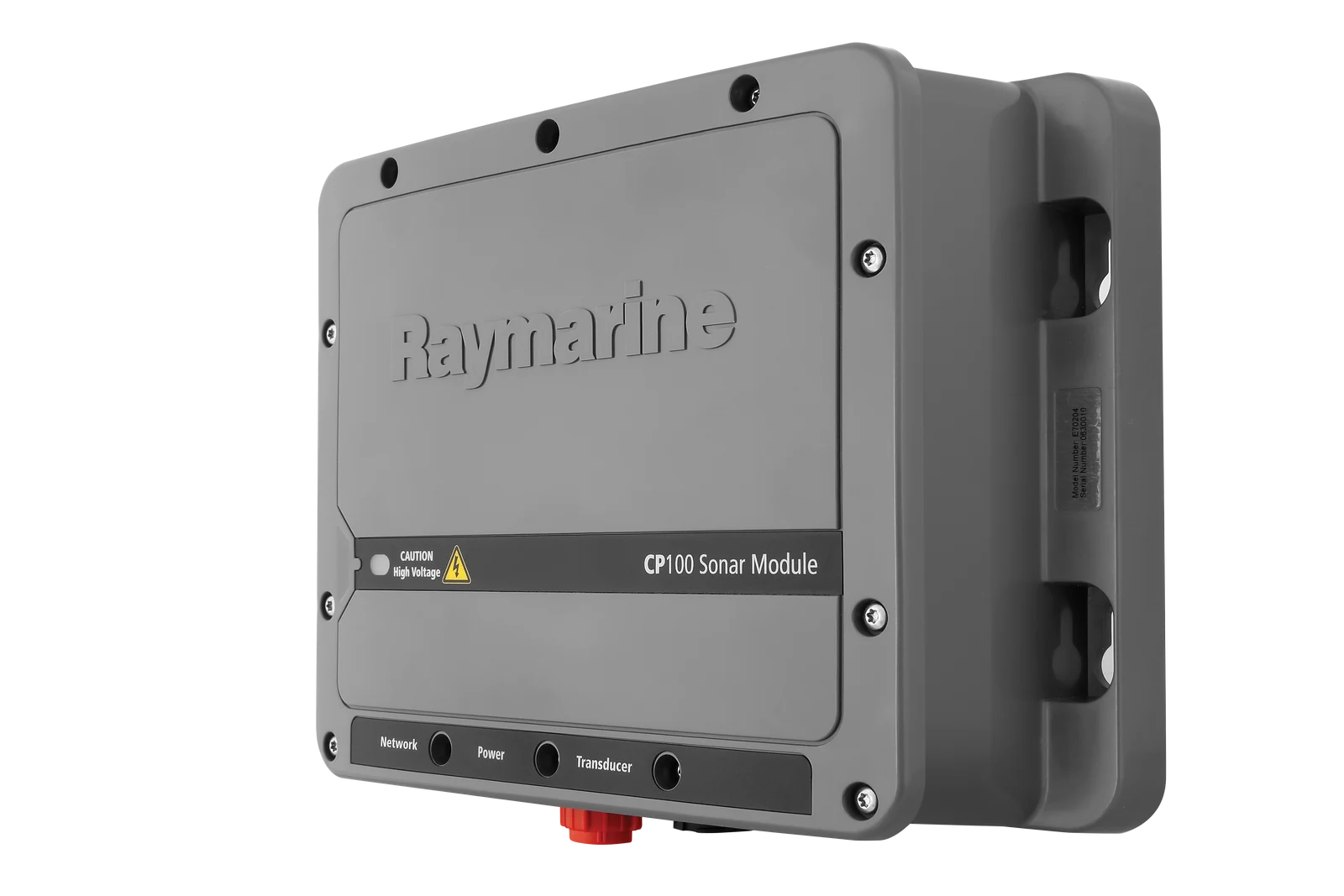

More images
