Raymarine CP570 CHIRP SONAR MODULE
Home / Equipment catalogue / Fishfinders & Sonar / Raymarine CP570 CHIRP SONAR MODULE
Raymarine · Code E70258
Units sonar · Bottom imaging · Fish detection
Fishfinders & Sonar

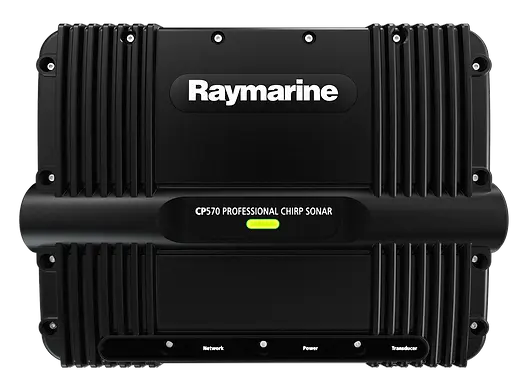

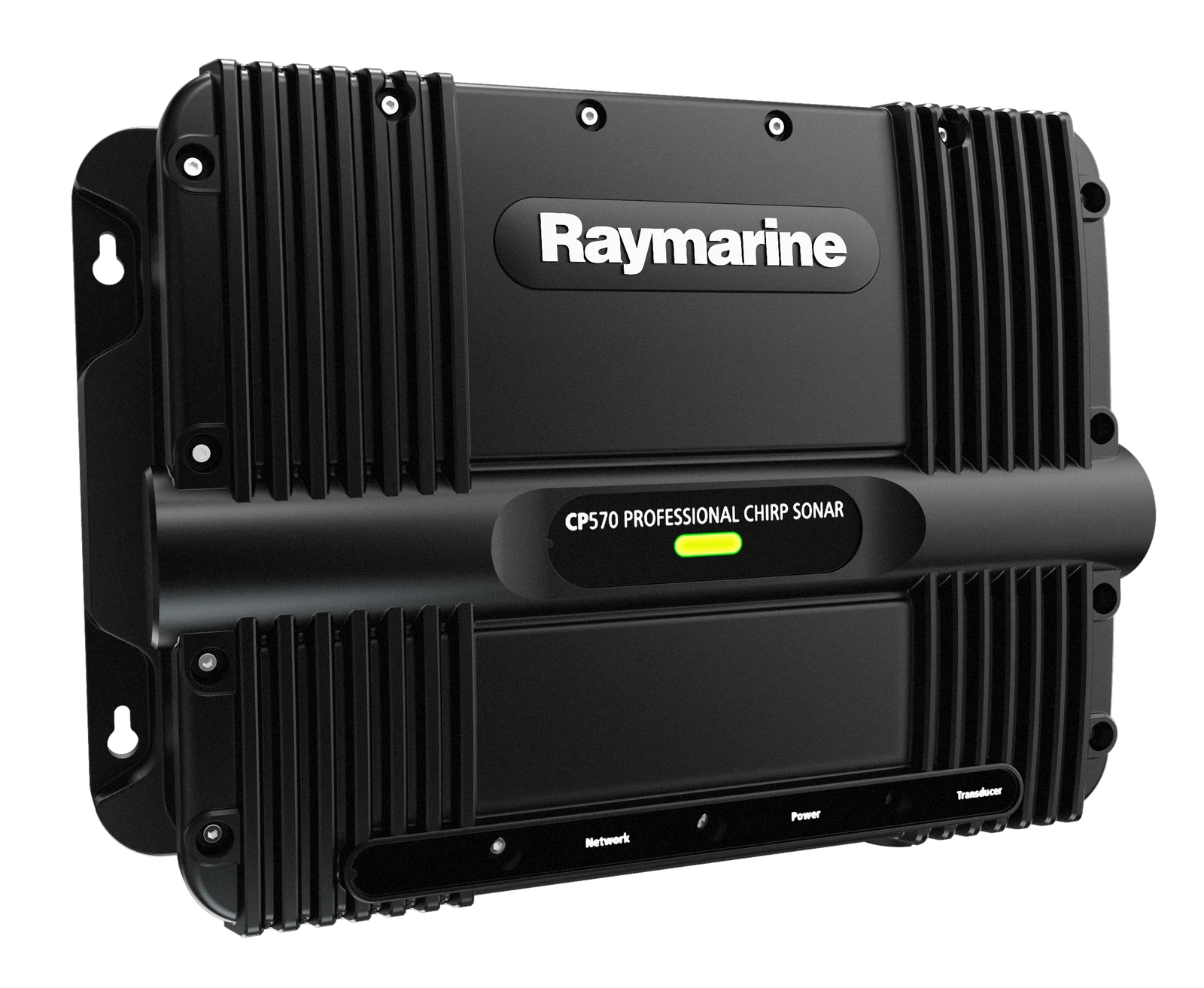

CP570 — front view of unit sonar
Image: Raymarine

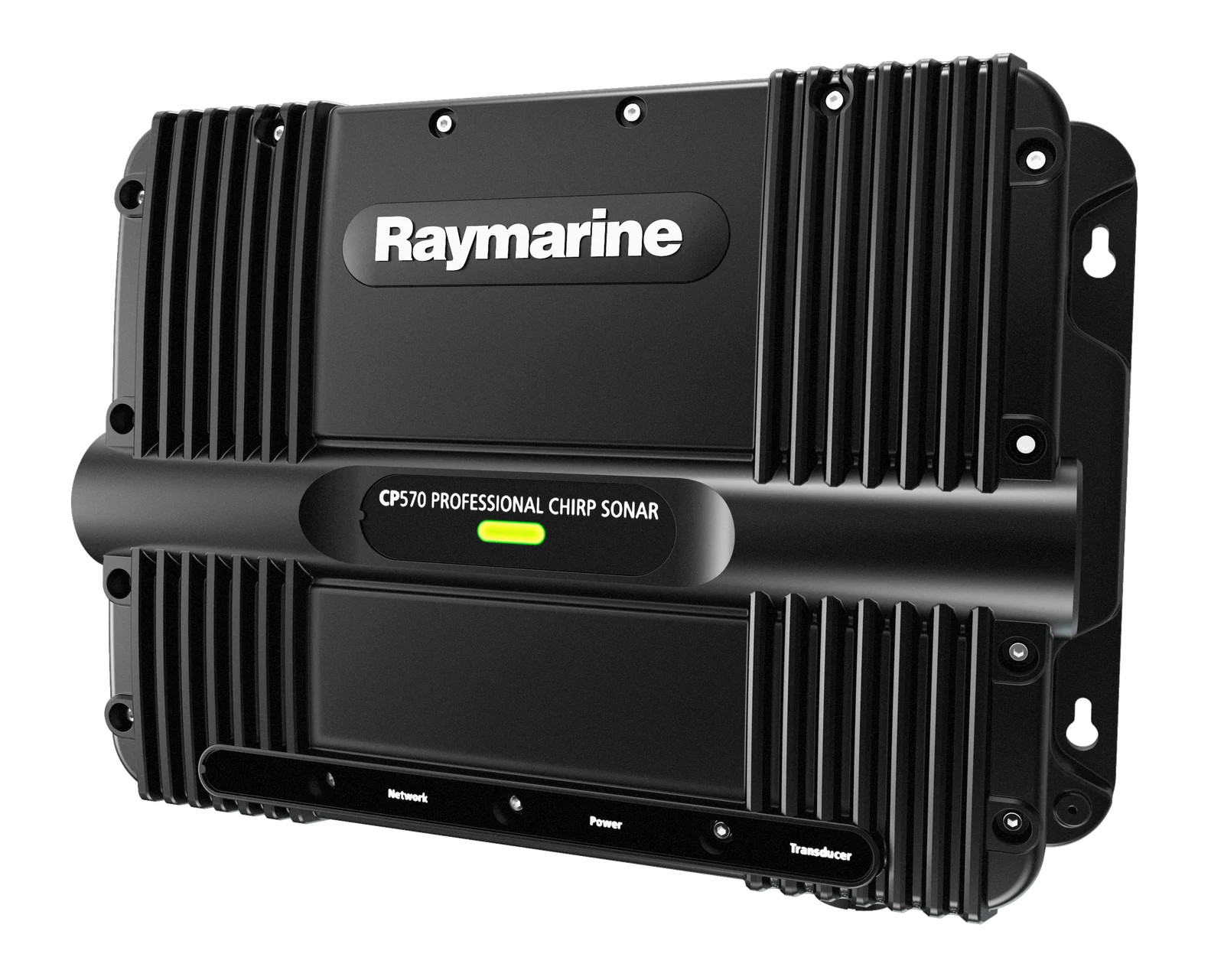

Discover the product
The CP570 is a CHIRP sonar module with two independent channels, power up to 2 kW per channel and a frequency range of 25–255 kHz. RayNet networking presents the data on compatible navigation displays. Transducers and cables are selected according to the desired frequency bands and hull; maximum depth performance is not a guarantee for every installation.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
2 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
CP570 CHIRP SONAR MODULE · E70258
Axiom 2 RV · Direct
NETWORK · Gigabit RayNet
Included with E70258:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Two independent CHIRP channels through CP570
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires its own power supply and a suitable transducer. This record documents the module-to-display connection; the transducer is selected separately.
Minimum CPx firmware: bundle v21.0.04 (application v21.0-22, platform v21.0.20), according to the LightHouse 5 peripheral table.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
CP570 — port and package contents · Official Raymarine documentation · checked 2026-10-11
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
CP570 CHIRP SONAR MODULE · E70258
Axiom 2 without built-in sonar · Direct
NETWORK · Gigabit RayNet
Included with E70258:1 × A62361 — Raynet (F) to Raynet (F) cable - 2m
Functions: Two independent CHIRP channels through CP570
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
The module requires its own power supply and a suitable transducer. This record documents the module-to-display connection; the transducer is selected separately.
Minimum CPx firmware: bundle v21.0.04 (application v21.0-22, platform v21.0.20), according to the LightHouse 5 peripheral table.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
Networking constraints · 81432 Rev 2
CP570 — port and package contents · Official Raymarine documentation · checked 2026-10-11
RayNet — cables and compatible products · Official manufacturer page · checked 2026-10-10
Functions & interfaces
Bottom imaging · Fish detection · CHIRP
Technical specifications
Equipment type
Sonar modules
Protection against water
IPx6
Operating temperature
-20°C to +50°C
Transmit power
Up to 2 KW per channel (maximum) (total 4 kW)
Frequency
25kHz to 255kHz
Depth range
0.6 m (to 3000 m (depending on with the transducer)
Connections
Power supply, RayNet 10/100 Mbit/s, transducer connection
Dimensions
Height: 248.1 mm, Width: 352.5 mm, Depth: 109.9 mm
Weight
6.35 kg
Consumption
30.6 W (Maximum)
Current
3 A RMS
Nominal power supply
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
