Raymarine Axiom XL 24 - 24" MFD DISPLAY ONLY

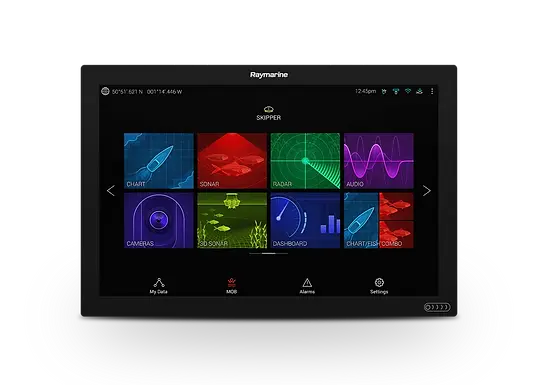

Axiom XL 24 — front view with an example of home screen. First-generation Axiom XL display unit. Application icons do not indicate that the corresponding sensors or peripherals are included.

Image: Raymarine

Discover the product

The Raymarine Axiom XL 24 - 24" MFD DISPLAY ONLY is display navigation 24″ for displaying electronic charts and planning the vessel's route. The imaging sonar requires compatible external unit sonar and transducer.

Connections & accessories

No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.

Equipment connection guide ↗

Functions & interfaces

Chart navigation · GPS/GNSS via an external receiver · Networked sonar with an additional module

Technical specifications

Equipment type
Chartplotters & MFD

Series
Axiom XL

More images

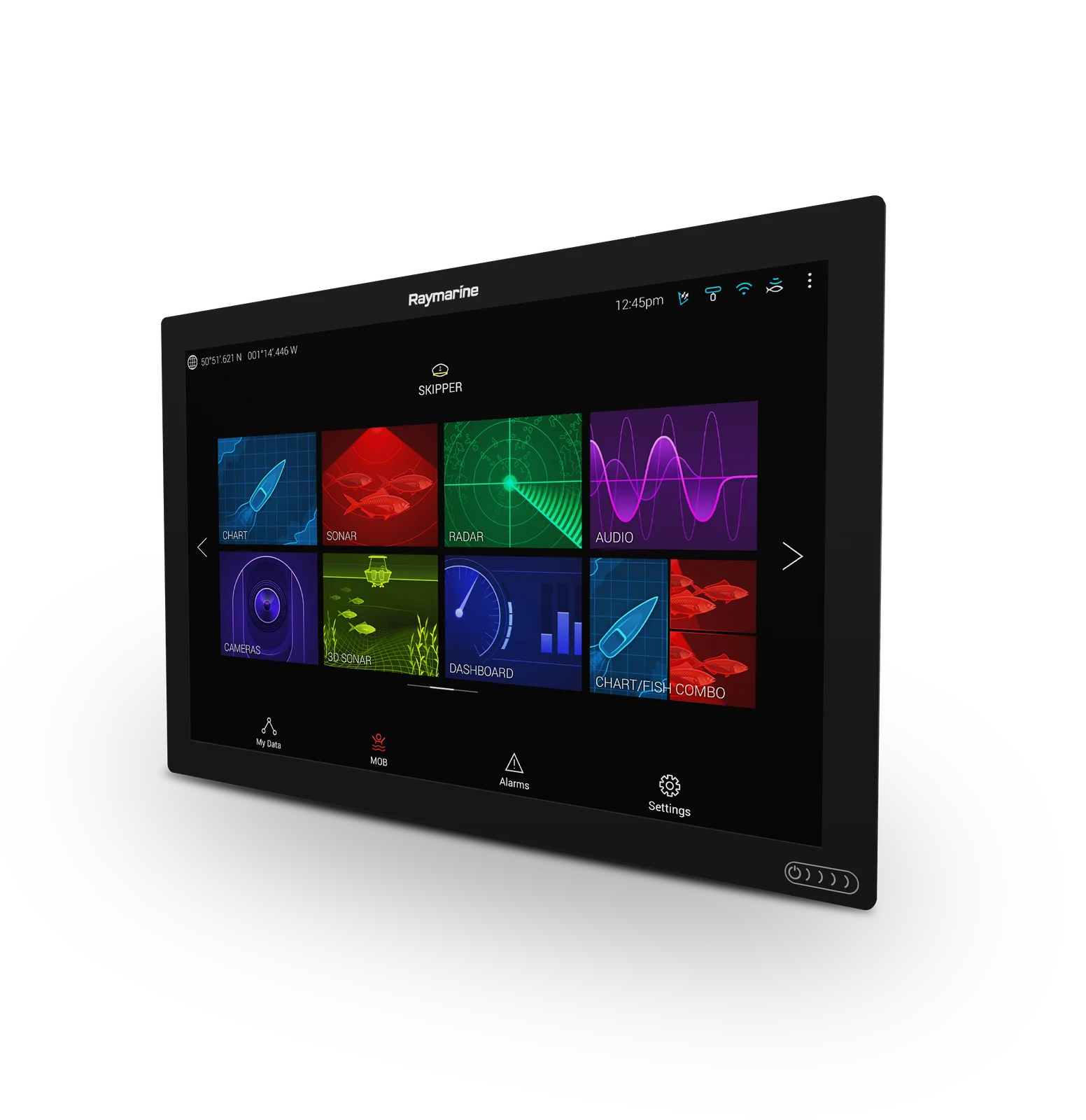

Axiom XL 24 — side view. First-generation Axiom XL display unit. Application icons do not indicate that the corresponding sensors or peripherals are included. ↗

Image: Raymarine

Two displays Axiom XL at the helm Montecarlo, together with p70Rs and i70s — representative installation. Representative installation of the range Axiom XL (original)· the version, size and other equipment may differ. ↗

Image: Raymarine

Model archive

Discontinued model

We retain these details to identify existing equipment, provide technical support and help select a suitable upgrade.
