Raymarine 45STV - 45CM SATELLITE TV SYSTEM EURO /

Exterior view of the radome Raymarine 45STV. This version LNB, the regional configuration and the operation AutoSkew are determined from the part number.

Image: Raymarine

Discover the product

Raymarine 45STV - 45CM SATELLITE TV SYSTEM EURO /, part number E70462, for reception or communication from the vessel. The final selection depends on the system, the coverage area and the installation method.

Connections & accessories

No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.

Equipment connection guide ↗

Technical specifications

Equipment type
Antennas TV & Communications

Height radome
54cm / 21.2”

Diameter radome
50cm / 19.7”

Dish diameter
45cm / 17.7”

Weight
11.6kg / 25.5lbs

Protection against water
IPX6

Receive frequency
Ku-band (10.7~12.75GHz)

Minimum EIRP
48dBW

Azimuth range
680º

Elevation range
0° to +90°

More images

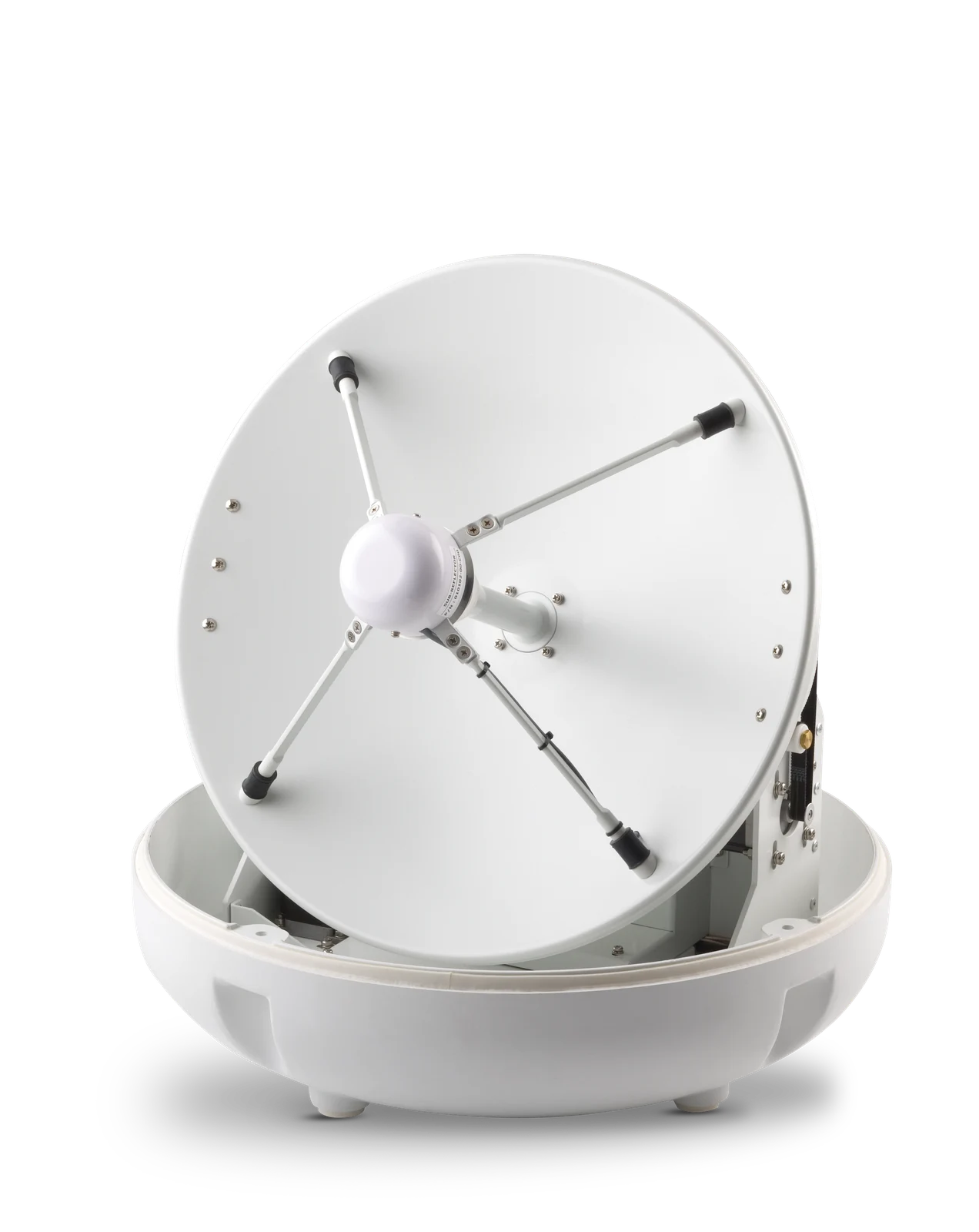

Raymarine 45STV E70462 with the dome removed to show the internal mechanism. Imaging of specific version. ↗

Image: Raymarine

Overview in the family Raymarine 37STV, 45STV and 60STV. Each part number refers to a system of the corresponding size. ↗

Image: Raymarine

Selection & compatibility

This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.

Official manufacturer page ↗

Browse the equipment

Communications ↗

Raymarine ↗

Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
