Raymarine AIS700 - CLASS B WITH SPLITTER
Home / Equipment catalogue / Communications / Raymarine AIS700 - CLASS B WITH SPLITTER
Raymarine · Code E70476
AIS · AIS
Communications · Safety at sea

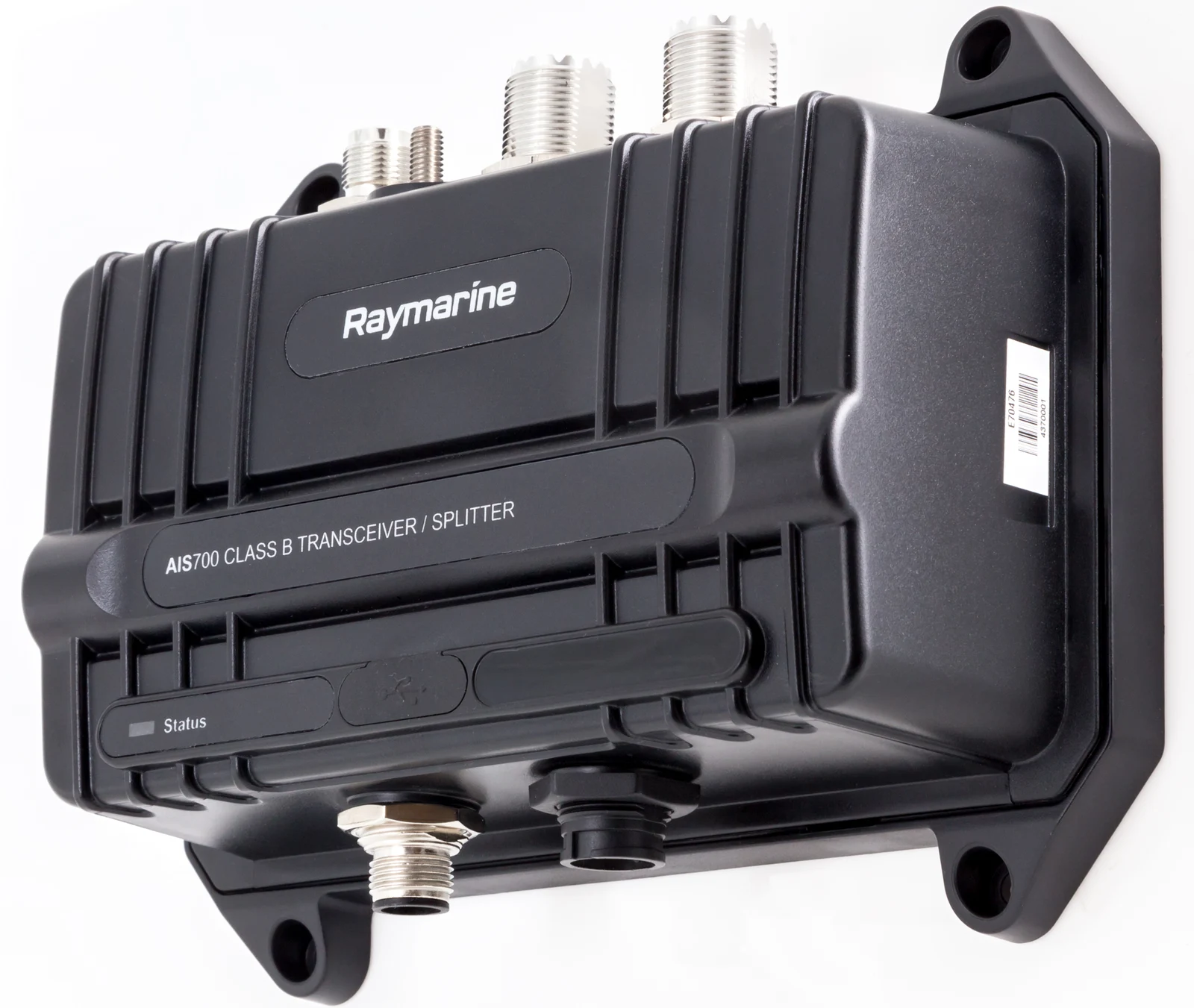

AIS700 — side view unit Class B
Image: Raymarine
Discover the product
The AIS700 is a Class B AIS transceiver using SOTDMA technology and 5 W transmit power. Its built-in splitter allows a compatible VHF antenna to be shared, while NMEA 2000 and NMEA 0183 connections transfer AIS data to navigation displays. It includes a GNSS receiver and silent mode. Installation requires correct vessel details and checks of the antenna and network.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
AIS
Technical specifications
Equipment type
AIS
Protection against water
IPx6, IPx7
Operating temperature
-15°C to +55°C
Class AIS
B (transceiver)
Technology and power AIS
5 W SOTDMA
Connection USB
Micro-B
Dimensions
Height: 132.55 mm, Width: 171.65 mm, Depth: 57 mm
Connection NMEA 2000
plug DeviceNet
Systems GNSS
GPS, GLONASS
Operating voltage range
9.6 V dc to 31.2 V dc
Consumption
3 W
Nominal power supply
12 V dc / 24 V dc
Load NMEA 2000 (LEN)
1
More images
Image: Raymarine

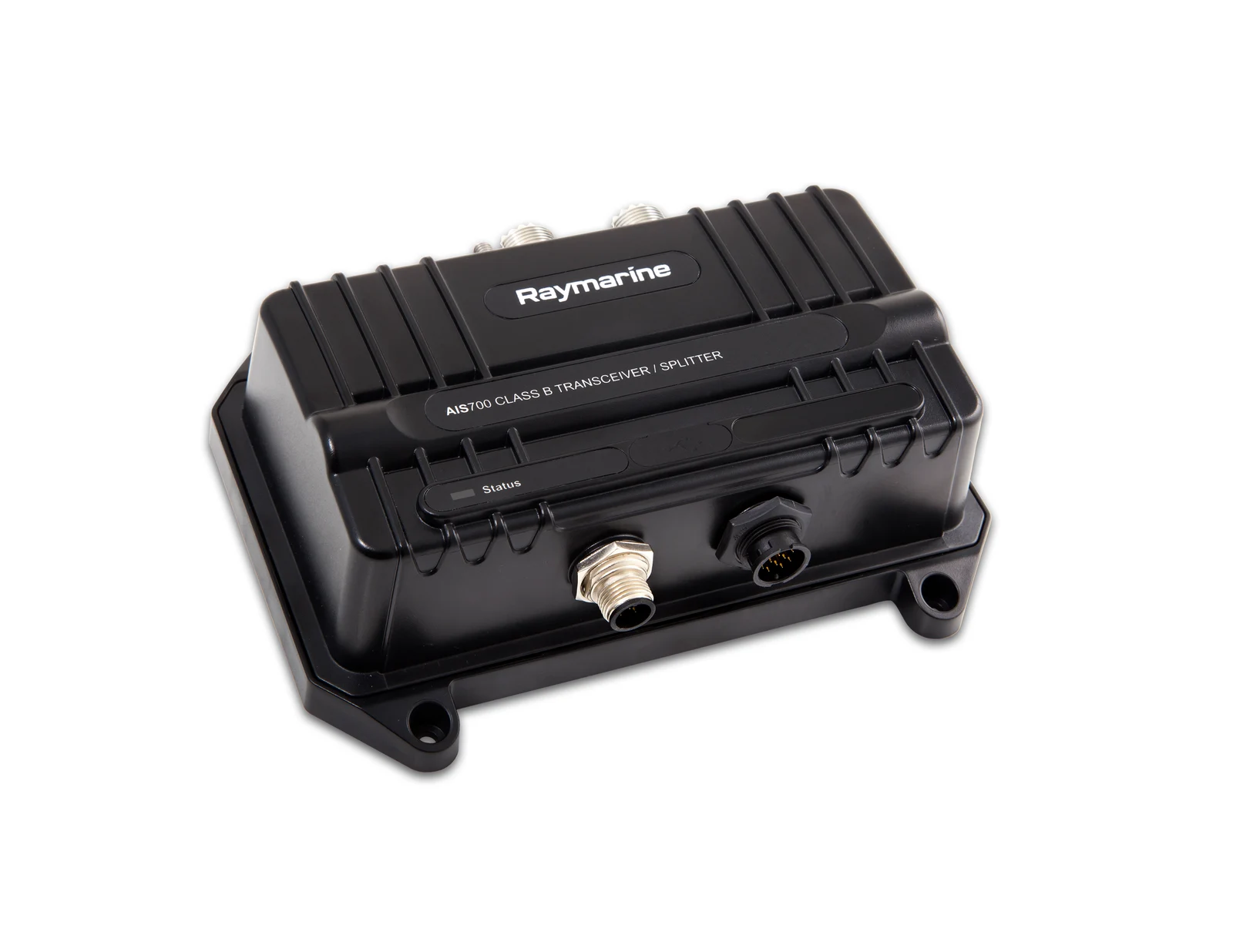

AIS700 — enclosure and connection detail ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
