Raymarine RVX1000 3D CHIRP Sonar Module
Home / Equipment catalogue / Fishfinders & Sonar / Raymarine RVX1000 3D CHIRP Sonar Module
Raymarine · Code E70511
Units sonar · Bottom imaging · Fish detection
Fishfinders & Sonar

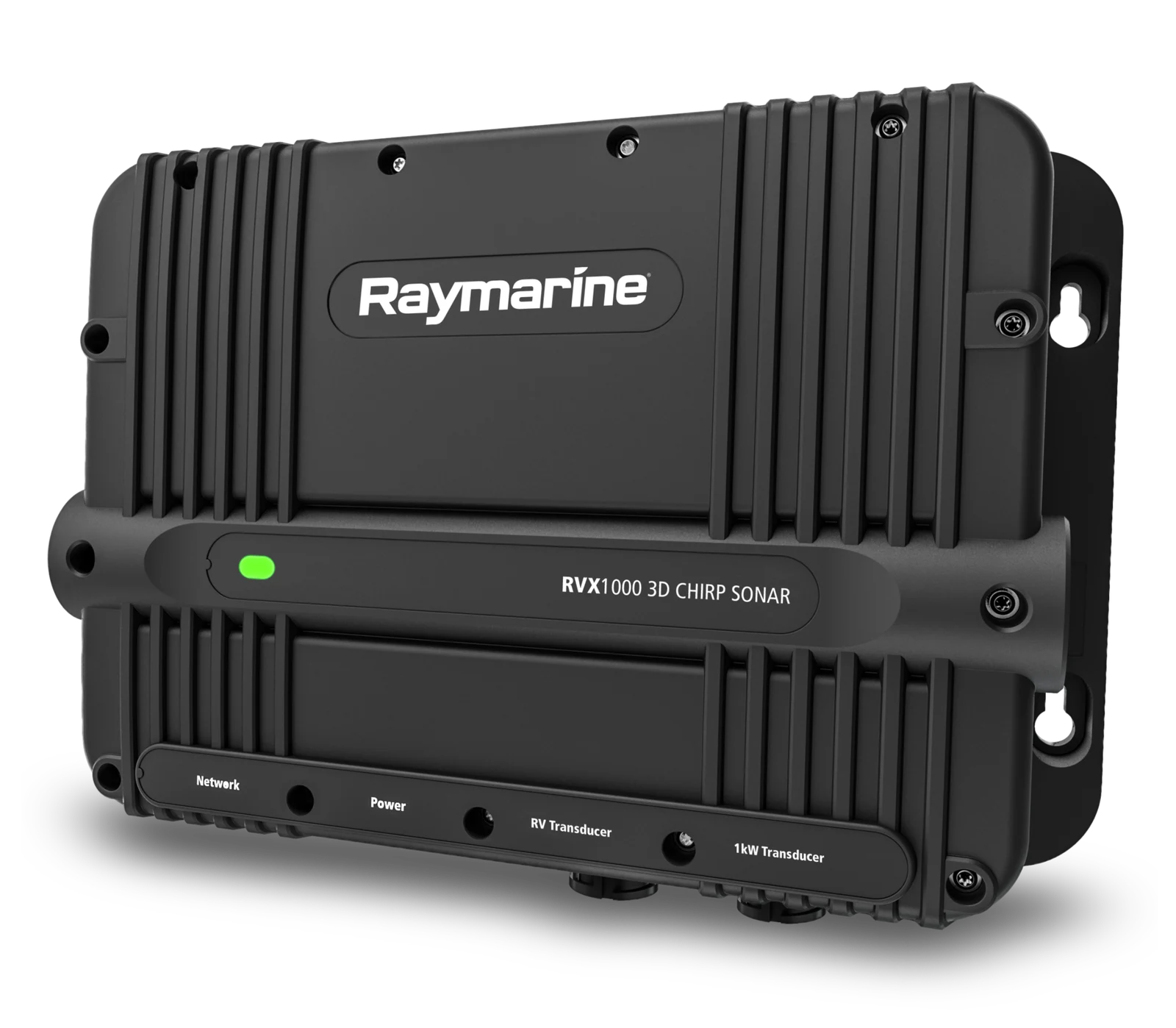

RVX1000 — front view and connections
Image: Raymarine
Discover the product
Raymarine RVX1000 3D CHIRP Sonar Module for bottom imaging and fish detection on a compatible display. System configuration depends on selecting the appropriate transducer and ensuring network compatibility.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
83 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
RV-100 RealVision 3D Transom Mount Transducer, Direct connect to Axiom MFDs 8m · A80464
RVX1000 · Direct
RealVision · 25-pin
No additional adapter is required for this connection.
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
RV-200 RealVision 3D Bronze Through Hull Transducer 0° · A80465
RVX1000 · Direct
RealVision · 25-pin
No additional adapter is required for this connection.
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
RV-300 Plastic All-In-One 0� Through Hull Transducer · A80470
RVX1000 · Direct
RealVision · 25-pin
No additional adapter is required for this connection.
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
RV-400 RealVision 3D Stainless Steel Through Hull Transducer 0° · A80615
RVX1000 · Direct
RealVision · 25-pin
No additional adapter is required for this connection.
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
Pack of RV-212 RealVision 3D Bronze Thru Hull Txds · T70318
RVX1000 · Direct
RealVision · 25-pin
Included with T70318:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max
Included with T70318:1 × A80477 — 8m RealVision 3D Transducer Extension Cable
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
Pack of RV-220 RealVision 3D Bronze Thru Hull Txds · T70319
RVX1000 · Direct
RealVision · 25-pin
Included with T70319:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max
Included with T70319:1 × A80477 — 8m RealVision 3D Transducer Extension Cable
Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar
Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.
This connection applies to the exact Raymarine code with its factory cable.
The module needs a separate power supply and a compatible display through RayNet; this path describes the transducer-to-module connection.
RealVision 3D transducers · 87349 Rev 3
Required cables — RealVision 3D transducers · 87349 Rev 3
View all 83 connections in the guide ↗
Functions & interfaces
Bottom imaging · Fish detection · CHIRP · RealVision
Technical specifications
Equipment type
Sonar modules
Protection against water
IPx6, IPx7
Operating temperature
-25°C to +55°C
Transmit power
Up to 1 kW RMS
Depth range
0.9 m to 1,524 m
Connections
Power supply, RayNet 10/100 Mbit/s, transducer connection x 2
Dimensions
Height: 188.0 mm, Width: 299.4 mm, Depth: 84.4 mm
Weight
1.59 kg
Current
2.4 A Peak; 1.2 A RMS
Nominal power supply
12 V dc / 24 V dc
Operating voltage range
10.8 V dc to 31.2 V dc
Consumption
10.4 W
More images
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
