Raymarine Ray63 VHF
Home / Equipment catalogue / Communications / Raymarine Ray63 VHF
Raymarine · Code E70516
Marine VHF · Marine VHF
Communications

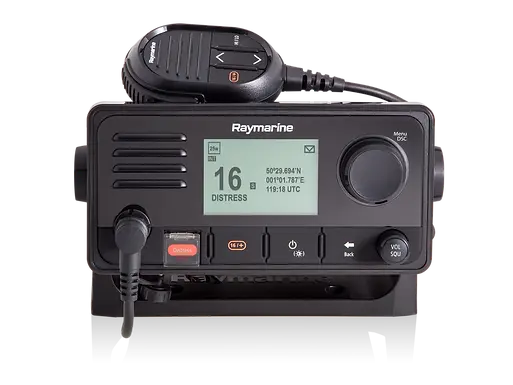

Range Ray63 / Ray73 — front view
Image: Raymarine
Discover the product
Marine transceiver VHF Raymarine Ray63 VHF for communication from the vessel. Part number E70516 applies to the specific version of the catalogue.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
7 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
Passive Speaker Ray60/63/70/73/90/91 · A80542
Ray63 · Direct
RCA passive speaker output
No additional adapter is required for this connection.
Functions: Passive external speaker at the main station.
This path uses the VHF’s own RCA output.
Ray53 / Ray63 / Ray73 — accessories by model · 81381 Rev 9 · official manual · checked 2026-10-11
Ray53 / Ray63 / Ray73 — passive speaker · 81381 Rev 9 · official manual · checked 2026-10-11
Wired Handset Ray60/63/70/73/90/91 · A80289
Ray63 · With an adapter
Second station · 12-pin socket
Additionally required:1 × A80297 — Wired Handset Adaptor Cable Ray60/63/70/73/90/91
Additionally required:1 × A80291 — Raymic 5m Extension Cable Ray60/63/70/73/90/91
Functions: Second wired Raymic station · 5 m cable.
Total cable length between handset and VHF must not exceed 50 m.
Choose one of the alternative cable-length paths. The second-station socket is used either for Raymic or for the Wireless hub.
A80289 does not include cables. Raymarine Support confirms that mounting kit R70438 is supplied with A80289.
Ray63 / Ray73 — second wired station · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — handset cables · 81381 Rev 9 · official manual · checked 2026-10-11
Ray53 / Ray63 / Ray73 — accessory part numbers · 81381 Rev 9 · official manual · checked 2026-10-11
Wired Handset Ray60/63/70/73/90/91 · A80289
Ray63 · With an adapter
Second station · 12-pin socket
Additionally required:1 × A80297 — Wired Handset Adaptor Cable Ray60/63/70/73/90/91
Additionally required:1 × A80292 — Raymic 10m Extension Cable Ray60/63/70/73/90/91
Functions: Second wired Raymic station · 10 m cable.
Total cable length between handset and VHF must not exceed 50 m.
Choose one of the alternative cable-length paths. The second-station socket is used either for Raymic or for the Wireless hub.
A80289 does not include cables. Raymarine Support confirms that mounting kit R70438 is supplied with A80289.
Ray63 / Ray73 — second wired station · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — handset cables · 81381 Rev 9 · official manual · checked 2026-10-11
Ray53 / Ray63 / Ray73 — accessory part numbers · 81381 Rev 9 · official manual · checked 2026-10-11
Wired Handset Ray60/63/70/73/90/91 · A80289
Ray63 · With an adapter
Second station · 12-pin socket
Additionally required:1 × A80297 — Wired Handset Adaptor Cable Ray60/63/70/73/90/91
Additionally required:1 × A80290 — Raymic 15m Extension Cable Ray60/63/70/73/90/91
Functions: Second wired Raymic station · 15 m cable.
Total cable length between handset and VHF must not exceed 50 m.
Choose one of the alternative cable-length paths. The second-station socket is used either for Raymic or for the Wireless hub.
A80289 does not include cables. Raymarine Support confirms that mounting kit R70438 is supplied with A80289.
Ray63 / Ray73 — second wired station · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — handset cables · 81381 Rev 9 · official manual · checked 2026-10-11
Ray53 / Ray63 / Ray73 — accessory part numbers · 81381 Rev 9 · official manual · checked 2026-10-11
Wireless Hub Ray63-73-90-91 · A80540
Ray63 · With an adapter
Second station · 12-pin socket
Additionally required:1 × R70739 — Wireless adaptor cable (Ray63/73) 220mm
Functions: Wireless hub for up to two wireless handsets.
Requires R70739 specifically for Ray63 / Ray73.
The wired main station remains available.
Ray63 / Ray73 — Wireless hub and R70739 · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — wireless accessories · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — retaining a wired station · 81381 Rev 9 · official manual · checked 2026-10-11
Wireless Handset with Holster / Charger Ray63/73/90/91 · A80544
Ray63 · Through a module
Second station · 12-pin socket
Additionally required:1 × A80540 — Wireless Hub Ray63-73-90-91
Additionally required:1 × R70739 — Wireless adaptor cable (Ray63/73) 220mm
Functions: Wireless full-function VHF control station.
Up to two A80544 handsets per hub. The charging cradle needs a separate 12 V supply according to the manual.
The wired main station remains available.
A80544 includes the charging cradle. A second hub is not required if one is already installed.
Ray63 / Ray73 — wireless accessories · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — Wireless hub and R70739 · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — wireless handset and speaker · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — retaining a wired station · 81381 Rev 9 · official manual · checked 2026-10-11
Ray63 / Ray73 — charging cradle power supply · 81381 Rev 9 · official manual · checked 2026-10-11
View all 7 connections in the guide ↗
Functions & interfaces
Marine VHF
Technical specifications
Equipment type
Marine VHF
Operating temperature
-20ºC (-4ºF) to +60ºC (140ºF)
Protection against water
IPx6 & IPx7
Connections
• 1 x NMEA 0183 • 1 x SeaTalkng ® / NMEA 2000 • 1 x Front Fistmic connection • 1 x Rear connection for 2nd station • 1 x Audio (RCA) • 1 x GNSS (GPS) antenna (TNC
Nominal power supply
12 V dc (Reverse polarity and over voltage protection)
Operating voltage range
9 V dc to 16 V dc
Frequency range
156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Transmit power
• Low power setting — 1 W • High power setting — 25 W
Systems GNSS
• GPS • GLONASS • * Beidou
More images

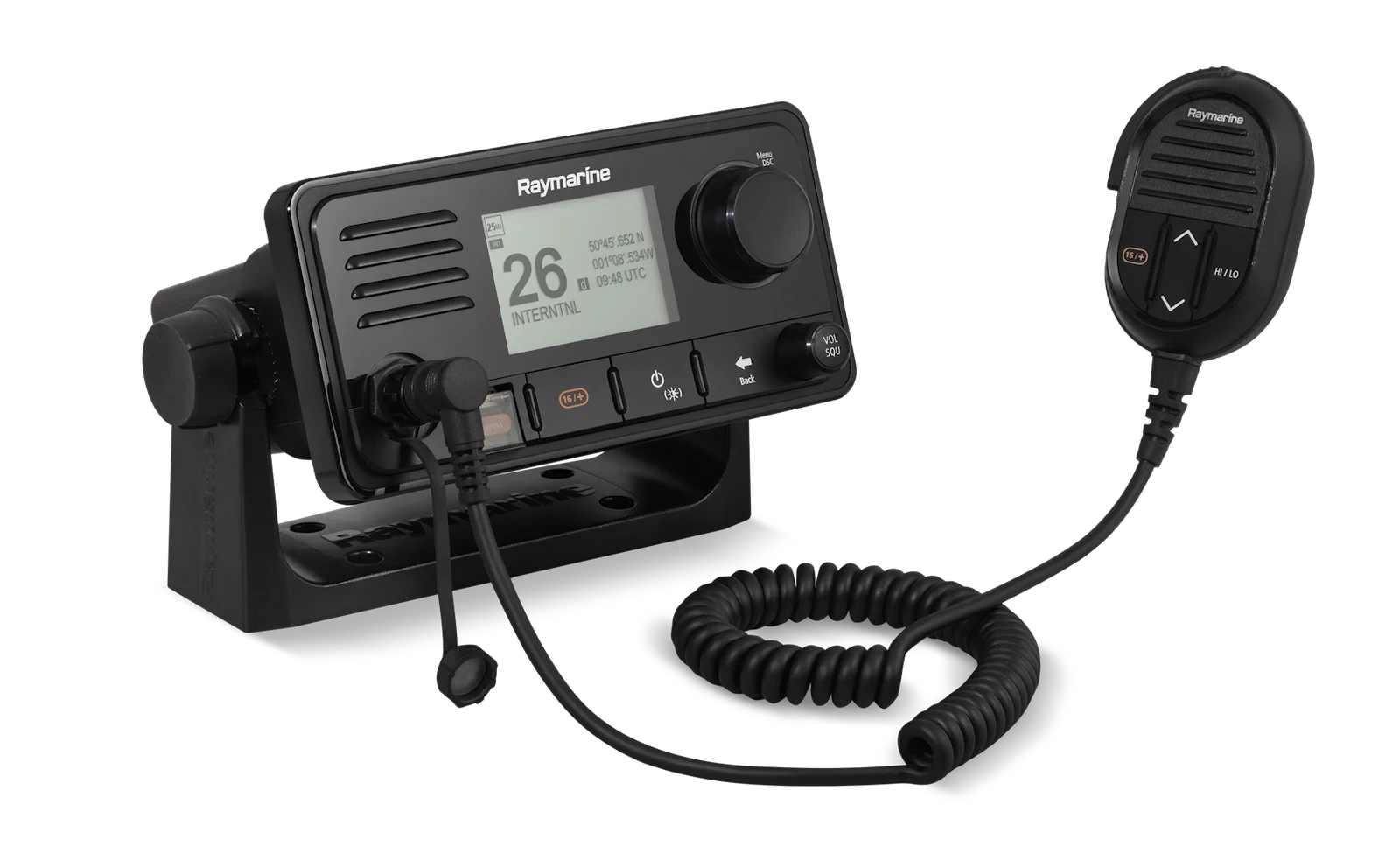

Range Ray63 / Ray73 — side view with microphone ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
