Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Home / Equipment catalogue / Instruments & Networks / Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs
Raymarine · Code E70592
Networks & Interfaces · Digital load management · NMEA 2000
Instruments & Networks · Energy & Electrical
YachtSense Master E70592 — left side view with representative display on the built-in display. The unit is shown without the separate power supply and other package accessories.
Image: Raymarine
Discover the product
Interface unit Raymarine YachtSense Master Unit (12v or 24v) with 2 x J1939, 2 x RS485, Ethernet & STNG inputs for the vessel's electronics network. Select according to the protocols and connections supported by the specific version.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Digital load management · NMEA 2000
Interface:NMEA 2000
Technical specifications
Equipment type
Networks & Interfaces
Nominal power supply
12 V dc / 24 V dc
Operating voltage range
8 V dc to 32 V dc
Unit dimensions H/W/D excluding busbars
165 mm x 81.00 mm x 75.50 mm
Weight
0.37 Kg
Diagonal
1.8 in
Resolution
128 x 160

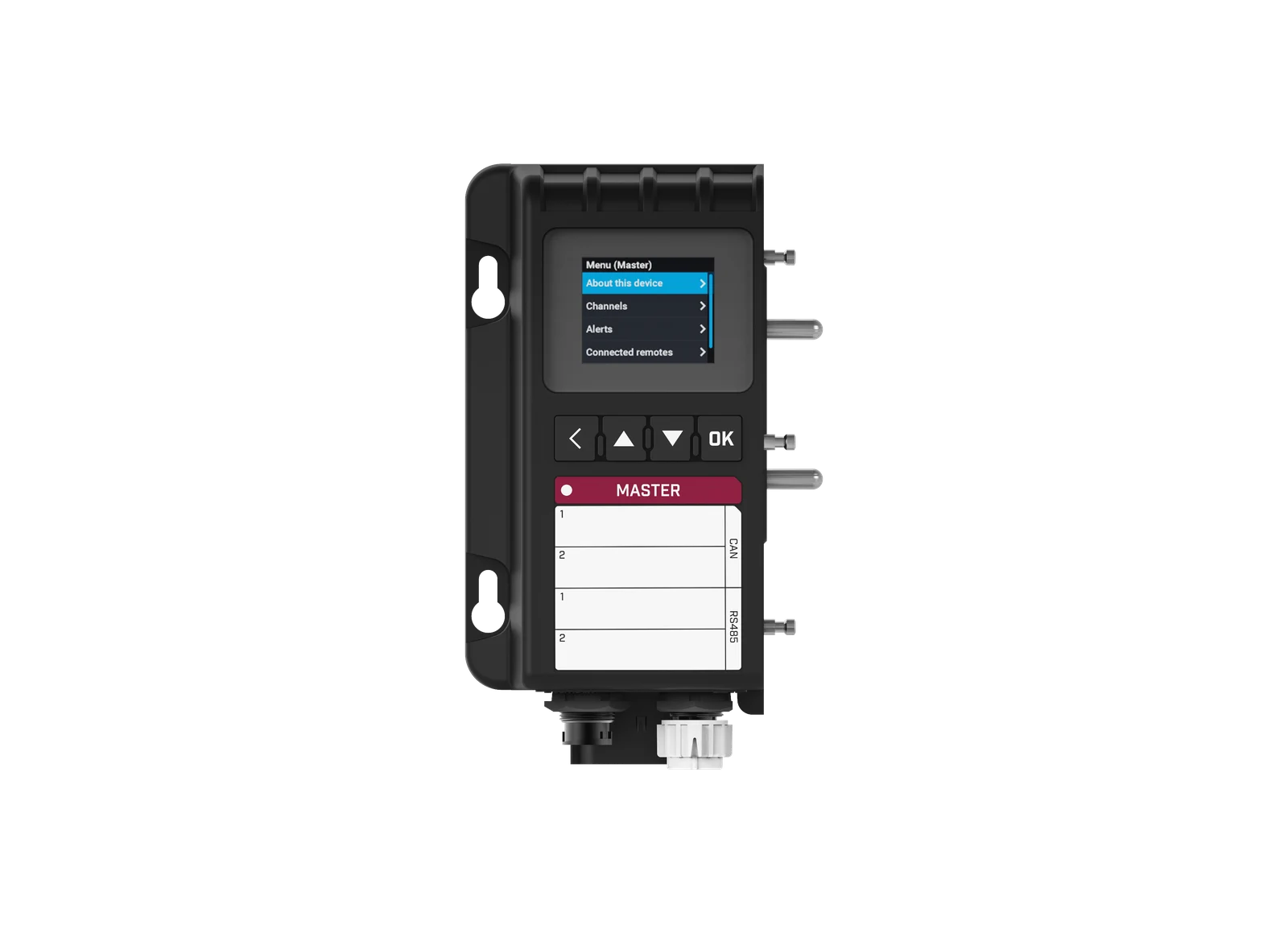

More images
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
