Raymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs
Home / Equipment catalogue / Instruments & Networks / Raymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs
Raymarine · Code E70594
Instruments & Sensors · Digital load management
Instruments & Networks · Energy & Electrical

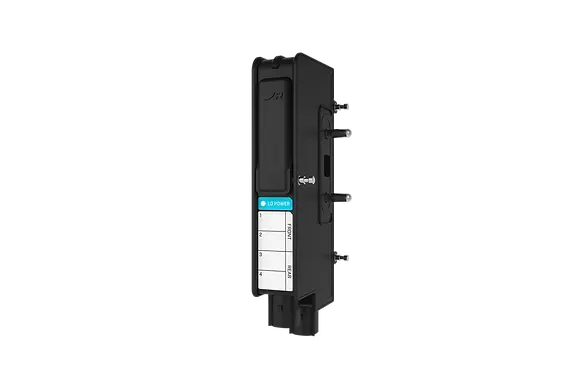

YachtSense Low Power E70594 — right-hand side view.
Image: Raymarine
Discover the product
Instrument or sensor Raymarine YachtSense Low Power Output Module with 4 x 10 Amp Outputs for monitoring vessel data. The connection and required additional equipment depend on the specific version E70594.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Digital load management
Technical specifications
Equipment type
Instruments & Sensors
Nominal power supply
12 V dc / 24 V dc
Operating voltage range
8 V dc to 32 V dc
Maximum current output
40 A (10 A per channel)
Minimum current output
50 mA
Communication unit
Internal connection 6 pins
Unit dimensions H/W/D excluding busbars
172 mm x 28.00 mm x 76.50 mm
Weight
0.27 Kg
More images

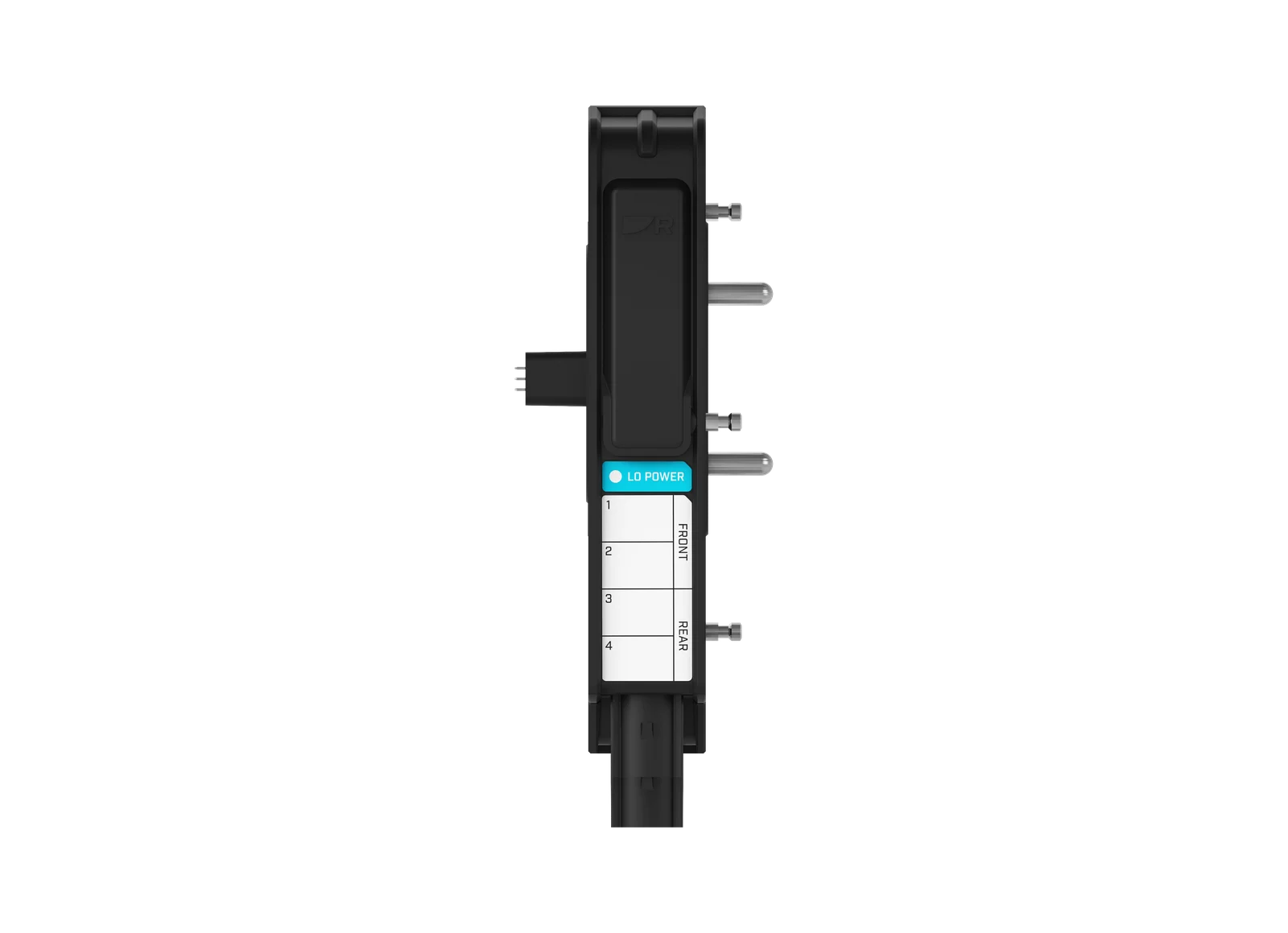

YachtSense Low Power E70594 — front view. ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
