Raymarine AIS4000 Transponder Bundle
Home / Equipment catalogue / Communications / Raymarine AIS4000 Transponder Bundle
Raymarine · Code E70601
AIS · AIS
Communications · Safety at sea

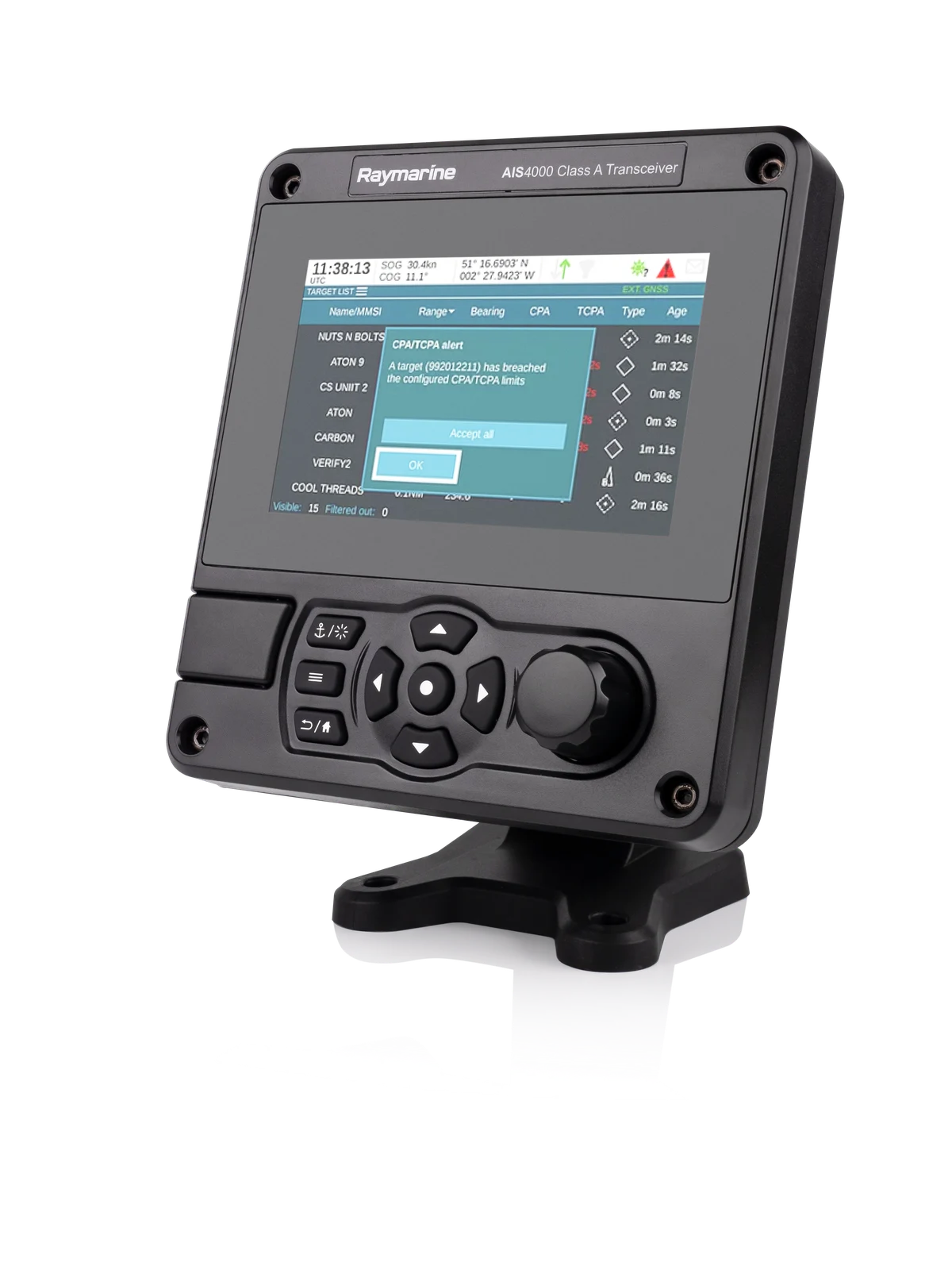

AIS4000 — main unit with representative display alert
Image: Raymarine
Discover the product
The AIS4000 is a professional Class A AIS transceiver with a 5-inch colour display and integrated controls. It supports 1 or 12,5 W transmission, a GNSS receiver and connections via NMEA 0183 and NMEA 2000. The package includes a GNSS antenna and interface cables. Configuration and installation requirements must be checked for the specific vessel category.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
AIS
Technical specifications
Equipment type
AIS
Dimensions
152 mm × 165 mm × 70 mm
Weight
1 kg
Power supply
12 to 24 VDC
Consumption
0.5A at 12v (6W)
NMEA 2000
NMEA 2000 micro connector
Frequency
156.025 MHz to 162.025 MHz
Transmit power
1 W or 12.5 W (automatic)
Systems GNSS
Supports parallel dual mode operation from GPS and GLONASS
Display
5” 800 × 480 full color LCD display
Protection against water
IPx6 and IPx7-rated for water ingress
Operating temperature
-15°c to +55°c
More images
Image: Raymarine

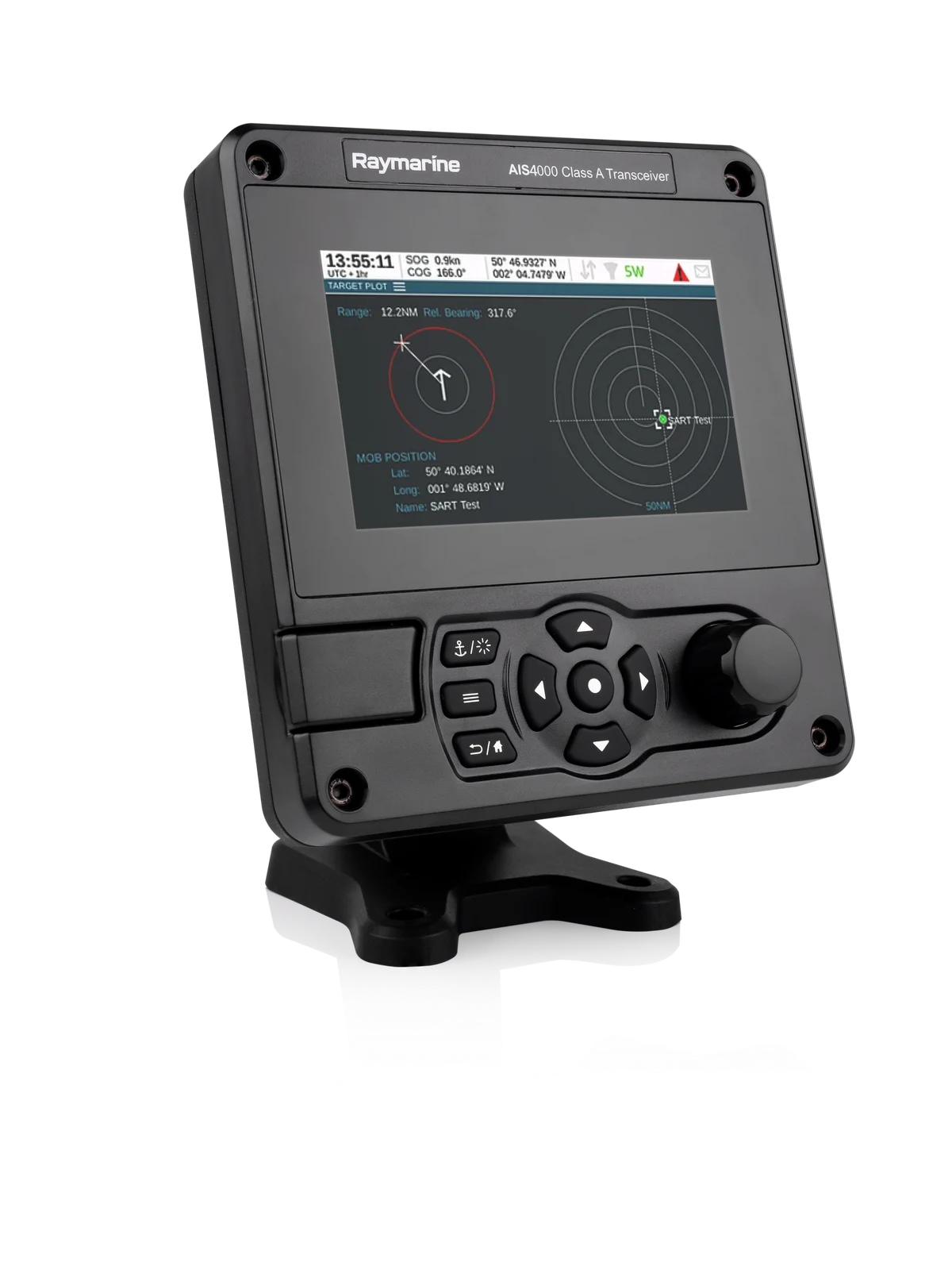

AIS4000 — right view with example display MOB ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
