Raymarine Alpha 9" Performance Display
Home / Equipment catalogue / Instruments & Networks / Raymarine Alpha 9" Performance Display
Raymarine · Code E70650
Instruments & Sensors · Vessel data
Instruments & Networks
Alpha 9 — front horizontal view with a light colour theme. Representative display Alpha 3.0. Alpha operation requires Axiom; the autopilot control shown requires a compatible Evolution system.
Image: Raymarine
Discover the product
The Alpha 9 is a 9-inch touchscreen instrument display for clearly presenting sailing, navigation and engine data. Its 1500 nits brightness and horizontal or vertical mounting options suit helm or mast installation. It operates within an Axiom network over RayNet, with up to four Alpha displays connected in a daisy chain. The power and data cable is selected separately.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Vessel data
Technical specifications
Equipment type
Instruments & Sensors
Display
9″ IPS TFT LCD
Resolution
1280 × 720
Brightness
1500 nits
Power supply
12 / 24 V DC
Voltage range
10,8–32 V DC
Maximum consumption
12 W
Weight
1,18 kg
Network
RayNet Ethernet · daisy chain of up to 4 displays
Protection
IPX6 / IPX7
Operating requirement
Networked chartplotter Axiom· power cable/data separately

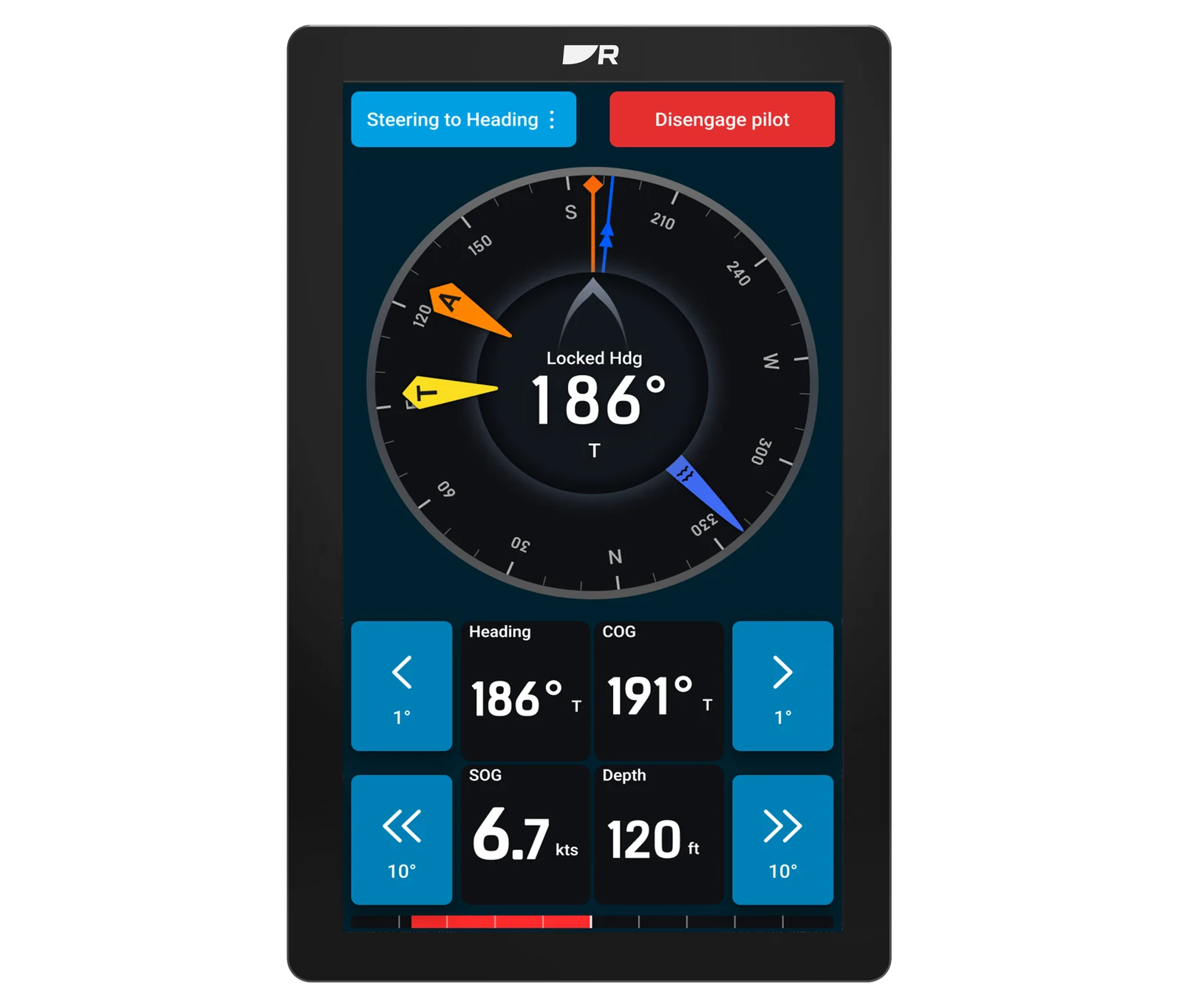

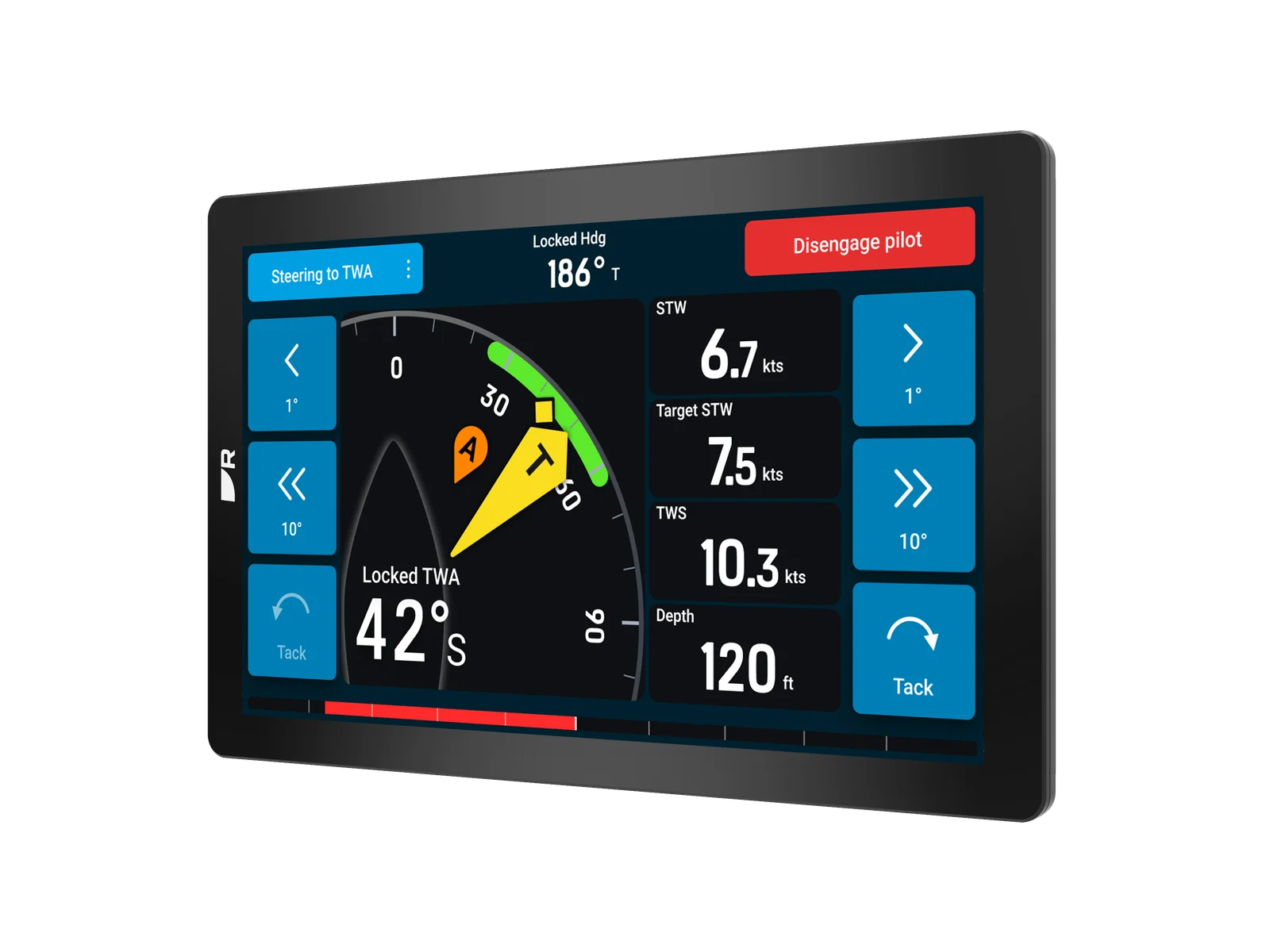

More images
Image: Raymarine
Image: Raymarine
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
