Raymarine CAM300 Eyeball CCTV Day and Night Video Camera (IP Connected)
Home / Equipment catalogue / Cameras & Monitoring / Raymarine CAM300 Eyeball CCTV Day and Night Video Camera (IP Connected)
Raymarine · Code E70660
Cameras & Video
Cameras & Monitoring
Discover the product
System camera / video Raymarine CAM300 Eyeball CCTV Day and Night Video Camera (IP Connected) for surveillance from the vessel. Checked the compatibility with the display and the network of installation.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
2 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
CAM300 Eyeball CCTV Day and Night Video Camera (IP Connected) · E70660
Axiom 2 RV · With an adapter
NETWORK · Gigabit RayNet
Additionally required:1 × 4115028 — Connector - RJ45 Waterproof Enclosure
Additionally required:1 × A62360 — RayNet (F) to RJ45 (M) cable - 1m
Functions: Live video from CAM300
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
This path requires a separate 12 V dc supply to CAM300. Axiom 2’s RayNet port does not power the camera.
ClearCruise Augmented Reality additionally requires AR200 E70537, calibration and correct mounting.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
CAM300 — wired connection without PoE · 81411 Rev 4
ClearCruise compatible cameras · 81432 Rev 2
CAM300 Eyeball CCTV Day and Night Video Camera (IP Connected) · E70660
Axiom 2 without built-in sonar · With an adapter
NETWORK · Gigabit RayNet
Additionally required:1 × 4115028 — Connector - RJ45 Waterproof Enclosure
Additionally required:1 × A62360 — RayNet (F) to RJ45 (M) cable - 1m
Functions: Live video from CAM300
All displays on the same network need the same compatible LightHouse version. LightHouse 4 and 5 must not be mixed; first-generation Axiom/Axiom+/Pro/XL remain on LightHouse 4.
This path requires a separate 12 V dc supply to CAM300. Axiom 2’s RayNet port does not power the camera.
ClearCruise Augmented Reality additionally requires AR200 E70537, calibration and correct mounting.
Network connections · 87504 Rev 1
Hardware and software compatibility · 81432 Rev 2
CAM300 — wired connection without PoE · 81411 Rev 4
ClearCruise compatible cameras · 81432 Rev 2
Technical specifications
Equipment type
Cameras & Video
Field of view
1.8mm Standard (125° HFOV x 70° VFOV)
Nominal power supply
12 V dc
Operating voltage range
10.8 V dc to 15.6 V dc
Consumption
1 W Nominal @ 12 V DC / 1.8 W Maximum (LEDs ON)
Current
< 150 mA (Maximum) @ 12 V dc
Protection against water
IP66
Operating temperature
-20 °C to +65 °C
Dimensions
Base diameter: 59.5 mm, Height: 52.9 mm
Weight
0.420 kg
Infrared lighting
6 x 850nm Infrared - 10 meter range
More images

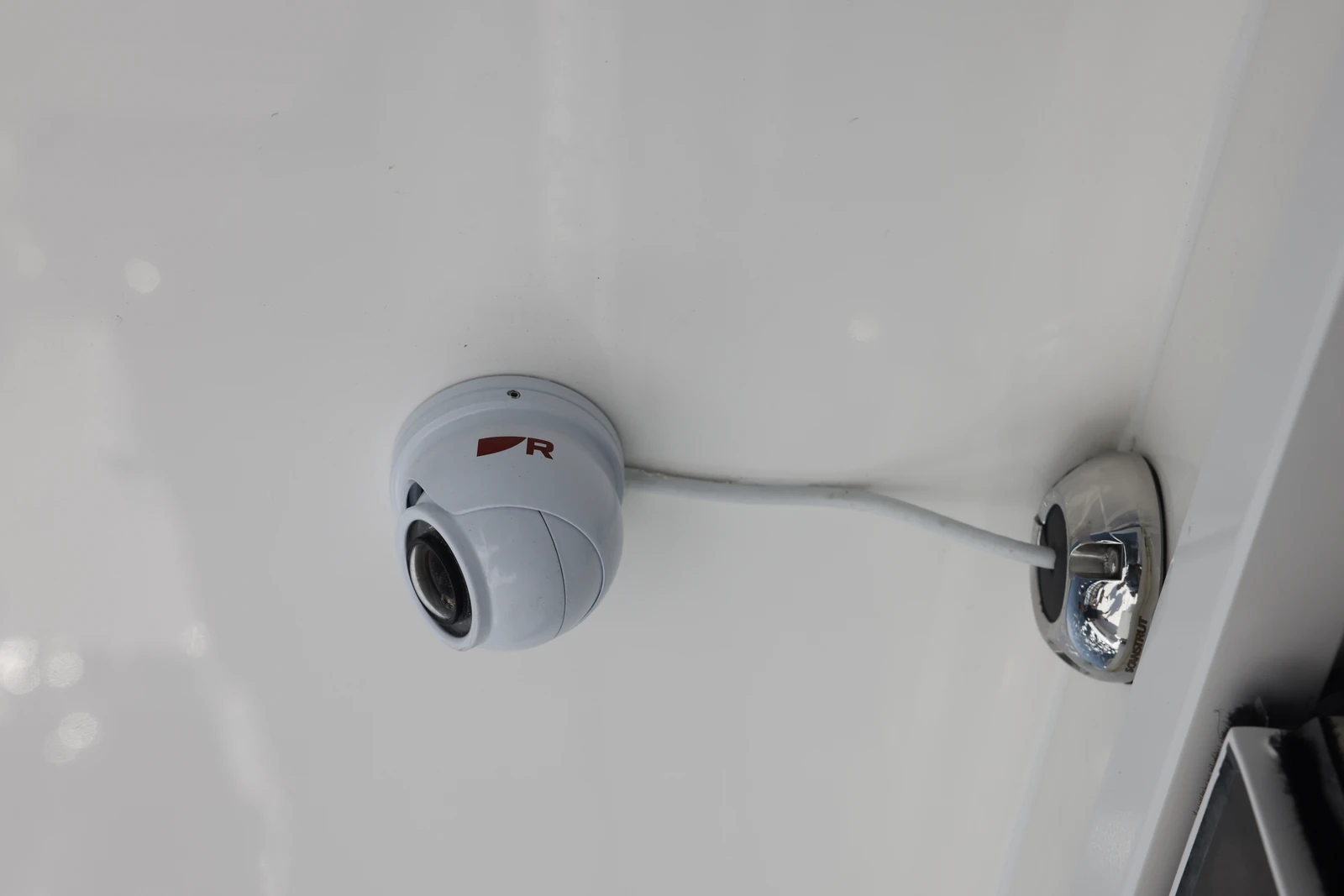

Camera CAM300 installed on board. ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
