Raymarine RSW - Smart Wind Transducer, Short Arm with 30m Cable
Home / Equipment catalogue / Instruments & Networks / Raymarine RSW - Smart Wind Transducer, Short Arm with 30m Cable
Raymarine · Code E70670
Instruments & Sensors · Vessel data
Instruments & Networks
RSW — side view of the wind sensor with short arm. The sensor is shown without the other E70670 components.
Image: Raymarine
Discover the product
Instrument or sensor Raymarine RSW - Smart Wind Transducer, Short Arm with 30m Cable for wind monitoring. The connection and required additional equipment depend on the specific version E70670.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
4 documented connections · Sources checked: 2026-10-11
Explore connections, components & diagrams ↗
Equipment connection guide ↗
RSW - Smart Wind Transducer, Short Arm with 30m Cable · E70670
i70s · Direct
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Apparent wind speed and angle
The supplied wired gateway connects to the shared, powered SeaTalk NG / NMEA 2000 backbone.
i70s requires v3.23 or later. True wind requires speed through water and heading; ground wind requires GNSS.
E70670 includes the corresponding wired gateway; iTC-5 is not required.
RSW-Series transducers · 87420 Rev 2
RSW and i70s — connection, software and data · 87420 Rev 2
RSW - Smart Wind Transducer, Short Arm with 30m Cable · E70670
i70s · wind and separate depth/speed transducer pack · Direct
Pack i70s · SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Included with T70586:1 × A06038 — Spur Cable 400mm
Functions: Apparent wind speed and angle
The supplied wired gateway connects to the shared, powered SeaTalk NG / NMEA 2000 backbone.
i70s requires v3.23 or later. True wind requires speed through water and heading; ground wind requires GNSS.
T70586 pack includes: 1 × i70s, 1 × short-arm wind transducer, 1 × iTC-5, 1 × ST900/P120 speed/temperature transducer, 1 × D800 depth transducer.
This path applies to the i70s in the pack. Check the transducers already supplied before selecting a replacement or additional equipment; included items do not need to be purchased again.
E70670 includes the corresponding wired gateway; iTC-5 is not required.
i70s connects to a SeaTalk NG backbone. Backbone parts in the box do not by themselves establish that the complete installation has everything it needs.
RSW-Series transducers · 87420 Rev 2
RSW and i70s — connection, software and data · 87420 Rev 2
RSW - Smart Wind Transducer, Short Arm with 30m Cable · E70670
i70s · wind and DST pack · Direct
Pack i70s · SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Included with T70216:1 × A06038 — Spur Cable 400mm
Functions: Apparent wind speed and angle
The supplied wired gateway connects to the shared, powered SeaTalk NG / NMEA 2000 backbone.
i70s requires v3.23 or later. True wind requires speed through water and heading; ground wind requires GNSS.
T70216 pack includes: 1 × i70s, 1 × wind transducer, 1 × depth/speed/temperature transducer (DST), 1 × iTC-5, 1 × 3 m backbone, 1 × 5-way connector, 1 × SeaTalk NG power cable, 2 × backbone terminator.
This path applies to the i70s in the pack. Check the transducers already supplied before selecting a replacement or additional equipment; included items do not need to be purchased again.
E70670 includes the corresponding wired gateway; iTC-5 is not required.
i70s connects to a SeaTalk NG backbone. Backbone parts in the box do not by themselves establish that the complete installation has everything it needs.
RSW-Series transducers · 87420 Rev 2
RSW and i70s — connection, software and data · 87420 Rev 2
RSW - Smart Wind Transducer, Short Arm with 30m Cable · E70670
i70s · RSW Smart Wind and DST810 pack · Direct
Pack i70s · SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Included with T70607:1 × A06038 — Spur Cable 400mm
Functions: Apparent wind speed and angle
The supplied wired gateway connects to the shared, powered SeaTalk NG / NMEA 2000 backbone.
i70s requires v3.23 or later. True wind requires speed through water and heading; ground wind requires GNSS.
T70607 pack includes: 1 × i70s, 1 × RSW Smart Wind, 1 × DST810, 1 × 5-way connector, 1 × 3 m backbone, 1 × power cable, 1 × T-piece connector, 2 × backbone terminator.
This path applies to the i70s in the pack. Check the transducers already supplied before selecting a replacement or additional equipment; included items do not need to be purchased again.
E70670 includes the corresponding wired gateway; iTC-5 is not required.
i70s connects to a SeaTalk NG backbone. Backbone parts in the box do not by themselves establish that the complete installation has everything it needs.
RSW-Series transducers · 87420 Rev 2
RSW and i70s — connection, software and data · 87420 Rev 2
Functions & interfaces
Vessel data
Technical specifications
Equipment type
Instruments & Sensors
Length
Wind transducer (including cable): 657.762 mm Wind transducer (excluding cable): 540.712 mm Wired gateway: 155.61 mm
Width
Wind transducer: 46.96 mm Wired gateway: 47.38 mm
Height
Wind transducer: 305.86 mm Wired gateway: 30.61 mm
Nominal power supply
12 V dc (via SeaTalk NG)
Operating voltage range
9 V to 16 V dc
Consumption
< 100 mW
Operating temperature
-25°C to +55°C
Protection against water
Wind transducer: IPx6/IPx7 Wired gateway: IPx3
More images
Image: Raymarine

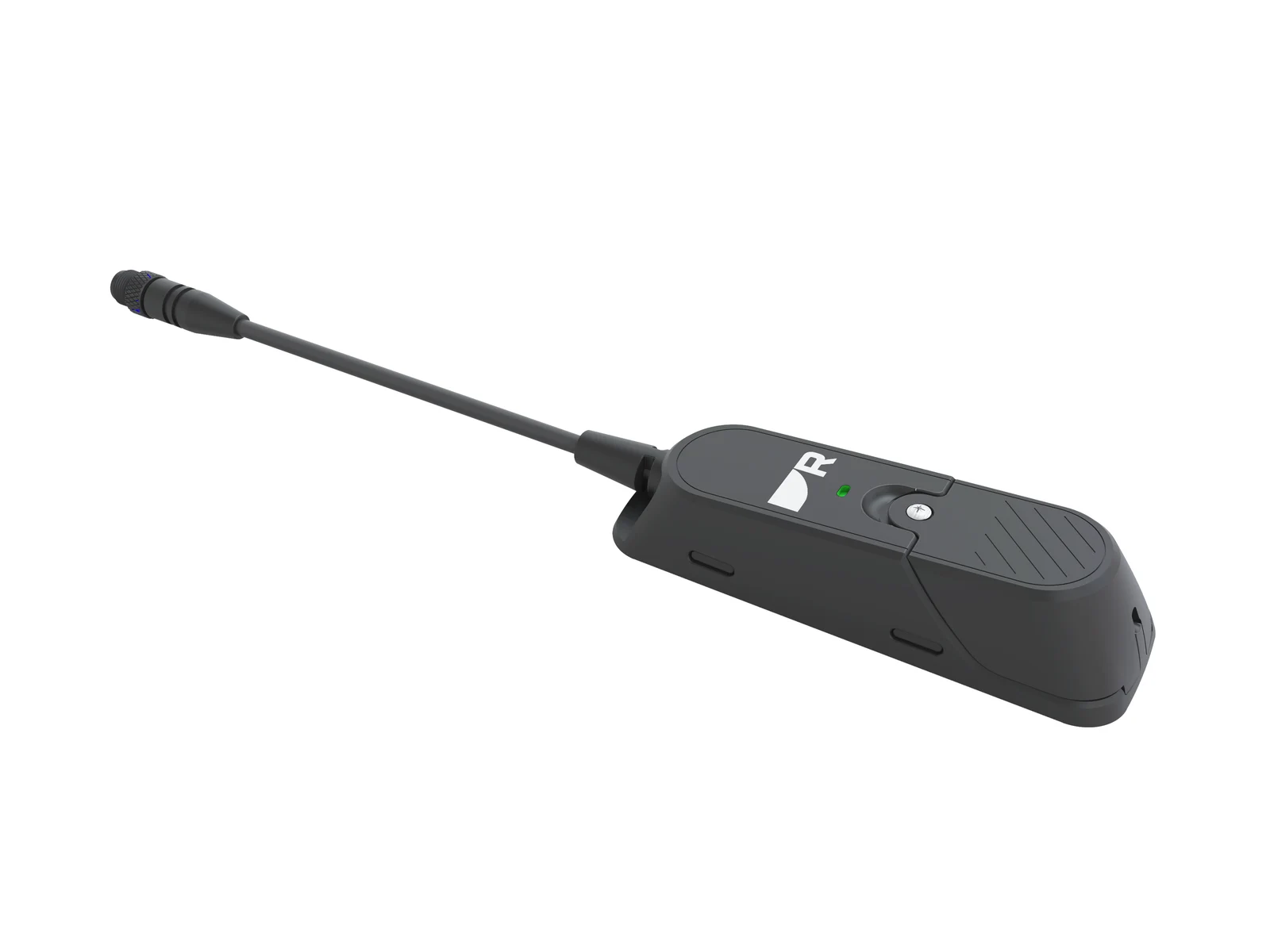

Detail of the wired Smart Wind Gateway that included in the E70670. ↗
Image: Raymarine

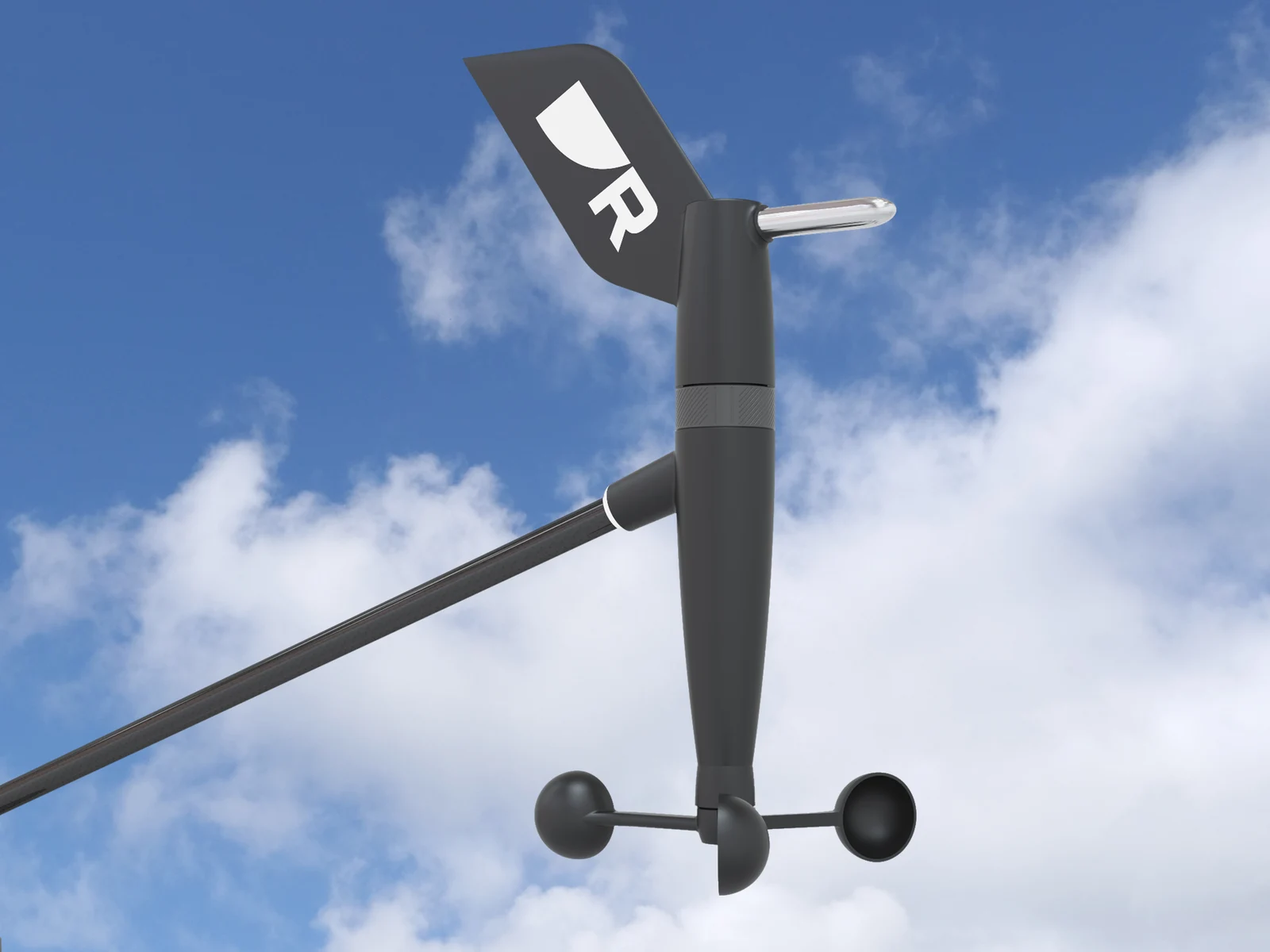

Example installation of the transducer RSW Smart Wind. ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
