Raymarine Axiom 2 12 RV

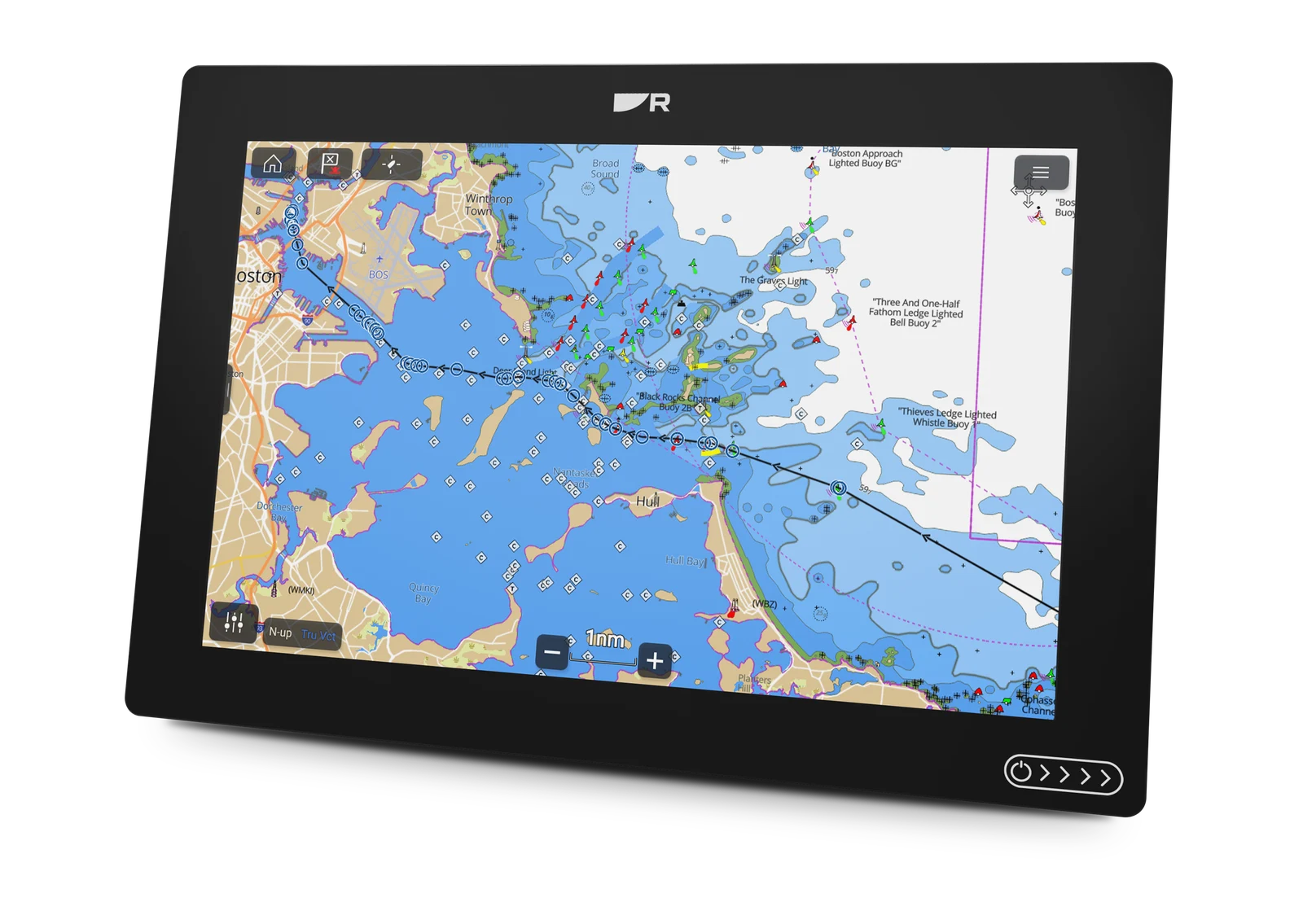

Front view with example display sonar

Image: Raymarine

Discover the product

Raymarine Axiom 2 12 RV navigation display with a bright 12″ IPS screen, a HydroTough protective coating and built-in GNSS. This RV version includes built-in CHIRP, DownVision, SideVision and RealVision 3D. Also supports conventional 600 W sonar at 50/200 kHz with a suitable transducer and adapter. Radar, AIS and data from other systems are displayed using the corresponding external equipment. Check the included charts and transducers for the specific part number.

Compatible equipment

Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.

111 documented connections · Sources checked: 2026-10-11

Explore connections, components & diagrams ↗
Equipment connection guide ↗

RV-100 RealVision 3D Transom Mount Transducer, Direct connect to Axiom MFDs 8m · A80464
Axiom 2 RV · Direct
RealVision · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

RV-200 RealVision 3D Bronze Through Hull Transducer 0° · A80465
Axiom 2 RV · Direct
RealVision · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

RV-300 Plastic All-In-One 0� Through Hull Transducer · A80470
Axiom 2 RV · Direct
RealVision · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

RV-400 RealVision 3D Stainless Steel Through Hull Transducer 0° · A80615
Axiom 2 RV · Direct
RealVision · 25-pin

No additional adapter is required for this connection.

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

Pack of RV-212 RealVision 3D Bronze Thru Hull Txds · T70318
Axiom 2 RV · Direct
RealVision · 25-pin

Included with T70318:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max

Included with T70318:1 × A80477 — 8m RealVision 3D Transducer Extension Cable

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

Pack of RV-220 RealVision 3D Bronze Thru Hull Txds · T70319
Axiom 2 RV · Direct
RealVision · 25-pin

Included with T70319:1 × A80478 — Cable Y for pair sensors RealVision / RealVision Max

Included with T70319:1 × A80477 — 8m RealVision 3D Transducer Extension Cable

Functions: RealVision 3D · DownVision · SideVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

This connection applies to the exact Raymarine code with its factory cable.

Applies only to the RV version. Standard Axiom 2 models require an external sonar module.

RealVision 3D transducers · 87504 Rev 1

Required cables — RealVision 3D transducers · 87504 Rev 1

Axiom 2 RV (3D) variant — compatible transducers · 87504 Rev 1

View all 111 connections in the guide ↗

Functions & interfaces

Chart navigation · Navigation GPS/GNSS · Display touchscreen · Built-in sonar · CHIRP · DownVision · SideVision · RealVision 3D

Interface:NMEA 2000 · RayNet · Ethernet · Wi-Fi · Bluetooth

Technical specifications

Equipment type
Chartplotter / fishfinder

Series
Axiom

Display diagonal
12″ IPS

Display resolution
1280 × 800

Brightness
1800 nits

Processor
6 cores

Internal storage
64 GB

Networking
RayNet Gigabit Ethernet · NMEA 2000

Wireless connection
Wi-Fi 802.11 b/g/n · Bluetooth 4.0

GNSS
Built-in receiver GPS / GLONASS / BeiDou · 10 Hz

Power supply
8–16 V DC

Protection
IPX6 / IPX7

Memory cards
1 socket microSDXC

Built-in sonar
CHIRP, DownVision, SideVision, RealVision 3D

Conventional sonar
600 W · 50/200 kHz with a compatible transducer and adapter

Transducer connection
25-pin RealVision

More images

Side view with an example chart display ↗

Image: Raymarine

Axiom 2 12 — front view and initial display ↗

Image: Raymarine

Axiom 2 12 — right-hand side view with representative charting ↗

Image: Raymarine

Selection & compatibility

This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.

Official manufacturer page ↗

Browse the equipment

Navigation & Radar ↗

Fishfinders & Sonar ↗

Raymarine ↗

Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.

Is it right for your vessel?

Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.

Request information by email ↗
+30 210 400 2538

Elmare · 1 Proussis Street, Keratsini
