Raymarine · Code T70414
6 ft kit · 12 kW · cable 15 m
Magnum 12 kW with antenna 6 ft and cable RayNet radar 15 m.
Radar 12 kW · Open antenna 6 ft · Kit cables 15 m
Navigation & Radar

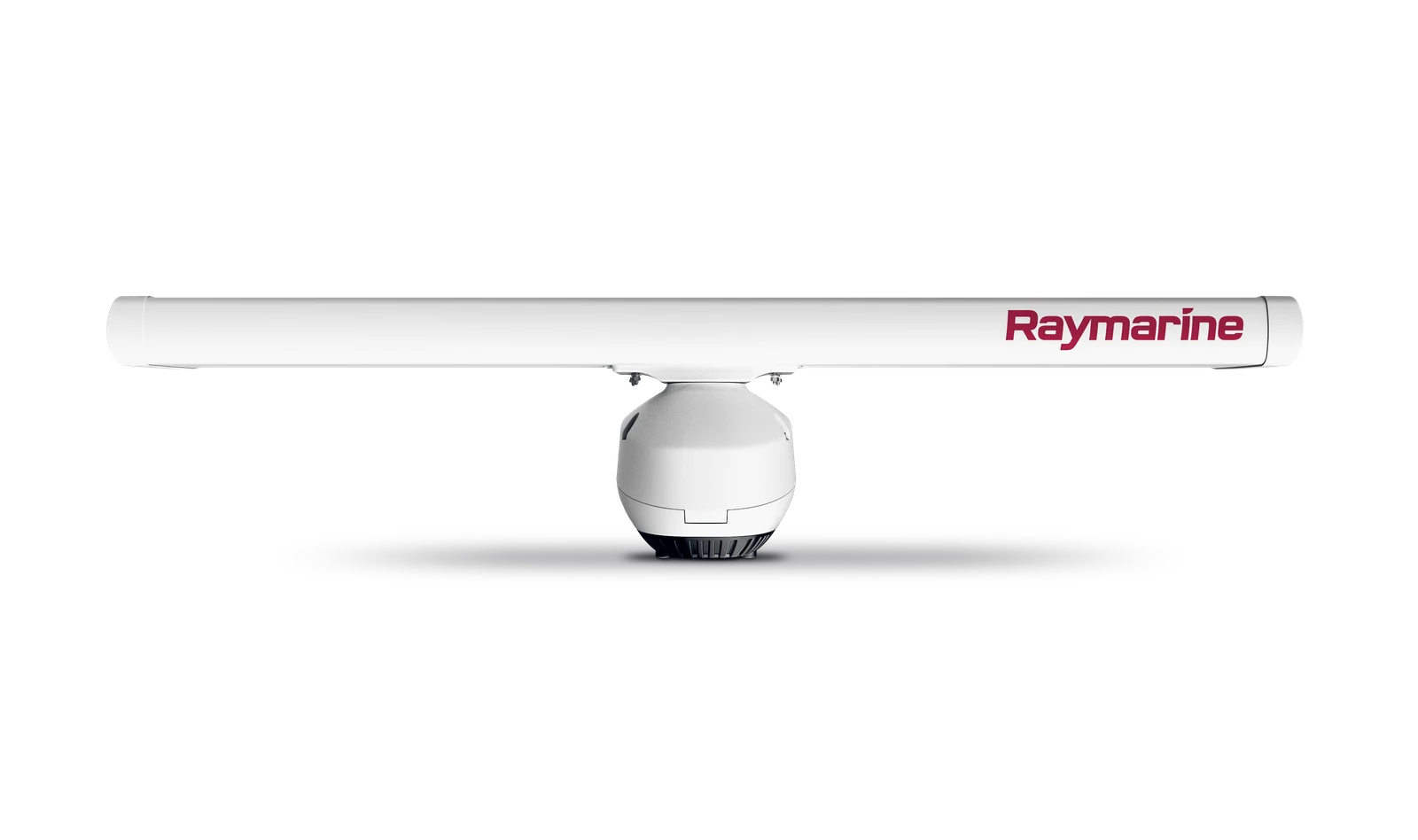

Radar Magnum with antenna 6 ft
Image: Raymarine
What this version includes
Included:
Magnum 12 kW
Antenna 6 ft
Cable RayNet radar 15 m
Discover the product
The Raymarine Magnum T70414 is a 12 kW radar kit with a 6 ft open-array antenna and pedestal. It includes a VCM100 voltage converter and a 15 m cable kit.
The compatible display and installation are selected according to the vessel's equipment. Contact us to configure the system correctly.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Radar
Technical specifications
Equipment type
Radar
Series
Magnum
Power radar
12 kW
Antenna
Open-array · 6 ft
Cable kit
15 m
Voltage converter
VCM100 · included
Package
Kit radar
Antenna length
6 ft
Power transmitter
12 kW
Cable
15 m
More images
Image: Raymarine

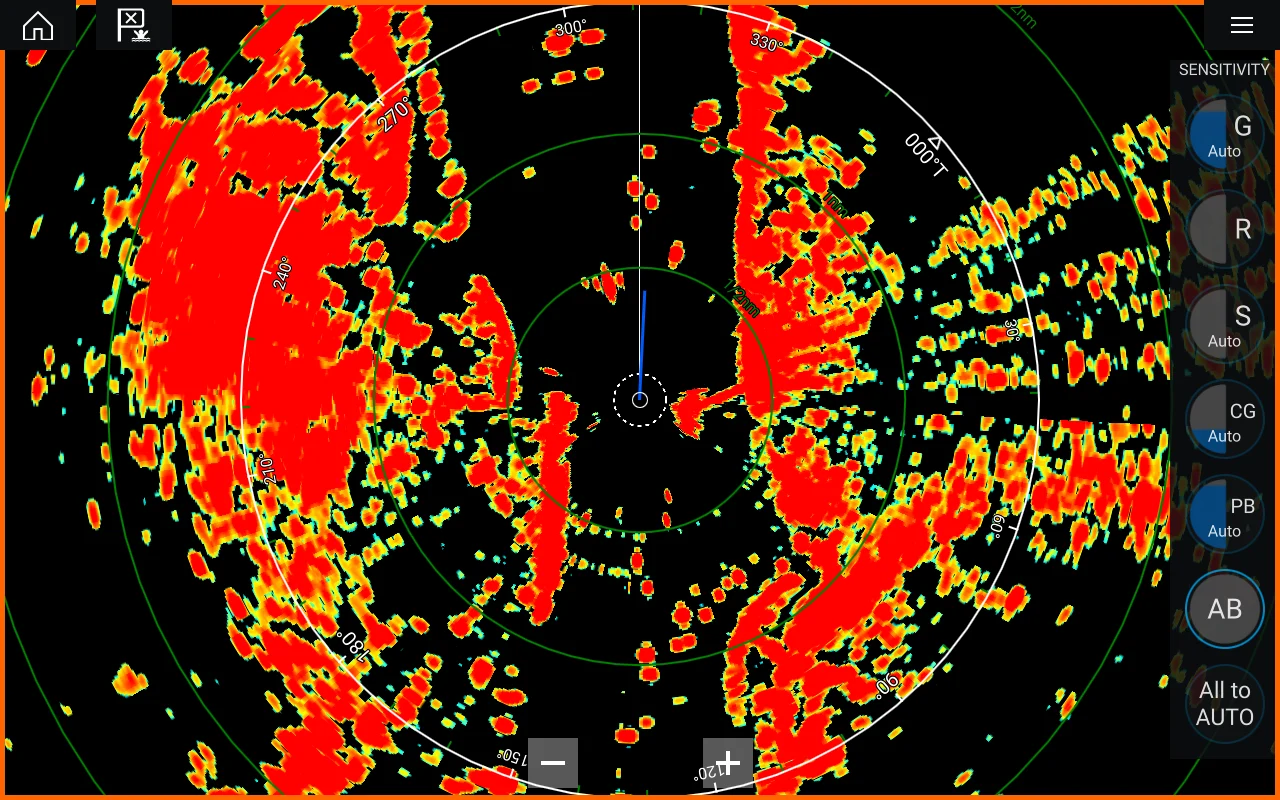

Example display radar Magnum to a compatible display ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
