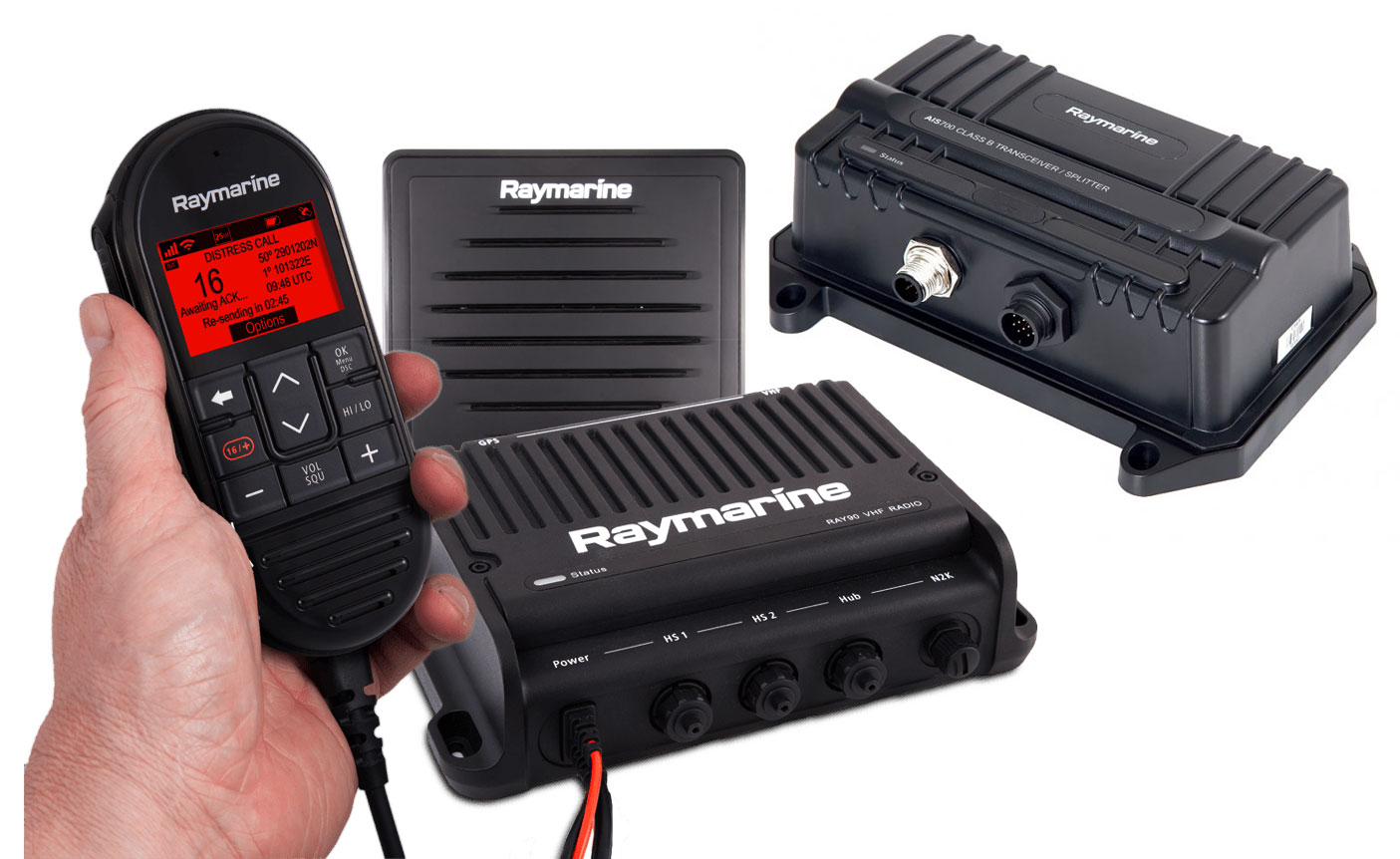

Raymarine Ray90 VHF and AIS700
Home / Equipment catalogue / Communications / Raymarine Ray90 VHF and AIS700
Raymarine · Code T70424
Marine VHF · Marine VHF
Communications
Discover the product
Marine transceiver VHF Raymarine Ray90 VHF and AIS700 for communication from the vessel. Part number T70424 applies to the specific version of the catalogue.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Marine VHF
Technical specifications
Equipment type
Marine VHF
Nominal power supply
12 V dc (with over voltage protection)
Operating voltage range
10.2 V dc to 16 V dc
Operating temperature
-25ºC (-13ºF) to +55ºC (131ºF)
Protection against water
IPx6 & IPx7
NMEA 2000 / SeaTalkng
x 1 via N2K (DeviceNet) connector
Frequency range
156.025 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
Transmit power
• Low power setting — 1 W • High power setting — 25 W
Systems GNSS
• GPS • GLONASS • Beidou
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
