Victron Energy MultiPlus-II 12/3000/120-50 2x120V
Home / Equipment catalogue / Energy & Electrical / Victron Energy MultiPlus-II 12/3000/120-50 2x120V
Victron Energy · Code PMP122305100
Inverter / Charger · MultiPlus-II 12/3000/120-50 2x120V
Model archive · Technical support & upgrades
Energy & Electrical
Victron Energy MultiPlus-II 12/3000/120-50 2x120V

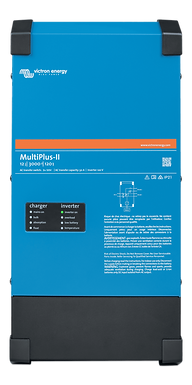

Image: Victron Energy
Discover the product
The MultiPlus-II 12/3000/120-50 2x120V combines a Victron Energy inverter and battery charger in one unit, to manage the AC power supply and battery-bank energy. Key specifications for this version: nominal battery voltage 12 V, continuous power at 25°C 3,000 VA, maximum charging current 120 A, number of AC inputs 1. Supports PowerAssist to supplement a limited AC supply using battery power.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Conversion DC in AC · Battery charging · VE.Bus
Interface:VE.Bus
Technical specifications
Equipment type
Inverter / Charger
Series
MultiPlus-II
Nominal battery voltage
12 V
Input range DC
[9.5, 17] VDC
AC output voltage
120 VAC
Continuous power at 25°C (VA)
3,000 VA
Continuous power at 25°C (W)
2,400 W
Continuous power at 40°C
2,200 W
Peak power
5,500 W
Maximum charging current
120 A
Maximum efficiency
93 %
Connectivity
VE.Bus
Ingress protection
IP22
Battery connection
M8 bolts (two for positive and two for negative connection)
Weight
22 kg
Height
578 mm
Width
275 mm
Enclosure depth
148 mm
Operating temperature
[-40, 65] °C
Absorption voltage
14.4 VDC
PowerAssist
Yes
PowerControl
Yes
Model archive
Model with a newer version
We retain these details to identify existing equipment, provide technical support and help select a suitable upgrade.
Newer model:PMP122305102. Confirm compatibility with us before upgrading.
