Raymarine Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

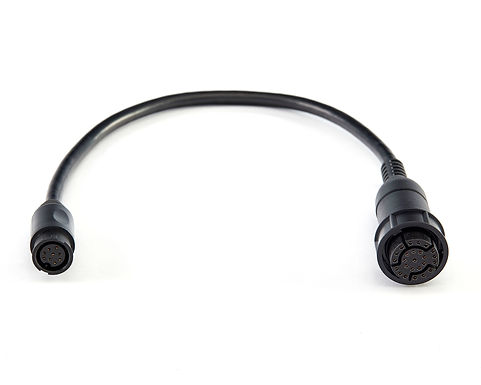

Manufacturer image — Raymarine A80490.

Image: Raymarine

Discover the product

Interface cable Raymarine, part number A80490. Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S. Select according to the exact equipment model and connection.

Compatible equipment

Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.

76 documented connections · Sources checked: 2026-10-11

Explore connections, components & diagrams ↗
Equipment connection guide ↗

CPT-200 Transom Mount Chirp Transducer · A80281
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: SideVision

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

A80490 is additionally required. CPT-200 does not provide the other functions of an RV/RVM transducer.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

SideVision — connection using A80490 · 87443 Rev 7

CPT-100DVS Plastic Transom Mount Chirp Transducer, Depth & Temp · A80351
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: DownVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

A80490 is additionally required.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

DownVision — connection using A80490 · 87443 Rev 7

CPT-110 Plastic Through Hull Chirp Transducer · A80277
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: DownVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

A80490 is additionally required.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

DownVision — connection using A80490 · 87443 Rev 7

CPT-120 Bronze Through Hull Chirp Transducer · A80350
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: DownVision · CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

A80490 is additionally required.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

DownVision — connection using A80490 · 87443 Rev 7

CPT-S Plastic Conical HIGH CHIRP Transom Mount Transducer, 10m · E70342
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: Conical-beam CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

CPT-S transducers do not provide DownVision, SideVision or RealVision.

A80490 is additionally required.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

CPT-S — codes and connection using A80490 · 87443 Rev 7

CPT-S Plastic Conical HIGH CHIRP Through Hull 0° Angled Element Transducer, 10m · E70339
Axiom 2 Pro RVM · With an adapter
RV/RVM · 25-pin

Additionally required:1 × A80490 — Adaptor Cable (9 pin to 25 pin) attach (CPT-xxx) transducer to Axiom RV or Axiom Pro RVX & S

Functions: Conical-beam CHIRP sonar

Electrical compatibility does not confirm suitability for the hull. Check material, deadrise and mounting position in the transducer guide.

Applies to this specific Raymarine code with its factory cable. Another version or code of the same model requires a separate check.

CPT-S transducers do not provide DownVision, SideVision or RealVision.

A80490 is additionally required.

Axiom 2 Pro RVM — transducers by port · 87443 Rev 7

CPT-S — codes and connection using A80490 · 87443 Rev 7

View all 76 connections in the guide ↗

Functions & interfaces

Accessory / installation

Technical specifications

Equipment type
Accessories & Installation

Selection & compatibility

This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.

Browse the equipment

Fishfinders & Sonar ↗

Raymarine ↗

Selection & connection guides

Connection with Axiom 2 Pro RVM ↗

Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.

Is it right for your vessel?

Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
