Raymarine Autopilot Follow-On Tiller Steer Control Head (Standby - Power Steer - Standby)
Home / Equipment catalogue / Autopilots / Raymarine Autopilot Follow-On Tiller Steer Control Head (Standby - Power Steer - Standby)
Raymarine · Code A80532
Autopilots & Control · Heading control
Autopilots

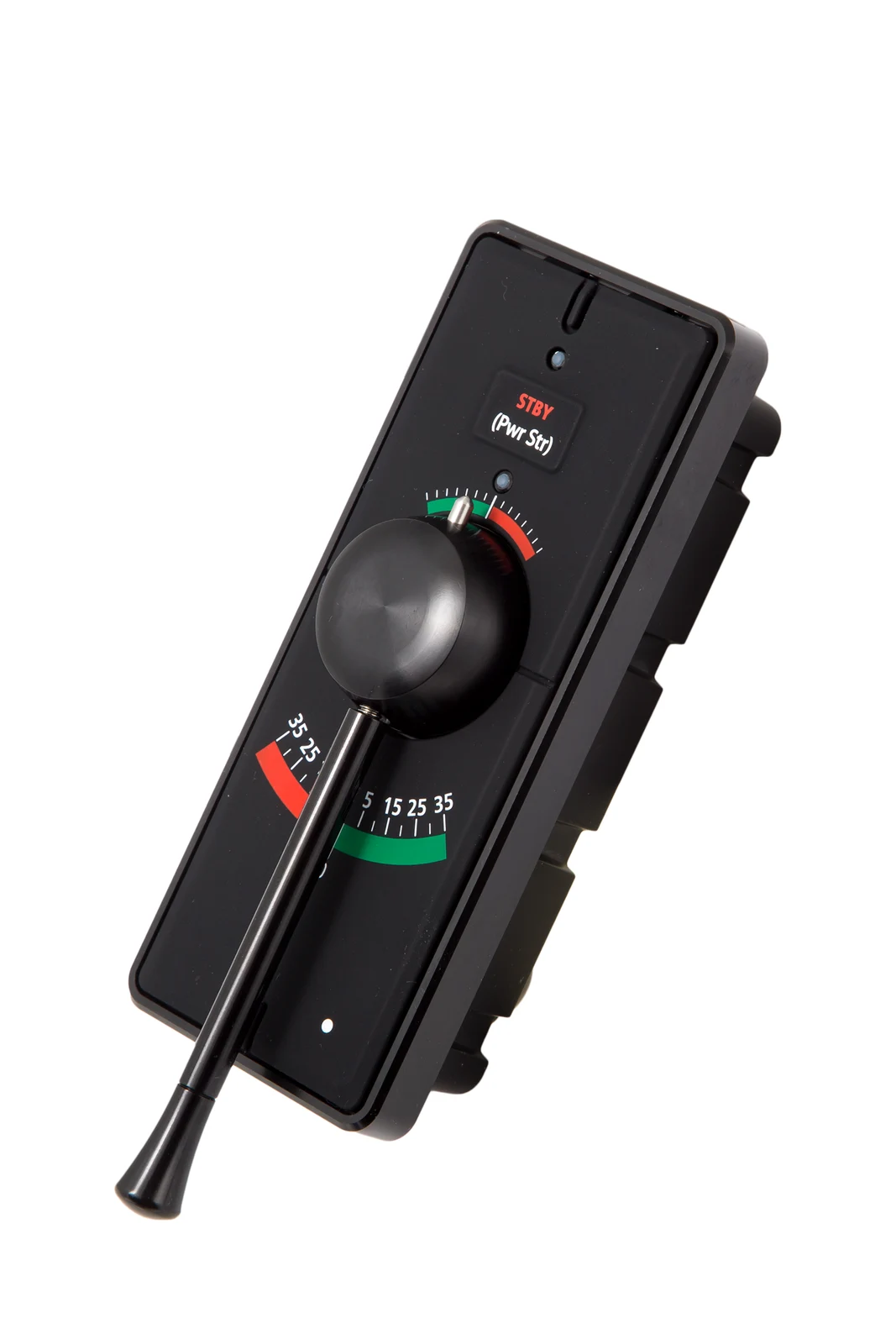

Follow On Tiller A80532 — version Standby / Power Steer / Standby
Image: Raymarine
Discover the product
Autopilot controller Raymarine Autopilot Follow-On Tiller Steer Control Head (Standby - Power Steer - Standby). The selection and the interface are based on with the steering type and compatibility between the vessel's units.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Heading control
Technical specifications
Equipment type
Autopilots & Control
Protection against water
IPx6, IPx7
Operating temperature
-25° C to +55° C
Dimensions
Length: 133 mm, Width: 55 mm, Depth: 32.5 mm
Connections
1x SeaTalkng, or NMEA 2000 (via adapter)
Operating voltage range
9 V dc to 16 V dc (protection to 32 V dc)
Consumption
30 mA max.
Nominal power supply
12 V dc (power supply from SeaTalkng)
Load NMEA 2000 (LEN)
1
More images
Follow On Tiller A80532 — side view ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
