Raymarine i50 Tridata Display (Digital)
Home / Equipment catalogue / Instruments & Networks / Raymarine i50 Tridata Display (Digital)
Raymarine · Code E70060
Instrument indication
Instrument i50 Tridata. Choose the sensor kit when you also need the corresponding measuring equipment.
Instruments & Sensors · Depth measurement
Instruments & Networks · Fishfinders & Sonar
i50 Tridata — black bezel and red display backlighting
Image: Raymarine
What this version includes
Included:
Instrument i50 Tridata
Discover the product
Instrument or sensor Raymarine i50 Tridata Display (Digital) for monitoring vessel data. The connection and required additional equipment depend on the specific version E70060.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
18 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
DST800 Analog out 200kHz · A22154
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth · Speed through water · Water temperature
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth, Speed and Temperature (DST) transducers · 87420 Rev 2
i40/50 P66 Depth, Speed, Temperature Transom Mount Transducer · E26028-PZ
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth · Speed through water · Water temperature
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth, Speed and Temperature (DST) transducers · 87420 Rev 2
i40/50 P65 Depth, Speed, Temperatue Transom Mount Transducer · E26006-PZ
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth · Speed through water · Water temperature
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth, Speed and Temperature (DST) transducers · 87420 Rev 2
B744V Bronze Depth, Speed, Temperature Through Hull Transducer (No fairing block) · A26043
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth · Speed through water · Water temperature
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth, Speed and Temperature (DST) transducers · 87420 Rev 2
B744VL Long Stem Bronze Depth · A26044
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth · Speed through water · Water temperature
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth, Speed and Temperature (DST) transducers · 87420 Rev 2
P7 D Shorty™ Low Profile Through Hull Transducer · E26009
i50 Tridata · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Depth
Connect the specific analogue version to the corresponding terminals. The display shows only measurements supported by that display model.
Check hull, deadrise, wiring and calibration against the transducer / instrument guide.
Instrument Depth transducers · 87420 Rev 2
View all 18 connections in the guide ↗
Functions & interfaces
Depth measurement
Technical specifications
Equipment type
Instruments & Sensors
Series
i50
Dimensions
Width: 110 mm, Height: 115 mm, Depth: 44 mm
Connections
2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
Protection against water
IPx6
Operating temperature
-20 °C to +55 °C
Nominal power supply
12 V dc
Operating voltage range
10 V dc to 16 V dc
Consumption
< 1 W typical (display only), 2.4 W maximum (transducer connected)
Load NMEA 2000 (LEN)
4
Package
Instrument indication
More images

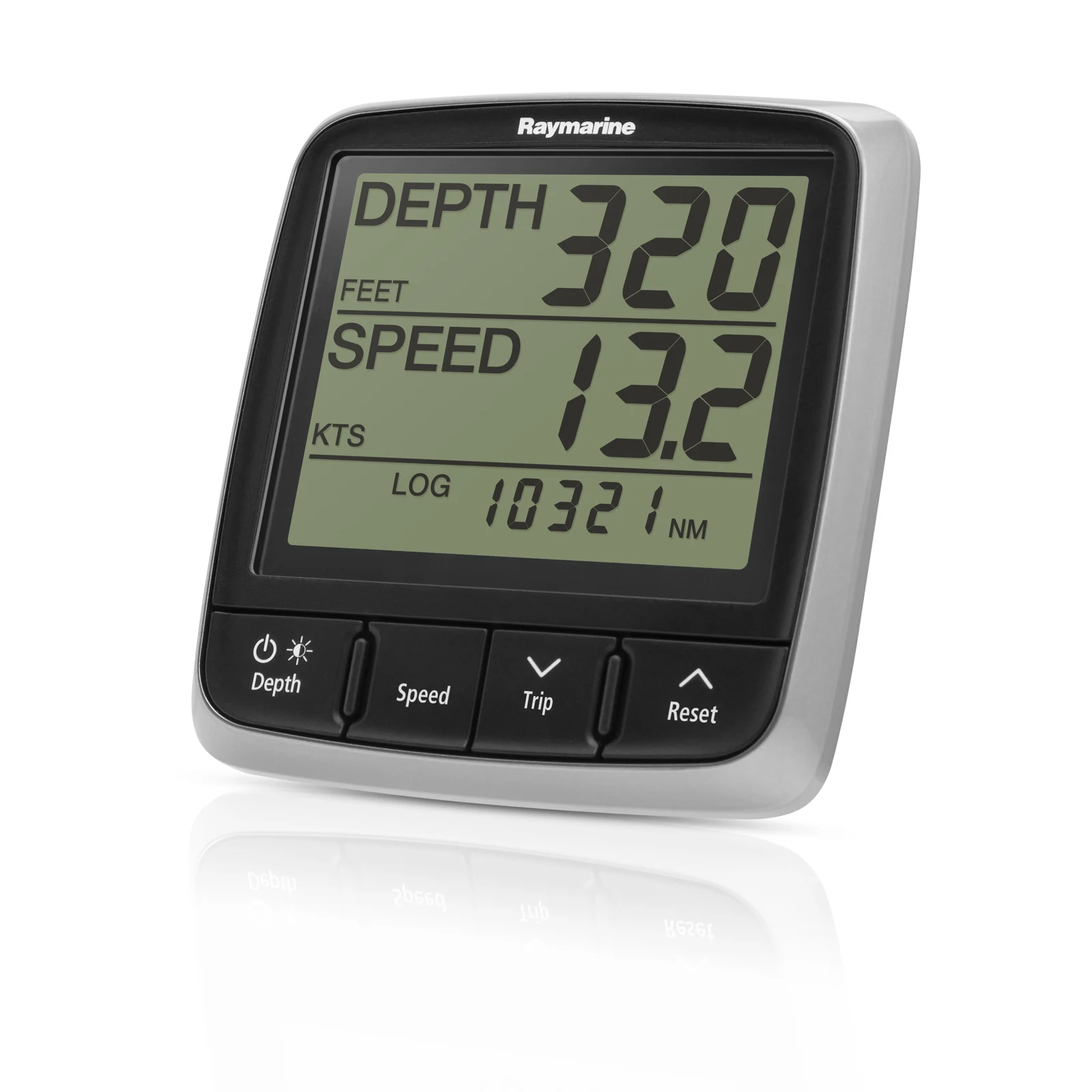

i50 Tridata — front view with grey bezel ↗
Image: Raymarine

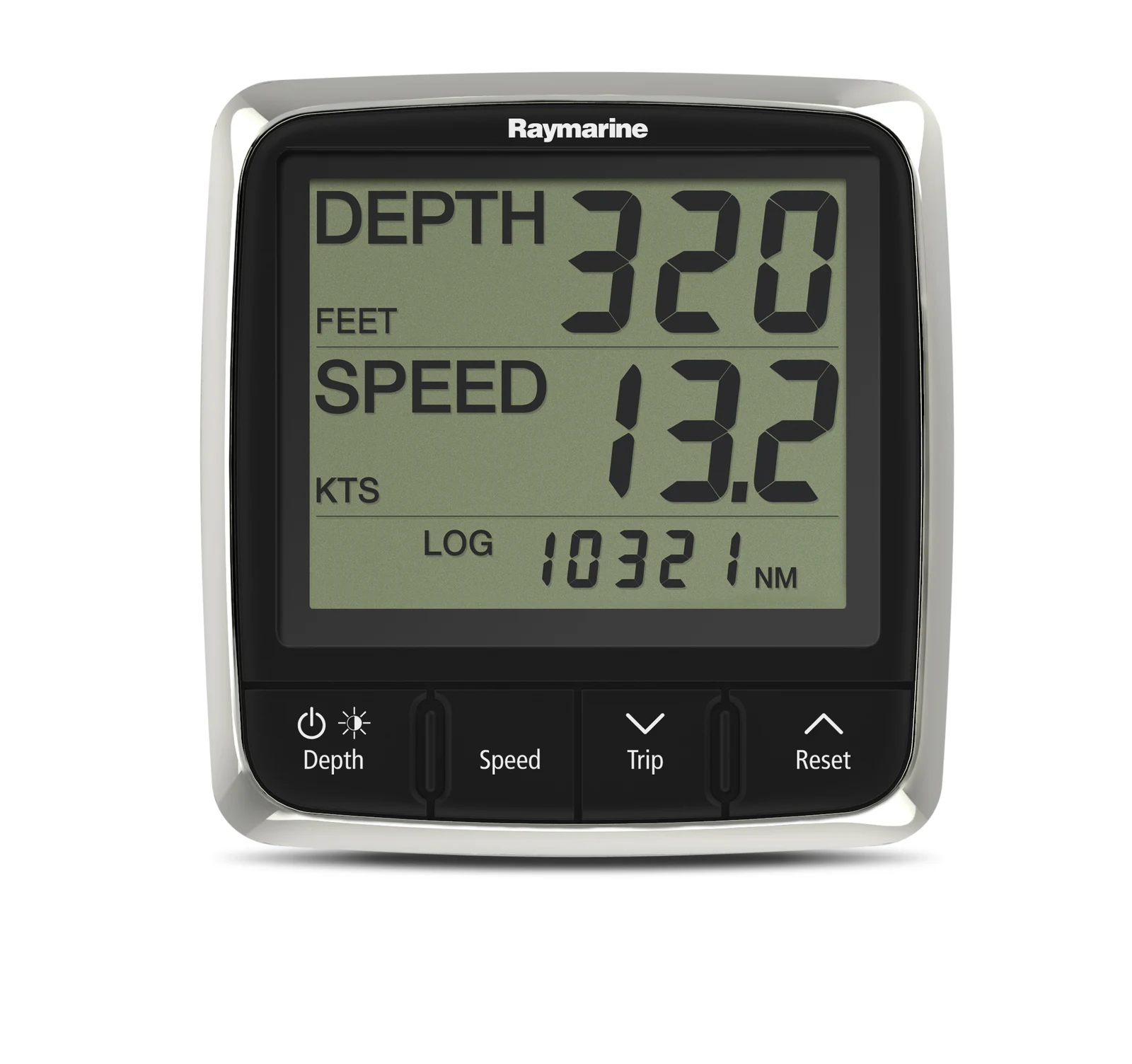

i50 Tridata — side view with grey bezel ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
Browse the equipment
Kit contents, interfaces and required accessories are checked for the exact part number. Connection to another system does not mean all functions are built in.
Is it right for your vessel?
Tell us about your vessel, existing equipment and requirements. Elmare will help you choose the right configuration.
Request information by email ↗
+30 210 400 2538
Elmare · 1 Proussis Street, Keratsini
