Raymarine i60 Wind Display (Analogue)
Home / Equipment catalogue / Instruments & Networks / Raymarine i60 Wind Display (Analogue)
Raymarine · Code E70061
Instrument indication
Instrument i60 Wind. Choose the sensor kit when you also need the corresponding measuring equipment.
Instruments & Sensors · Vessel data
Instruments & Networks

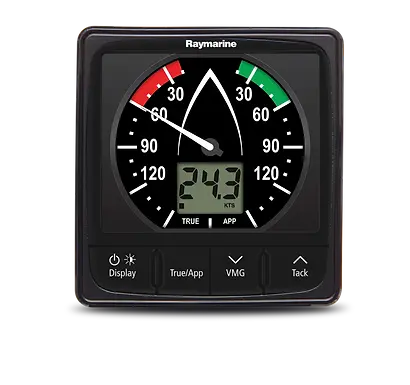

i60 Wind — front view with black bezel
Image: Raymarine
What this version includes
Included:
Instrument i60 Wind
Discover the product
Instrument or sensor Raymarine i60 Wind Display (Analogue) for wind monitoring. The connection and required additional equipment depend on the specific version E70061.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
2 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
Short Arm Vane Transducer supplied with 30m (97.5’) Cable · E22078
i60 Wind · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Apparent wind speed and angle
The factory cable is included with the transducer. True wind requires additional vessel-speed data.
Wind transducers — i60 and iTC-5 · Official manufacturer page · checked 2026-10-10
Long Arm Vane Transducer supplied with 50m (162.5’) Cable · E22079
i60 Wind · Direct
Analogue transducer input
No additional adapter is required for this connection.
Functions: Apparent wind speed and angle
The factory cable is included with the transducer. True wind requires additional vessel-speed data.
Wind transducers — i60 and iTC-5 · Official manufacturer page · checked 2026-10-10
Functions & interfaces
Vessel data
Technical specifications
Equipment type
Instruments & Sensors
Series
i60
Dimensions
Width: 110 mm, Height: 115 mm, Depth: 44 mm
Connections
2 x SeaTalkng connections (compliant with SeaTalk), Transducer connections
Protection against water
IPx6
Operating temperature
-20 °C to +55 °C
Nominal power supply
12 V dc
Operating voltage range
10 V dc to 16 V dc
Consumption
< 1 W typical (display only), 2.4 W maximum (transducer connected)
Load NMEA 2000 (LEN)
4
Package
Instrument indication
More images

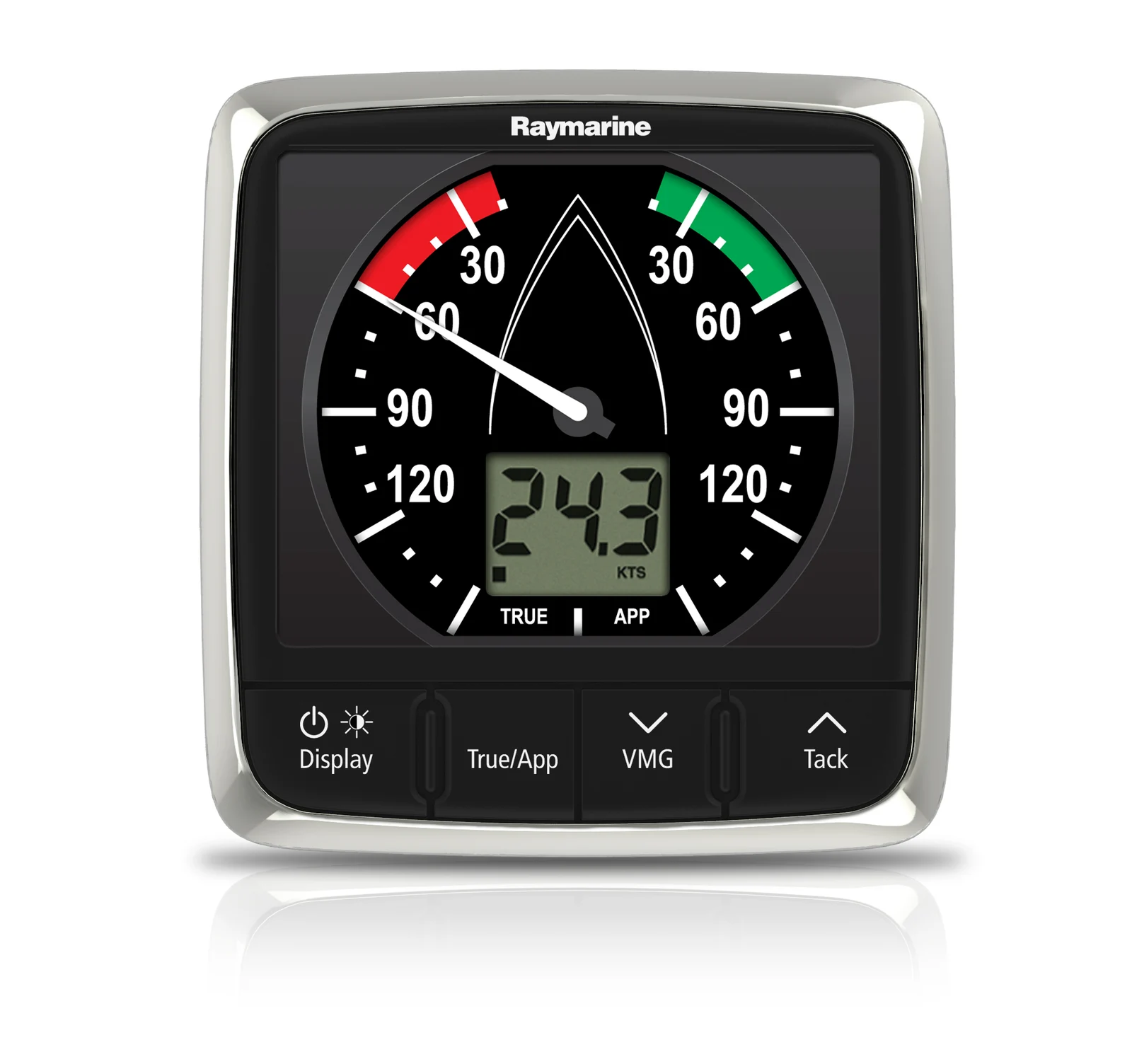

i60 Wind — front view with grey bezel ↗
Image: Raymarine
Selection & compatibility
This model is included in our catalogue. The exact configuration, compatibility and supply availability are confirmed when you contact us.
