Raymarine i70s Multifunction Colour Display
Home / Equipment catalogue / Instruments & Networks / Raymarine i70s Multifunction Colour Display
Raymarine · Code E70327
Instrument indication
Instrument i70s. Choose the sensor kit when you also need the corresponding measuring equipment.
Instruments & Sensors · Vessel data
Instruments & Networks

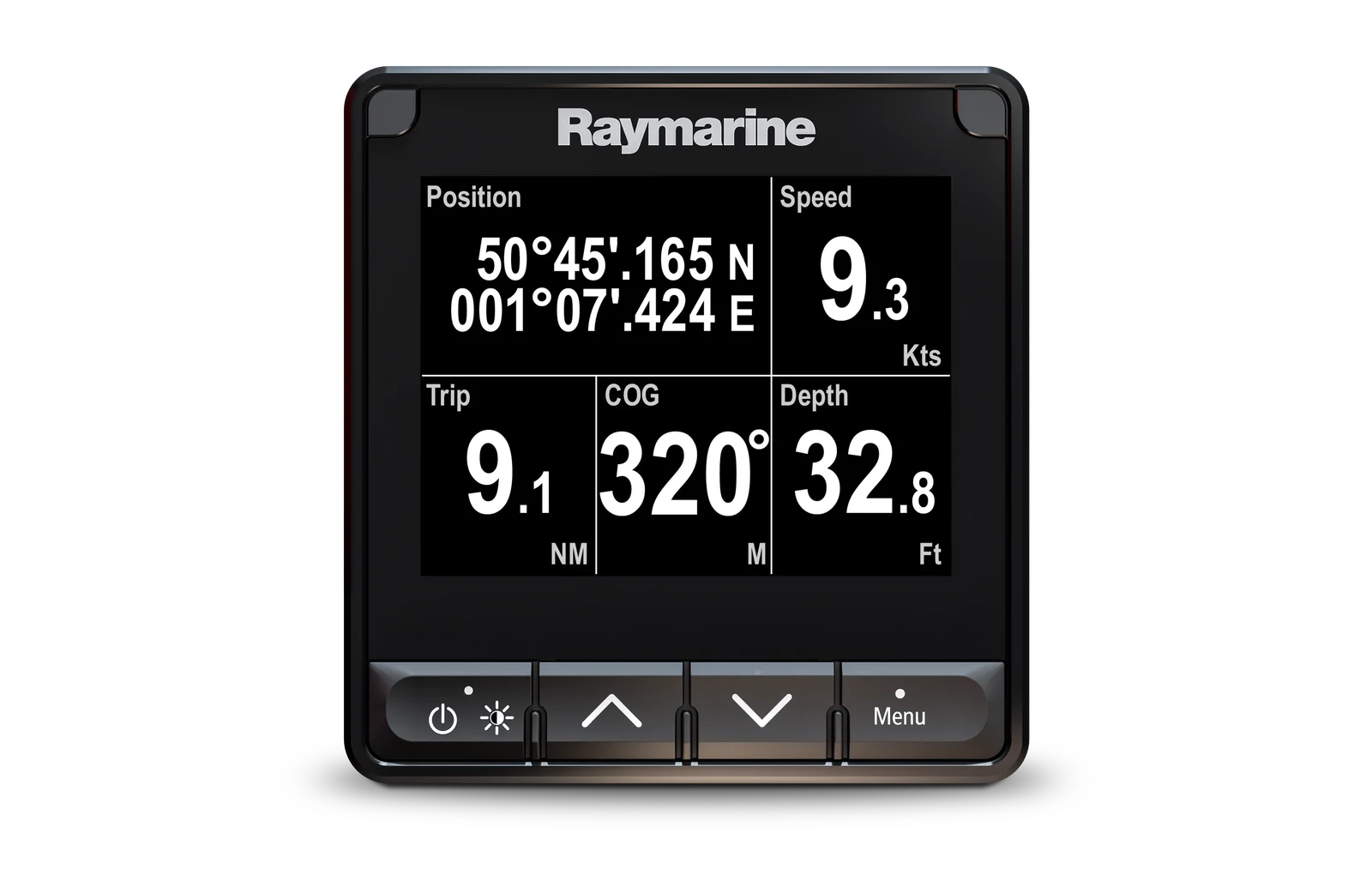

i70s — front view with navigation readings
Image: Raymarine
What this version includes
Included:
Instrument i70s
Discover the product
The i70s is a colour multifunction instrument with a 4,1-inch display and 1200 cd/m² brightness. It presents SeaTalkng network data such as depth, speed and wind, depending on the connected sensors. The display does not replace the required sensor or analogue signal converter. This entry is for the instrument display.
Compatible equipment
Documented connections for specific catalogue codes, including parts, requirements and manufacturer sources. Selected equipment ranges are covered; an unlisted combination does not imply incompatibility. Each connection path is assessed separately and is not a complete installation design.
24 documented connections · Sources checked: 2026-10-10
Explore connections, components & diagrams ↗
Equipment connection guide ↗
DST800 Analog out 200kHz · A22154
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Depth · Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog Depth, Speed and Temperature (DST) transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
i40/50 P66 Depth, Speed, Temperature Transom Mount Transducer · E26028-PZ
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Depth · Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog Depth, Speed and Temperature (DST) transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
i40/50 P65 Depth, Speed, Temperatue Transom Mount Transducer · E26006-PZ
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Depth · Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog Depth, Speed and Temperature (DST) transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
B744V Bronze Depth, Speed, Temperature Through Hull Transducer (No fairing block) · A26043
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Depth · Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog Depth, Speed and Temperature (DST) transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
B744VL Long Stem Bronze Depth · A26044
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Depth · Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog Depth, Speed and Temperature (DST) transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
ST900/P120 Speed/Temperature Low Profile Retractable Through Hull Analog Transducer · E70673
i70s · Through a module
SeaTalk NG backbone
Shared SeaTalk NG network with separate branches. A powered and terminated backbone is required; this list is not a wiring sequence.
Additionally required:1 × E70010 — iTC-5 Instrument Transducer Converter
Included with E70327:1 × A06038 — Spur Cable 400mm
Functions: Speed through water · Water temperature
A powered, correctly terminated SeaTalk NG backbone is required. iTC-5 connects to the backbone; it is not a direct transducer-to-i70s cable.
Calibration is performed from i70s. Backbone components depend on the existing network.
Analog speed and temperature transducers · 87138 Rev 5
Transducer calibration compatibility · 87138 Rev 5
View all 24 connections in the guide ↗
Functions & interfaces
Vessel data
Technical specifications
Equipment type
Instruments & Sensors
Series
i70s
Resolution
320(H) x 240(V)
Brightness
1,200 cd/m2
Size
4.1" TFT LCD display
Protection against water
IPx6, IPx7
Operating temperature
-25°C to +55°C
Operating voltage range
9 V dc to 16 V dc (protection to 32 V dc)
Current
143 mA
Nominal power supply
12 V dc
Consumption
1.7 W
Load NMEA 2000 (LEN)
3
Connections
1 x plug SeaTalkng
Package
Instrument indication
More images
Image: Raymarine
Image: Raymarine

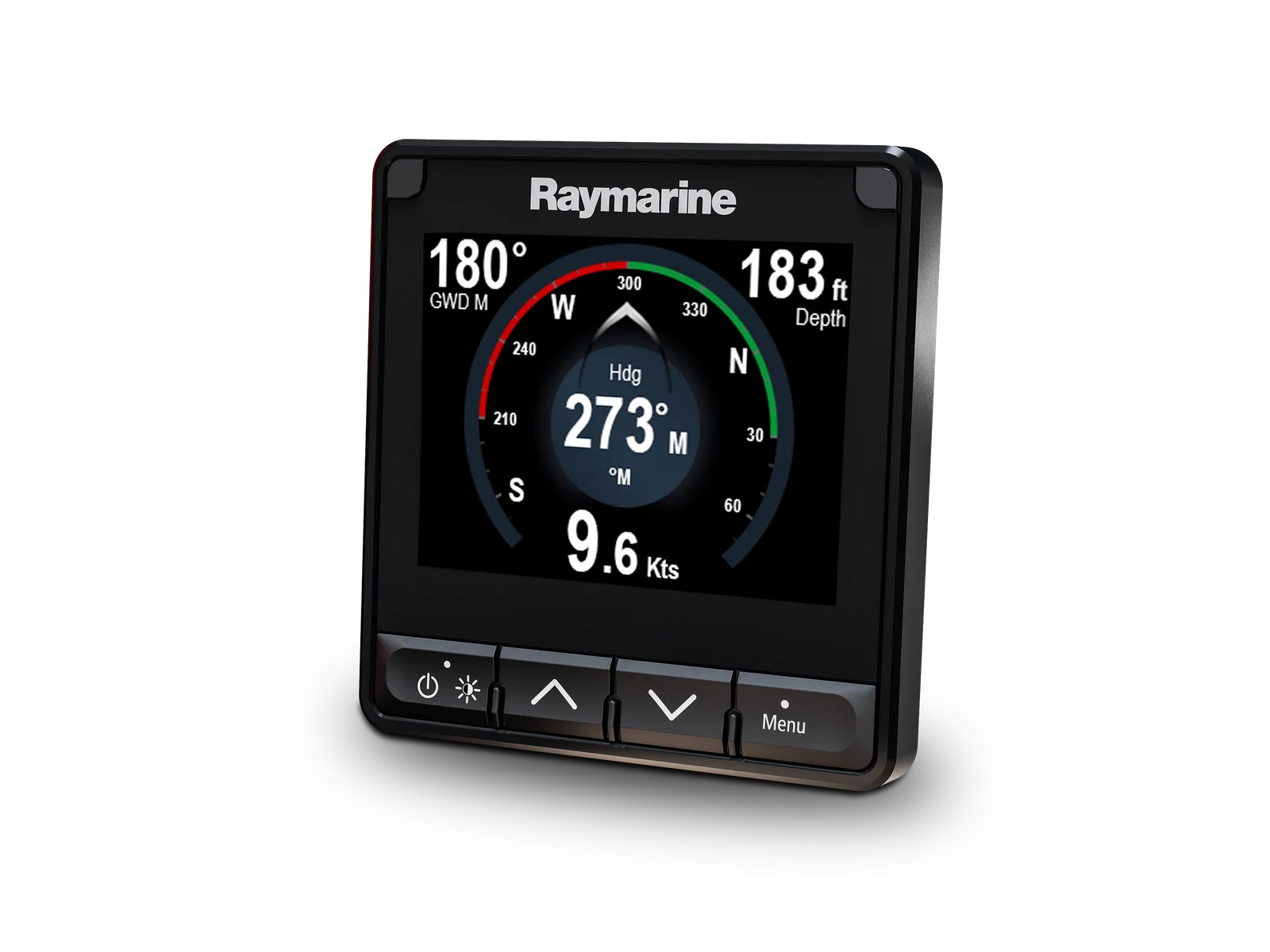

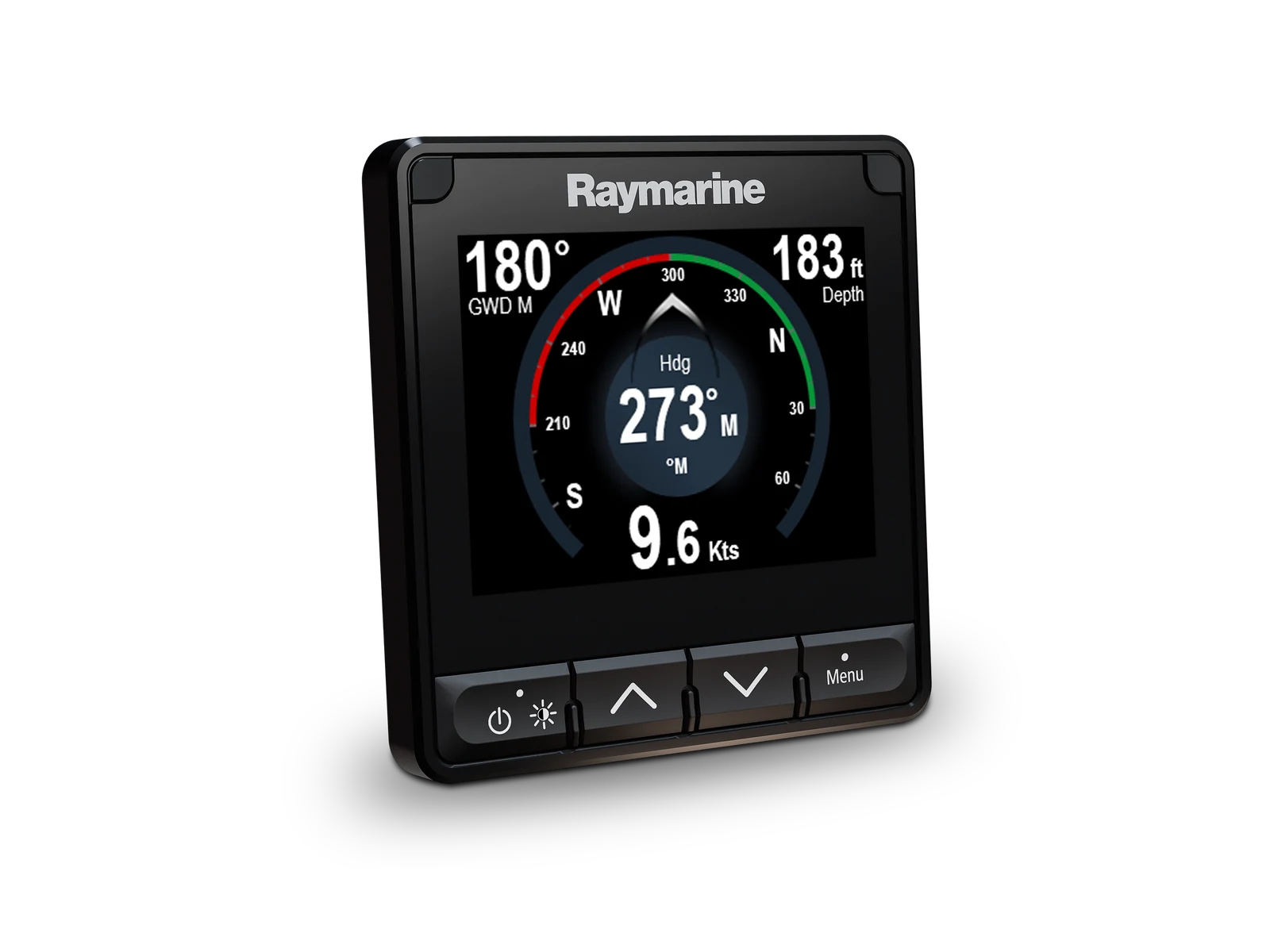

i70s — example display data from connected sources ↗
Image: Raymarine

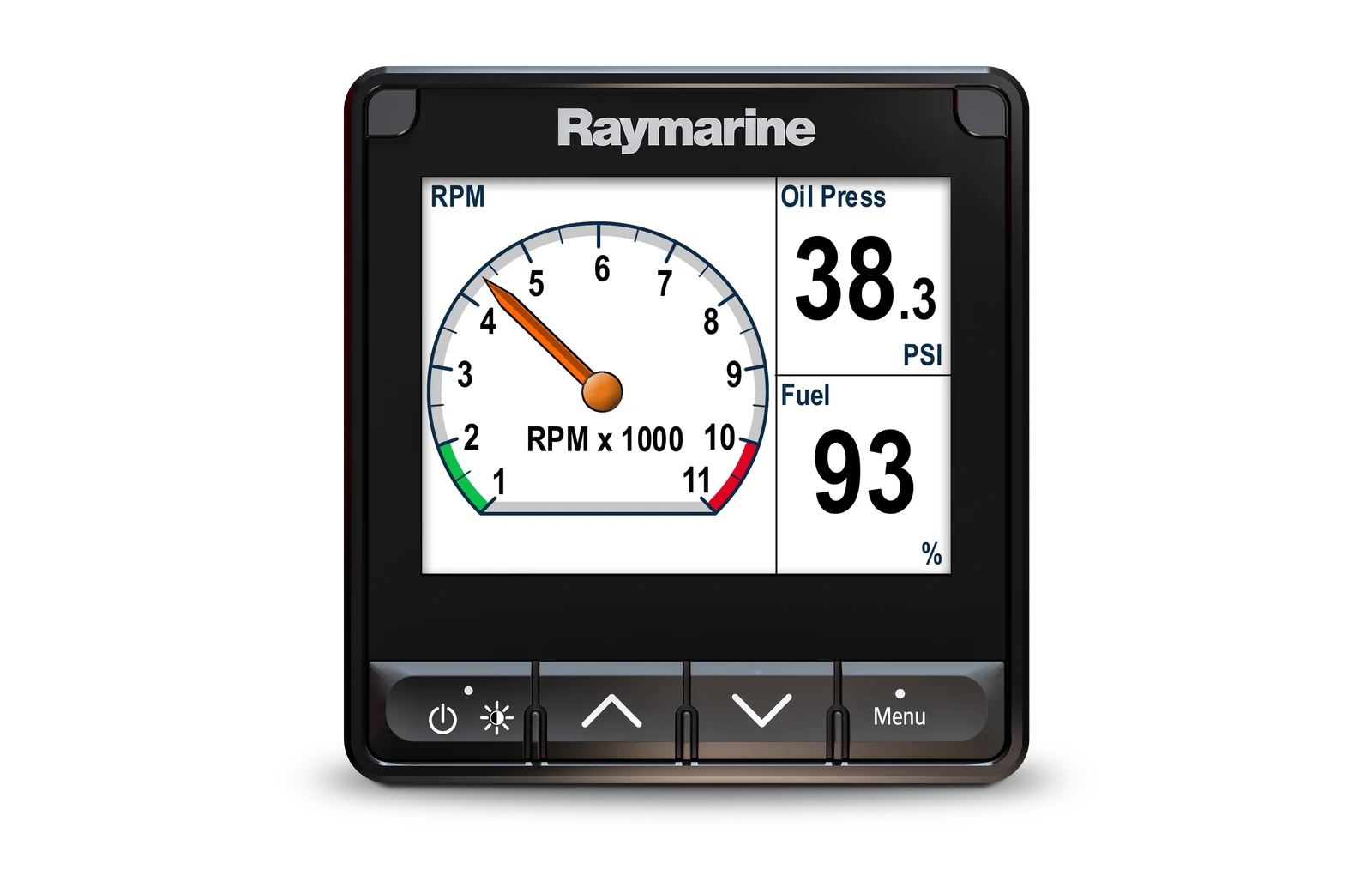

i70s — example engine readings with compatible data source ↗
Image: Raymarine

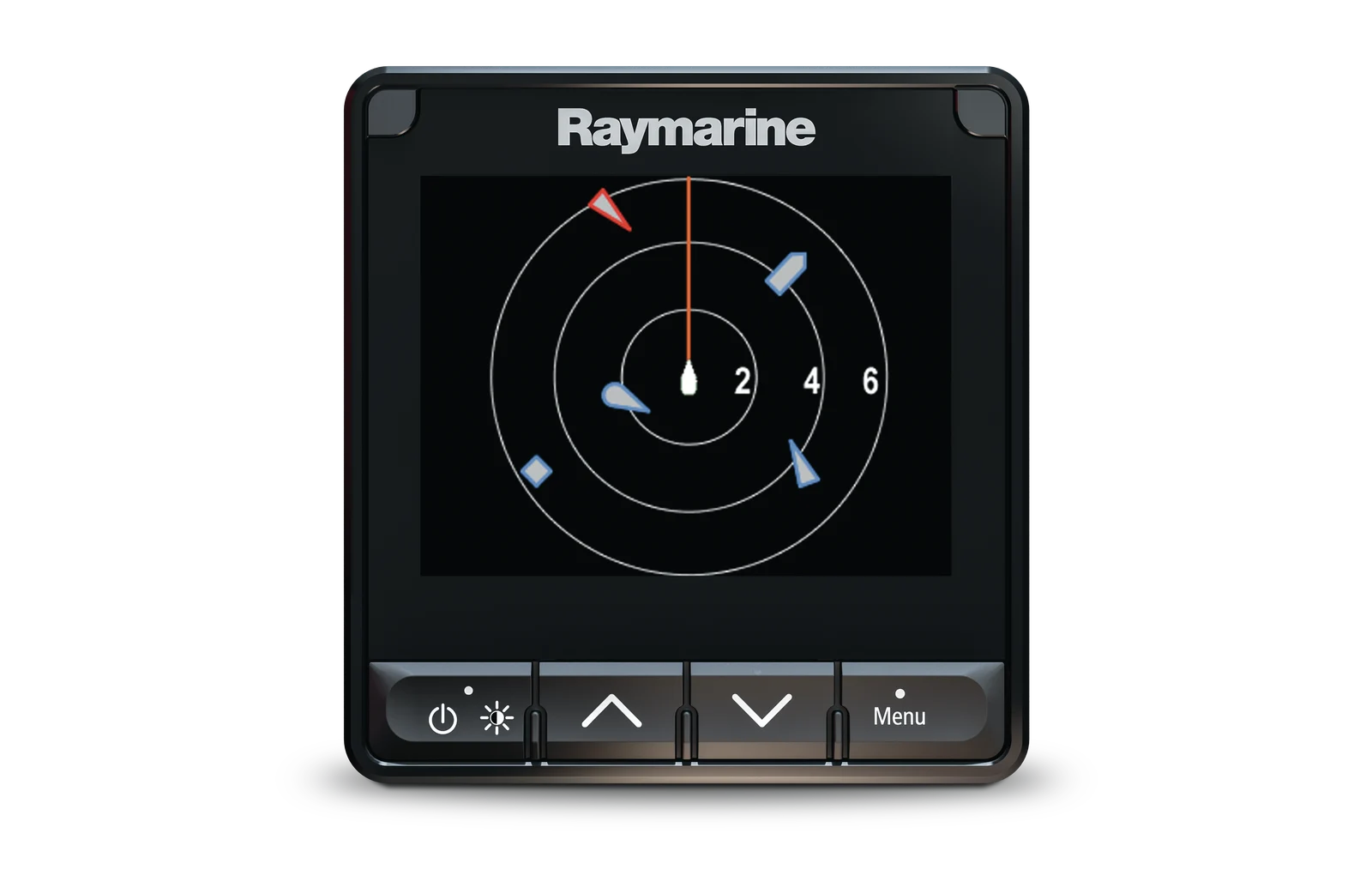

i70s — example display AIS from compatible receiver NMEA 2000 ↗
Image: Raymarine

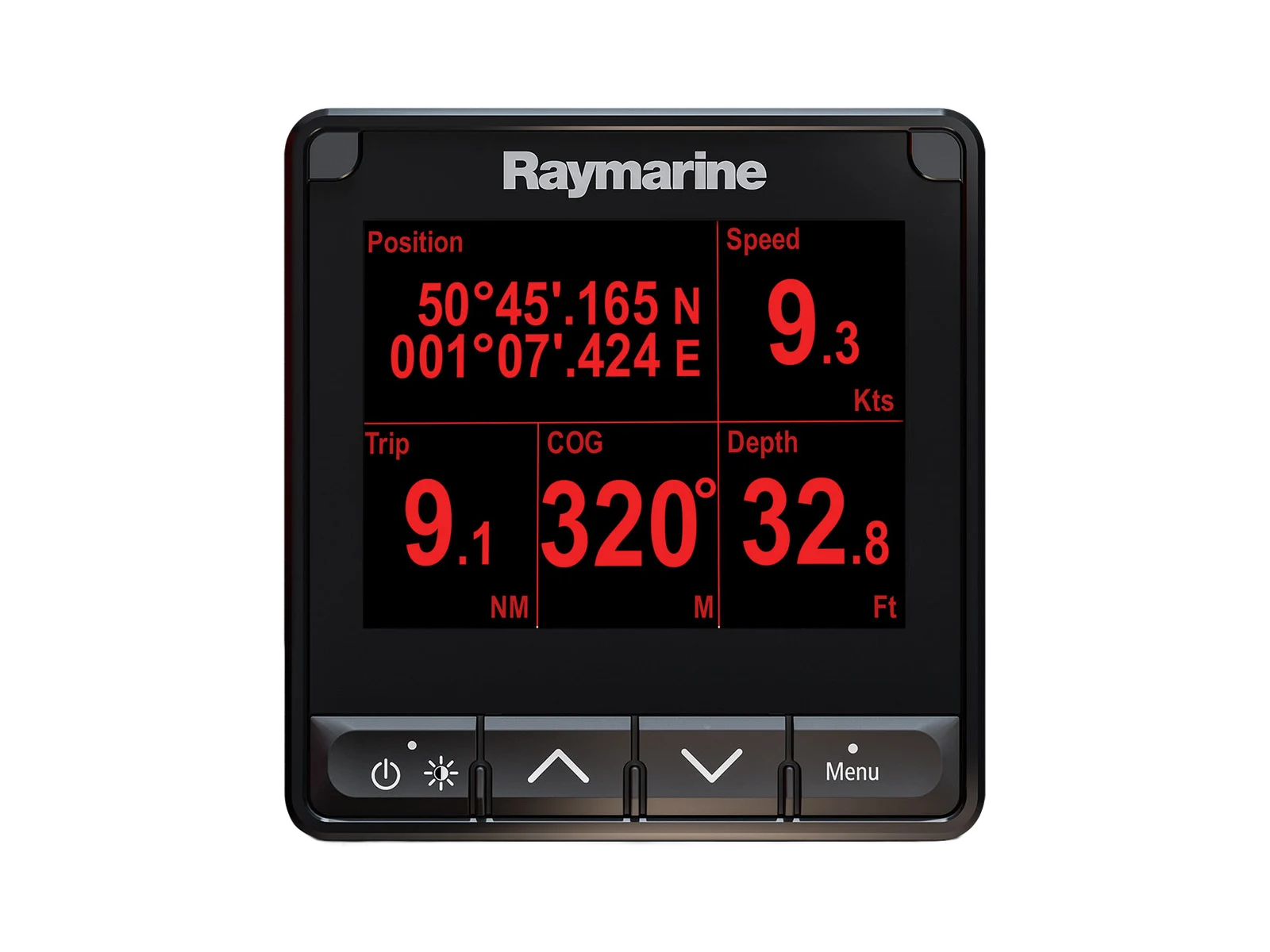

i70s — night-mode display example data ↗
Image: Raymarine
