Raymarine p70s Autopilot Control Head (Sail)
Home / Equipment catalogue / Autopilots / Raymarine p70s Autopilot Control Head (Sail)
Raymarine · Code E70328
Autopilots & Control · Heading control
Autopilots

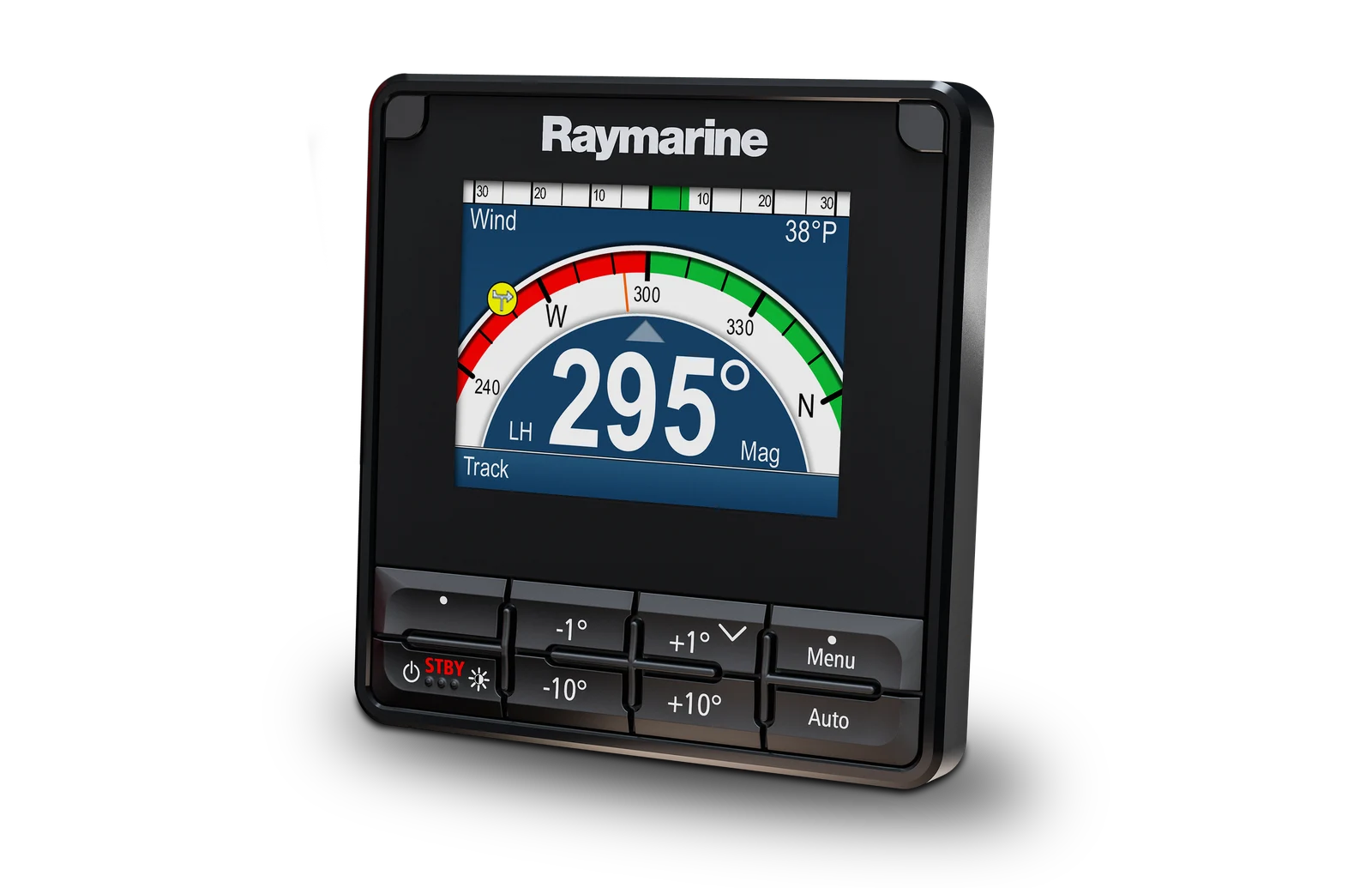

p70s — front view of the controller autopilot
Image: Raymarine
Discover the product
Autopilot controller Raymarine p70s Autopilot Control Head (Sail). The selection and the interface are based on with the steering type and compatibility between the vessel's units.
Connections & accessories
No documented connection has yet been recorded for this exact part number. This does not mean it is incompatible.
Functions & interfaces
Heading control
Technical specifications
Equipment type
Autopilots & Control
Series
p70s
Protection against water
IPx6, IPx7
Operating temperature
-20°C to 55°C
Operating voltage range
9 V dc to 16 V dc (protection to 32 V dc)
Current
131 mA
Nominal power supply
12 V dc
Consumption
1.57 W
Load NMEA 2000 (LEN)
3
Resolution
320(H) x 240(V) pixels
Size
3.45" TFT LCD display
Brightness
1,200 cd/m2
Height
115 mm
Width
110 mm
Connections
1 x plug SeaTalkng
More images

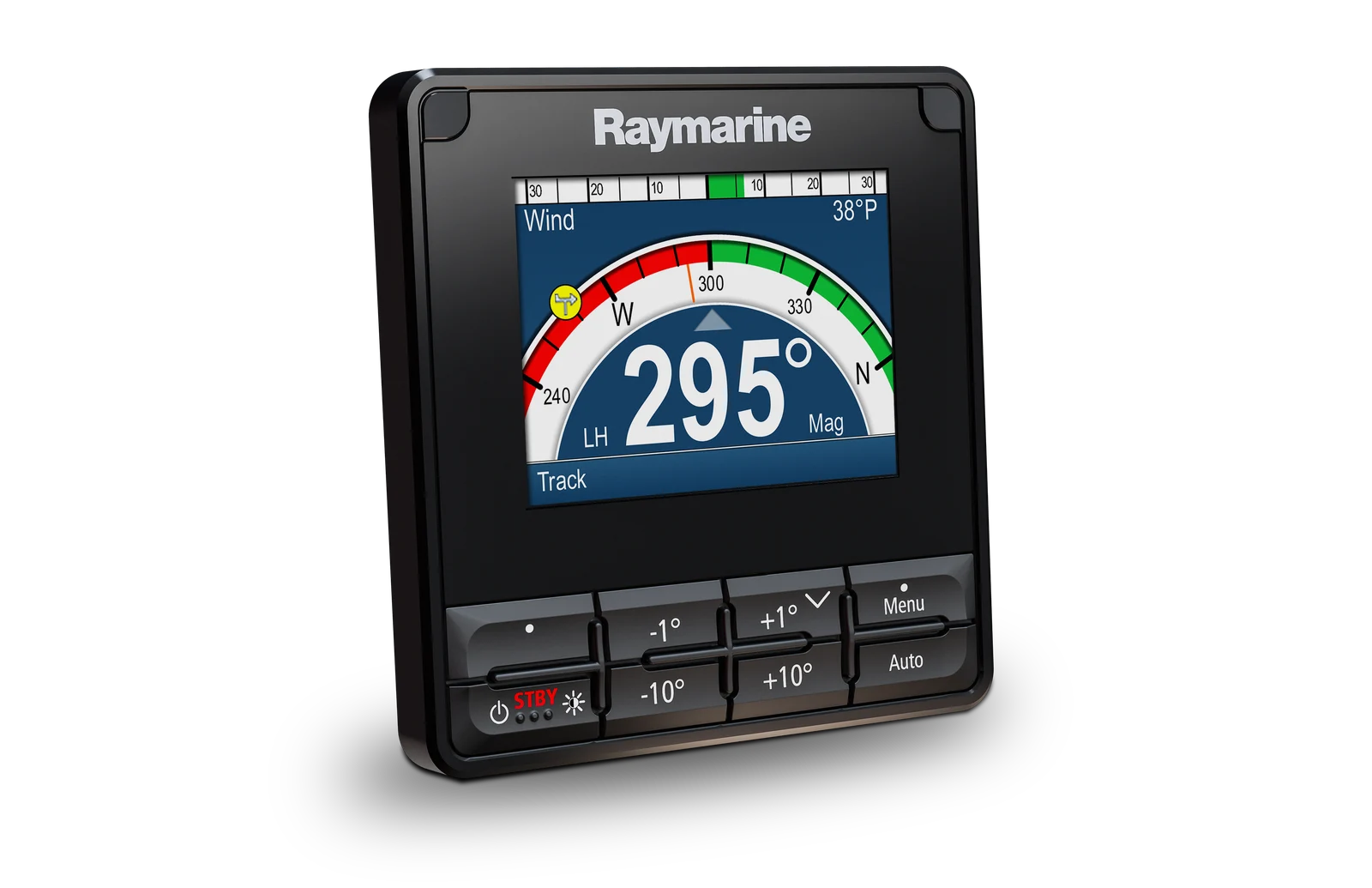

Image: Raymarine
Image: Raymarine
